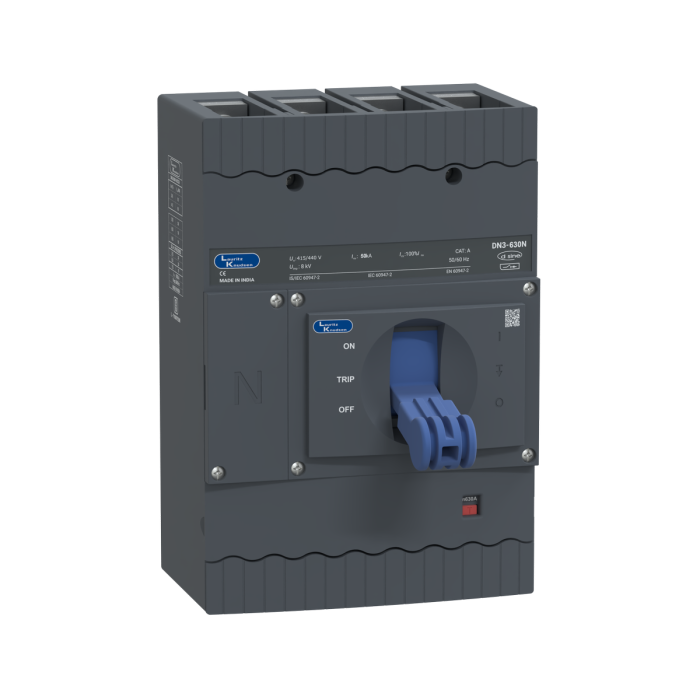

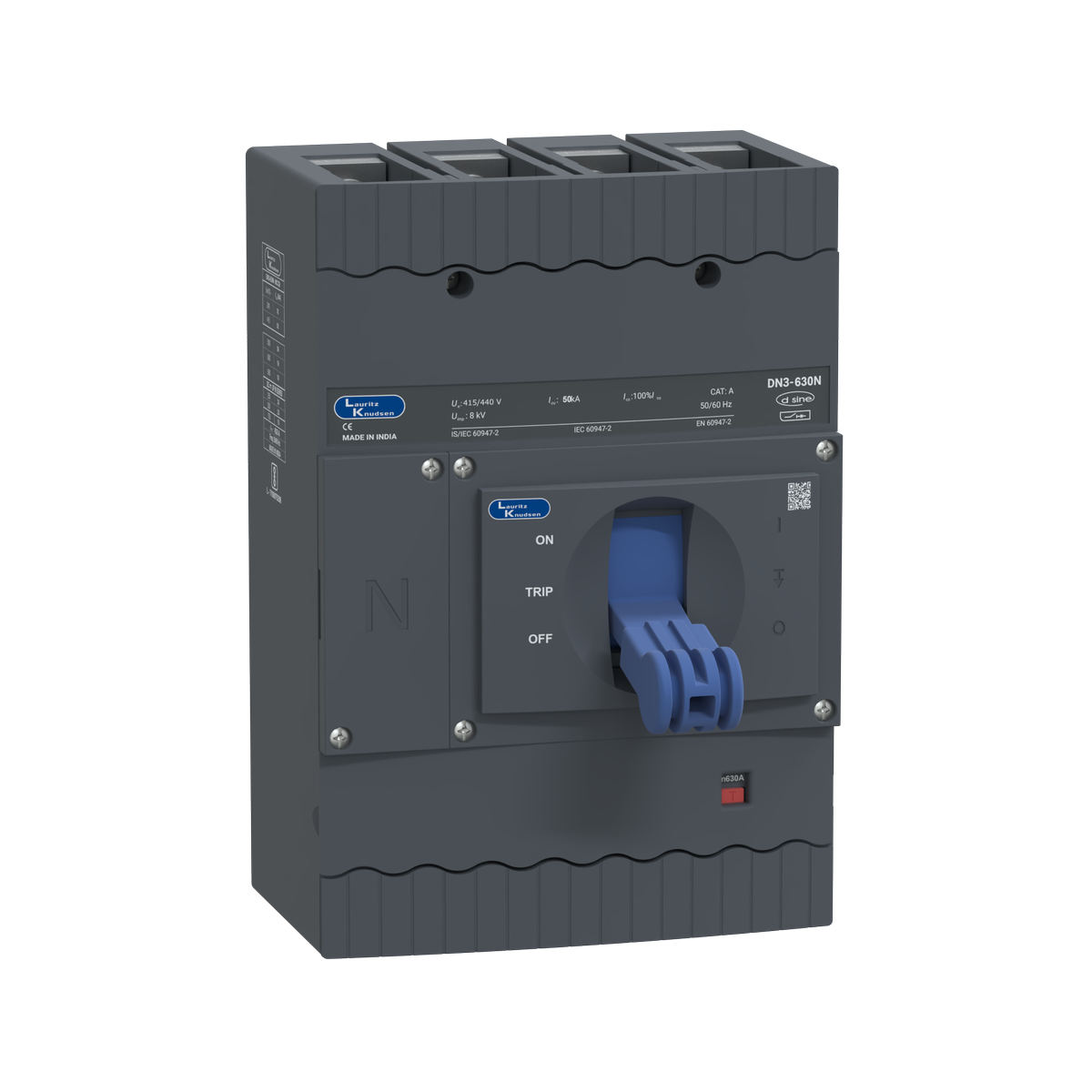

Lauritz Knudsen DN3-630N, MCCB, 4 Pole, 415V AC, 50kA Breaking Capacity, 630A | Thermal-Magnetic Release | IP40 Protection
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen DN3-630N, MCCB, 4 Pole, 415V AC, 50kA Breaking Capacity, 630A | Thermal-Magnetic Release | IP40 Protection
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen DN3-630N MCCB 630A 4 Pole 415V AC 50kA Thermal Magnetic is a heavy-duty molded case circuit breaker engineered to deliver advanced protection for high-capacity electrical distribution systems. Designed to safely interrupt overload & high short-circuit fault currents, it helps protect electrical equipment, transformers, motors, switchboards, power cables, & critical distribution networks from damage caused by abnormal operating conditions.
Featuring a 630A rated current, 4 Pole configuration, 415V AC operating voltage, & a high 50kA short-circuit breaking capacity, this MCCB is ideal for industrial facilities, utility installations, commercial buildings, infrastructure projects, & large-scale power distribution systems where elevated fault levels may occur & complete phase-neutral isolation is required.
The integrated thermal magnetic trip mechanism combines thermal overload protection & instantaneous magnetic short-circuit protection, ensuring rapid fault interruption, reliable protection, & enhanced operational safety.
How the Mechanism Works
The product functions by:
• Protecting circuits against overload conditions
• Interrupting high short-circuit fault currents
• Automatically disconnecting faulty circuits
• Protecting motors, transformers, & power cables
• Providing simultaneous phase & neutral isolation
• Supporting safe electrical distribution
• Preventing equipment damage from fault currents
• Improving electrical system reliability
It serves as a critical protection device for maintaining safe & efficient operation of high-capacity electrical systems.
Electrical Configuration
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: DN3-630N
• Current Rating: 630A
• Pole Configuration: 4 Pole
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 50kA
• Trip Type: Thermal Magnetic
• Application: Circuit Protection
• Suitable For: Three-Phase Electrical Systems with Neutral Protection
• Catalog Number: CM94104OOT1OG
Construction & Design
Designed for high-performance protection:
• Thermal magnetic trip mechanism
• 630A rated current capacity
• 4-pole protection configuration
• 50kA short-circuit breaking capability
• Durable molded case construction
• Reliable contact system
• Industrial-grade mechanical design
• Long operational lifespan
Safety & Protection
• Reliable overload protection
• Very high fault interruption capability
• Fast short-circuit protection
• Enhanced electrical safety
• Improved equipment protection
• Complete phase & neutral isolation
• Dependable fault-clearing performance
• Long-term operational reliability
Mounting & Durability
• Suitable for electrical distribution panels
• Compatible with industrial & commercial installations
• Rugged molded case construction
• High mechanical endurance
• High-quality manufacturing standards
• Designed for continuous operation
• Minimal maintenance requirements
• Suitable for demanding operating conditions
Application Domains
• Industrial Facilities
• Manufacturing Plants
• Commercial Buildings
• Utility Installations
• Infrastructure Projects
• Data Centers
• Electrical Distribution Panels
• Power Management Systems
Key Features
• DN3-630N MCCB series
• 630A current rating
• 4 Pole configuration
• 415V AC operation
• 50kA breaking capacity
• Thermal magnetic protection
• Overload protection
• Short-circuit protection
• Neutral isolation capability
• Industrial-grade construction
Applications
• Three-phase power distribution
• Main incomer protection
• Industrial machinery protection
• Transformer protection
• Commercial electrical systems
• Utility power networks
• Infrastructure electrical projects
• Equipment circuit protection
FAQs
1. What is the CM94104OOT1OG MCCB used for?
Ans: It is used for protecting electrical circuits & connected equipment against overloads & short circuits in high-capacity three-phase electrical systems requiring neutral protection.
2. What is the current rating of this MCCB?
Ans: The MCCB has a 630A current rating.
3. What does 4 Pole mean?
Ans: A 4 Pole MCCB protects & switches all three phase conductors along with the neutral conductor.
4. What is the breaking capacity of this MCCB?
Ans: It offers a 50kA short-circuit breaking capacity, enabling safe interruption of very high fault currents.
5. What type of protection does this MCCB provide?
Ans: It provides thermal overload protection & magnetic short-circuit protection through its thermal magnetic trip mechanism.
6. Where can this MCCB be installed?
Ans: It can be installed in electrical distribution boards, industrial switchboards, commercial facilities, utility installations, & infrastructure projects.
7. Why choose a 4 Pole MCCB?
Ans: A 4 Pole MCCB provides complete isolation of all phases & neutral, improving electrical safety, operational reliability, & maintenance efficiency.
8. Does it require frequent maintenance?
Ans: No, its durable molded case construction & reliable internal mechanism ensure long-term, low-maintenance operation under normal operating conditions.
Overview
| Rated Operational Current | 630 |
|---|---|
| Mechanical Life (No. of operating cycles) | 15000 |
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | TM |
| Rated Short Circuit Breaking capacity Icu(kA) | DN3-630N MCCB 630 4P 415V AC 50kA Thermal Magnetic 50/60 Hz |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 50kA |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 4000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 183.5 |
| Height(mm) | 266 |
| Depth(mm) | 111.5 |
