Lauritz Knudsen DN4N, MCCB, 4 Pole, 415V AC, 50kA Breaking Capacity, 1250A | Microprocessor Release MTX1.0 | IP40 Protection
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen DN4N, MCCB, 4 Pole, 415V AC, 50kA Breaking Capacity, 1250A | Microprocessor Release MTX1.0 | IP40 Protection
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

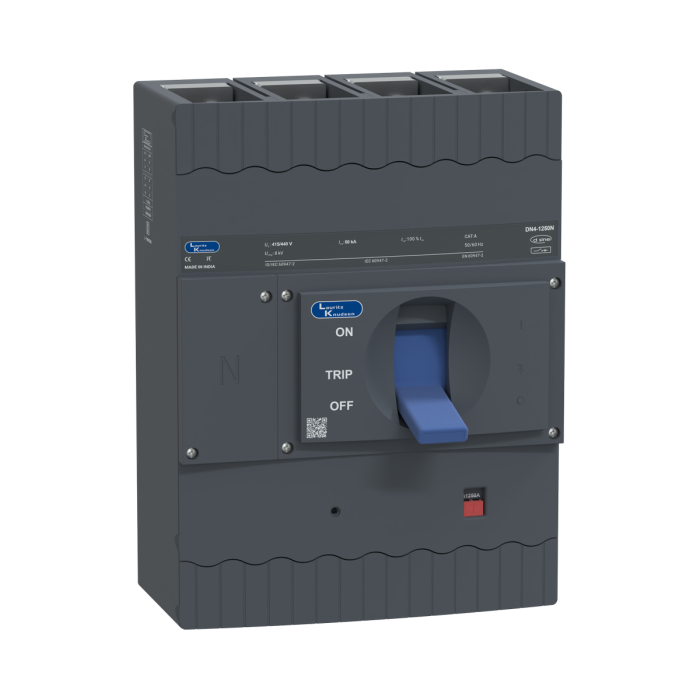

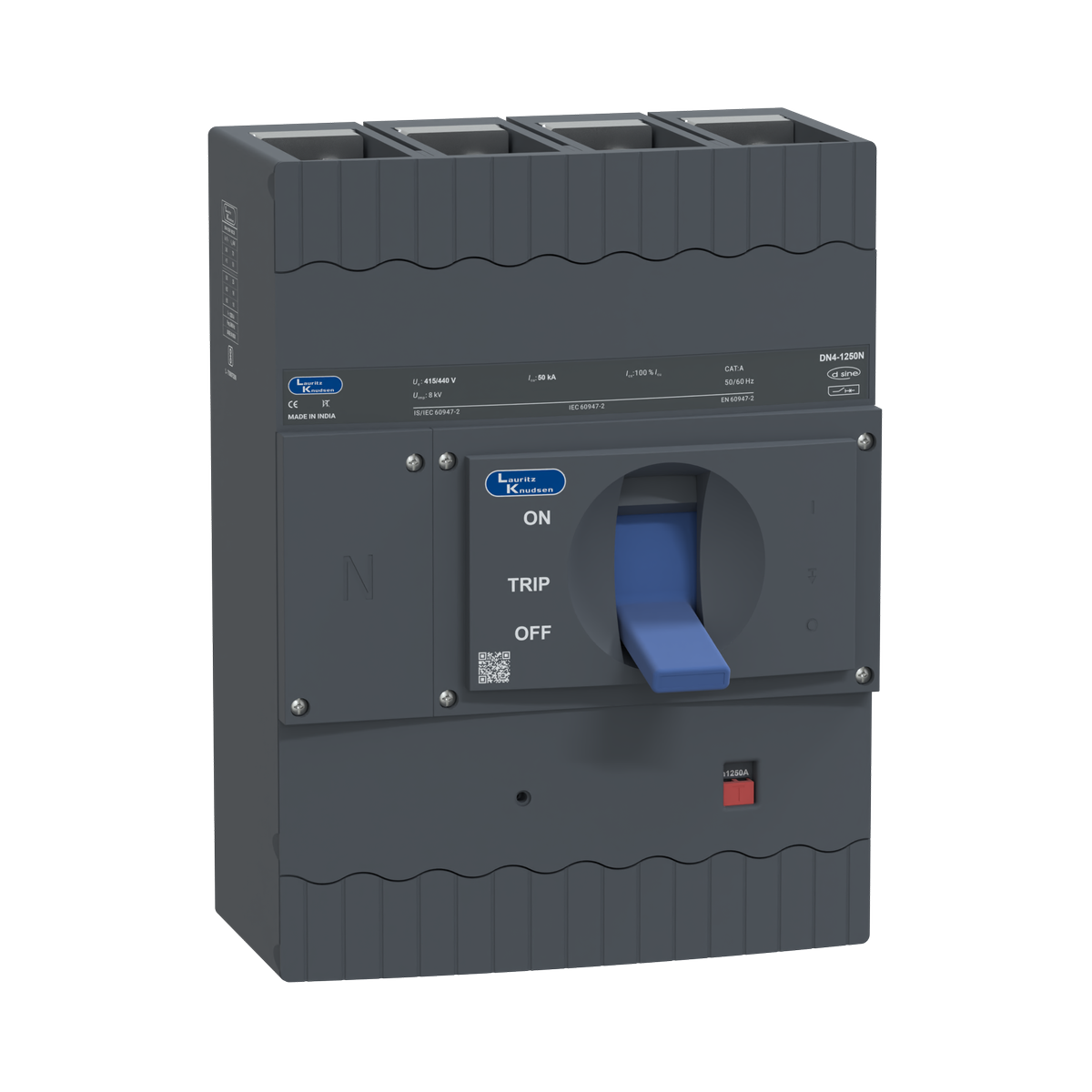

The Lauritz Knudsen DN4N MCCB 1250A 4 Pole 415V AC 50kA MTX1.0 Thermal Magnetic is a heavy-duty molded case circuit breaker engineered to provide advanced protection & switching for high-capacity electrical distribution systems. Designed to safeguard circuits against overloads & short-circuit faults, it helps protect electrical equipment, motors, transformers, cables, switchboards, & power distribution networks from damage caused by abnormal operating conditions.
Featuring a 1250A rated current, 4 Pole configuration, 415V AC operating voltage, & a high 50kA short-circuit breaking capacity, this MCCB is ideally suited for industrial facilities, manufacturing plants, commercial buildings, utility installations, infrastructure projects, & mission-critical electrical systems requiring reliable fault interruption & complete circuit isolation.
The integrated MTX1.0 thermal magnetic trip unit combines thermal overload protection & instantaneous magnetic short-circuit protection, ensuring reliable fault interruption, enhanced operational safety, & long-term electrical system performance.
How the Mechanism Works
The product functions by:
• Protecting circuits against overload conditions
• Interrupting high short-circuit fault currents
• Automatically disconnecting faulty circuits
• Protecting motors, transformers, cables, & electrical equipment
• Providing complete phase & neutral conductor isolation
• Supporting safe & reliable power distribution
• Reducing risks of electrical damage
• Delivering dependable fault-clearing performance
It serves as a critical protection device for maintaining the safety & continuity of electrical distribution systems.
Electrical Configuration
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: DN4N
• Current Rating: 1250A
• Pole Configuration: 4 Pole
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 50kA
• Trip Unit: MTX1.0 Thermal Magnetic
• Application: Circuit Protection & Switching
• Suitable For: Three-Phase & Neutral Electrical Systems
• Catalog Number: CM96113OOOOX1
Construction & Design
Designed for dependable protection:
• MTX1.0 thermal magnetic trip mechanism
• 1250A rated current capacity
• 4-pole protection configuration
• Neutral pole switching capability
• 50kA short-circuit breaking capability
• Durable molded case construction
• Reliable contact system
• Industrial-grade engineering with long service life
Safety & Protection
• Reliable overload protection
• Fast short-circuit interruption
• High fault-clearing capability
• Enhanced electrical safety
• Complete phase & neutral isolation
• Improved equipment protection
• Reduced operational downtime
• Consistent performance under demanding operating conditions
Mounting & Durability
• Suitable for electrical distribution panels
• Compatible with industrial & commercial switchboards
• Rugged molded case construction
• High mechanical endurance
• Quality manufacturing standards
• Designed for continuous operation
• Low maintenance requirements
• Suitable for demanding industrial environments
Application Domains
• Industrial Facilities
• Manufacturing Plants
• Commercial Buildings
• Utility Installations
• Infrastructure Projects
• Data Centers
• Electrical Distribution Panels
• Power Management Systems
Key Features
• DN4N MCCB series
• 1250A current rating
• 4 Pole configuration
• 415V AC operation
• 50kA breaking capacity
• MTX1.0 thermal magnetic trip unit
• Overload protection
• Short-circuit protection
• Neutral pole switching capability
• Long service life
Applications
• Three-phase power distribution
• Main incomer protection
• Industrial machinery protection
• Transformer protection
• Commercial electrical systems
• Utility power distribution networks
• Infrastructure electrical projects
• Equipment circuit protection
FAQs
1. What is the CM96113OOOOX1 MCCB used for?
Ans: It is used for protecting electrical circuits & connected equipment against overloads & short circuits in three-phase power distribution systems with neutral isolation capability.
2. What is the current rating of this MCCB?
Ans: The MCCB is rated at 1250A.
3. What does 4 Pole mean?
Ans: A 4 Pole MCCB protects & switches all three phase conductors along with the neutral conductor, ensuring complete circuit isolation & enhanced electrical safety.
4. What is the breaking capacity of this MCCB?
Ans: It offers a 50kA short-circuit breaking capacity, enabling safe interruption of high fault currents.
5. What is the MTX1.0 trip unit?
Ans: The MTX1.0 thermal magnetic trip unit provides thermal overload protection & instantaneous magnetic protection against short circuits.
6. Where can this MCCB be installed?
Ans: It can be installed in electrical distribution panels, industrial switchboards, manufacturing facilities, utility installations, commercial buildings, data centers, & infrastructure projects.
7. Is this MCCB suitable for high-capacity industrial power systems?
Ans: Yes, the 1250A current rating & 50kA fault-breaking capacity make it ideal for main incomers, large feeders, industrial distribution systems, utility networks, & critical power applications.
8. Does it require frequent maintenance?
Ans: No, its rugged molded case construction & reliable protection mechanism ensure long-term, low-maintenance performance under normal operating conditions.
Overview
| Rated Operational Current | 1250 |
|---|---|
| Mechanical Life (No. of operating cycles) | 20000 |
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | MTX1.0 |
| Rated Short Circuit Breaking capacity Icu(kA) | DN4N MCCB 1250 4P 415V AC 50kA MTX1.0 50/60 Hz |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 50kA |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 3000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 278 |
| Height(mm) | 370 |
| Depth(mm) | 143 |
