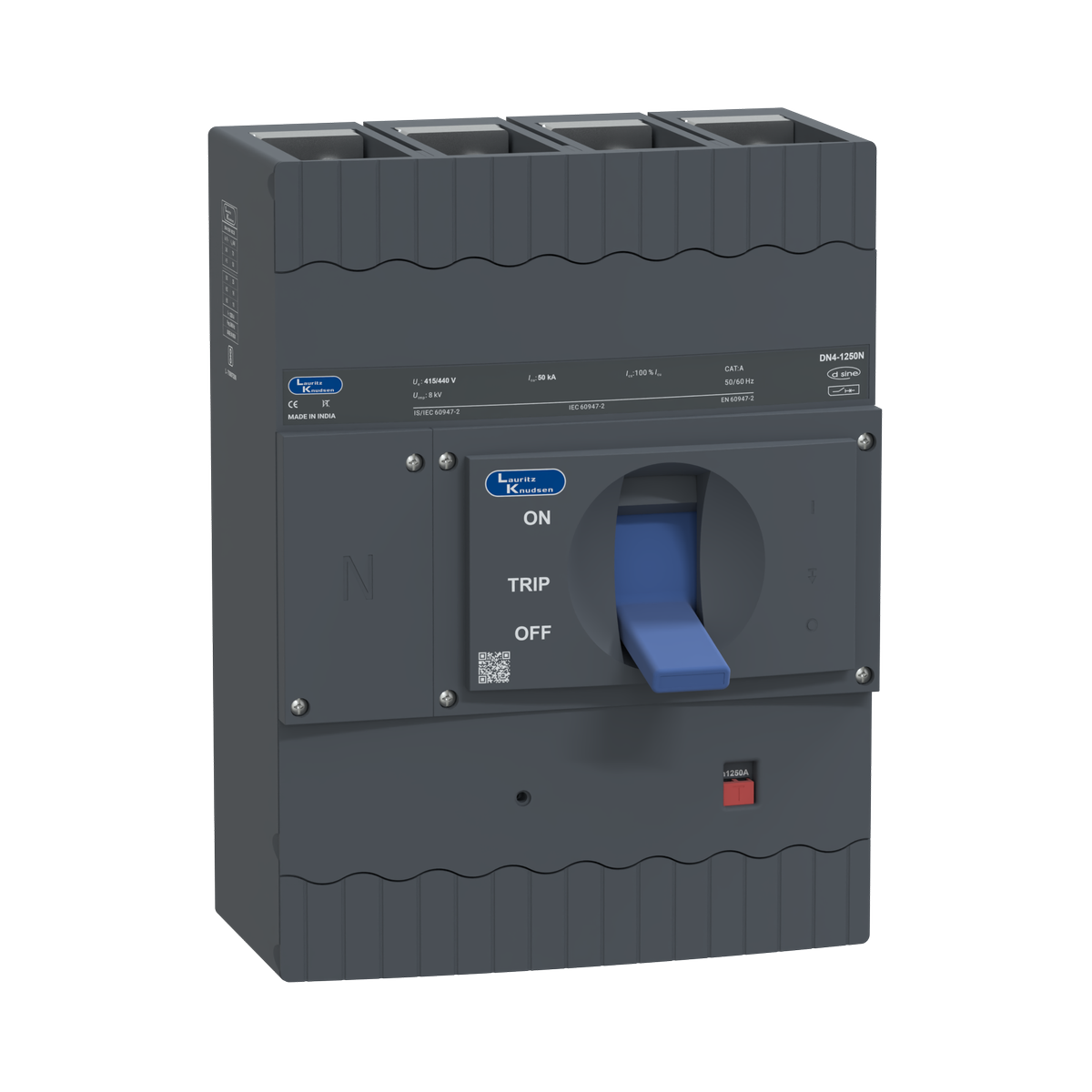

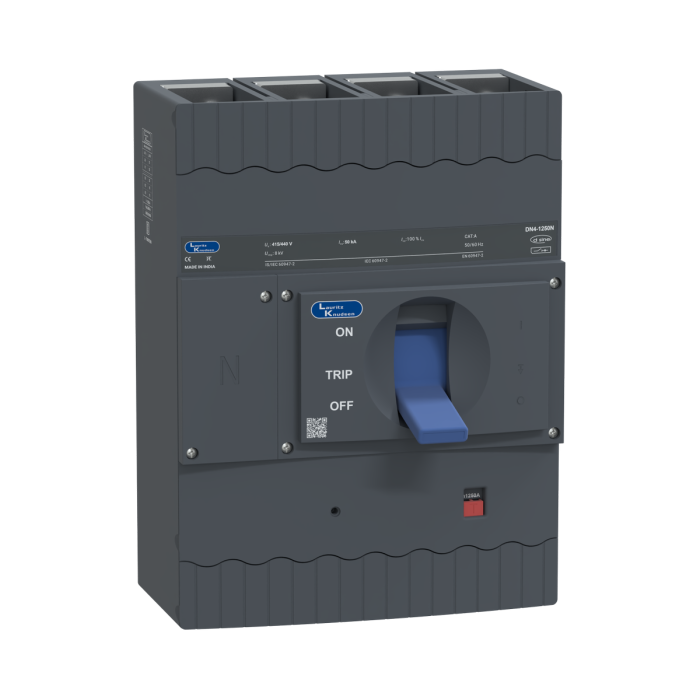

DN4N MCCB 1250 4P 415V AC 50kA MTX2.0 50/60 Hz

CM96113OOOOAG
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

CM96113OOOOAG dsineDN Series


The dsineDN Series

The dsineDN series is characterized by its state-of-the-art design, user-friendly features, and a wide spectrum of protection, making it the hallmark of the range. Recognized for its ergonomics, aesthetics, and compactness, it belongs to a new generation of MCCBs.

Specially designed and developed for extreme tropical conditions, it promises reliable performance in high ambient and humid environments. The dsineDN Series complies with the latest standards such as IS/IEC 60947-2, IEC 60947-2, and EN 60947-2. It also holds NABL accreditation, and the products conform to international standards with CE marking.

dsine, unfailingly, caters to the ever-evolving needs of customers, derived after in-depth analysis and customer feedback. Understanding our customers' requirements and demands, our contemporary range of MCCBs never falls short of ensuring complete customer satisfaction. Moreover, complemented by a host of accessories, the dsine range delivers comprehensive solutions to customer applications, ensuring operational safety, reliability, and versatility.

Product Details

Rated Operational Current 1250
Mechanical Life (No. of operating cycles) 20000
No. of Poles 4P
Rated Operational voltage (Ue) 415V AC
Rated Insulation Voltage Ui (V) 800 V
Conformance to Standards IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4
Rated impulse withstand voltage (Uimp) 8 kV
Operational Frequency (Hz) 50/60 Hz
Release Type MTX2.0
Rated Short Circuit Breaking capacity Icu(kA) DN4N MCCB 1250 4P 415V AC 50kA MTX2.0 50/60 Hz
Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC 50kA
Ambient temperature -5°C to 55°C
Suitable for isolation Yes
Load-line bias No
Electrical Life (Operating Cycles) 3000
IP Protection IP40
Pollution Degree III
Width(mm) 278
Height(mm) 370
Depth(mm) 143
