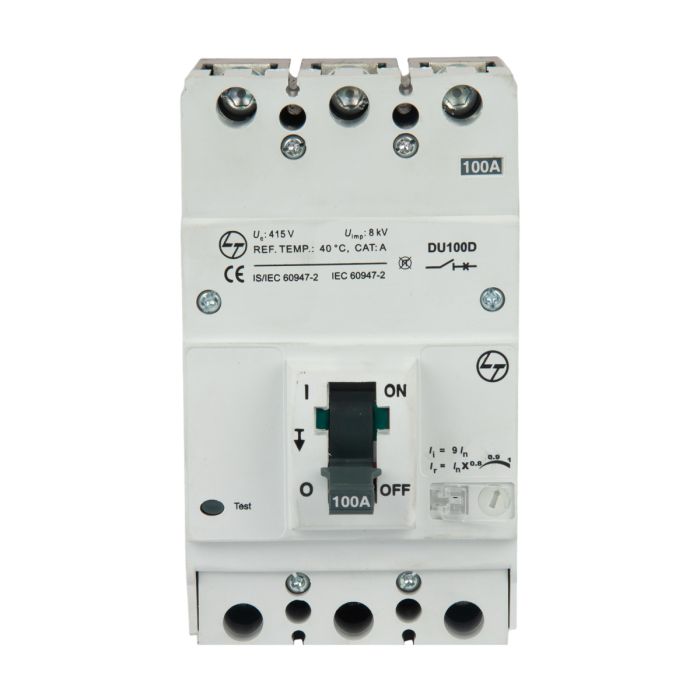

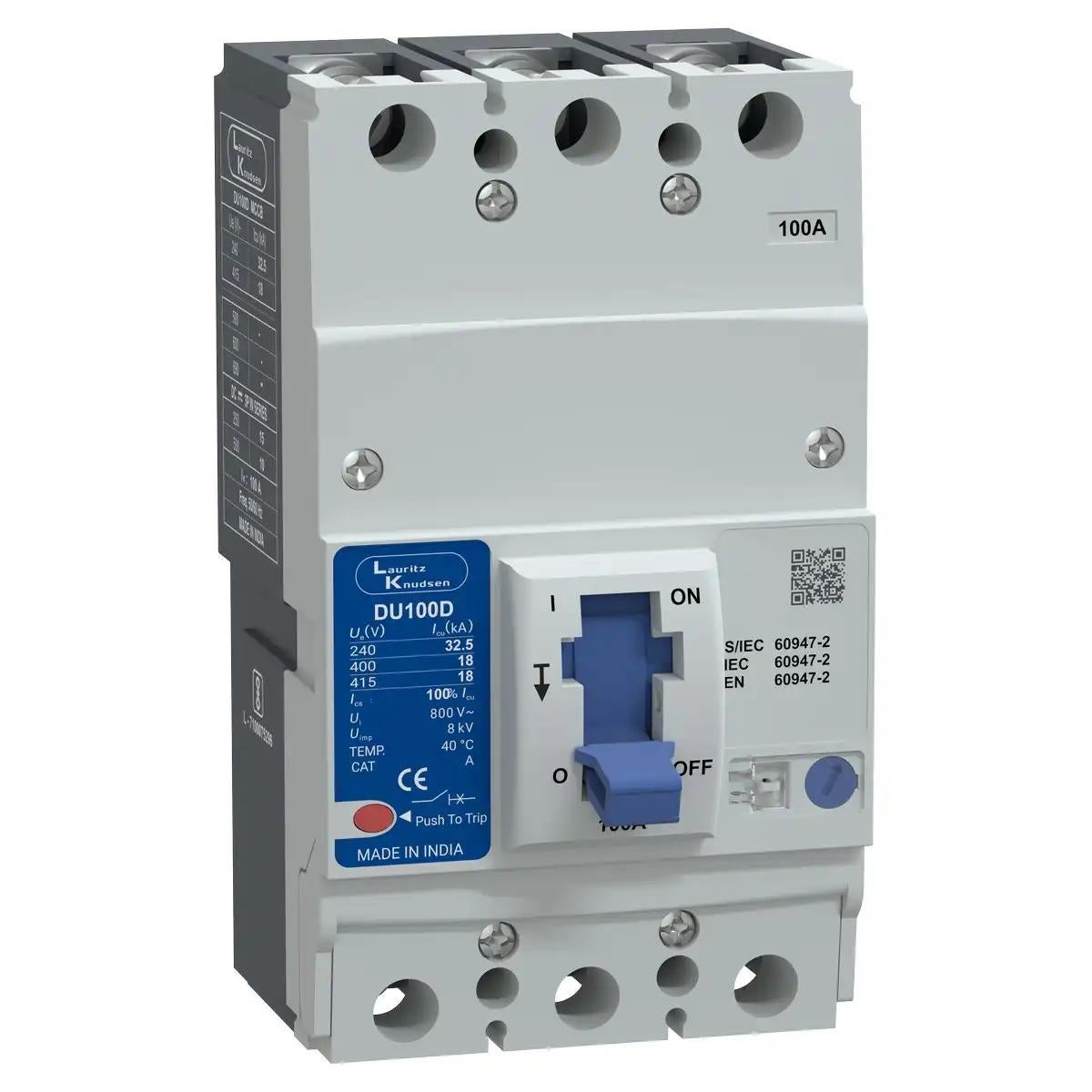

Lauritz Knudsen DU100D, MCCB, 3 Pole, 415V AC, 18kA Breaking Capacity, 100A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Ics=100% of Icu
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen DU100D, MCCB, 3 Pole, 415V AC, 18kA Breaking Capacity, 100A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Ics=100% of Icu
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen CM90517OOKO from the DU100D series is a dependable 3 Pole Moulded Case Circuit Breaker (MCCB) designed to provide efficient & economical circuit protection for residential, commercial, & light industrial electrical installations. Rated at 100A & 415V AC, this MCCB safeguards electrical circuits, power distribution systems, & connected equipment against overloads & short-circuit faults while ensuring safe & reliable operation.
The breaker incorporates an advanced thermal-magnetic trip mechanism that delivers dual-layer protection against electrical faults. The thermal protection element provides time-delayed tripping during overload conditions, helping prevent overheating & damage to cables, conductors, & connected electrical equipment caused by sustained overcurrent situations. The magnetic protection element responds instantaneously during short-circuit faults, rapidly isolating the affected circuit & minimizing the risk of electrical damage & operational disruptions.
With a breaking capacity of 18kA, the DU100D MCCB is suitable for installations with low to medium fault levels. This fault interruption capability delivers dependable protection & system stability while providing a cost-effective solution for standard electrical distribution applications where higher fault interruption ratings are not required.
The MCCB is designed for operation on standard 50/60 Hz electrical systems, ensuring compatibility with a wide range of residential, commercial, & light industrial power networks. Its 3 Pole configuration supports three-phase electrical systems commonly found in commercial buildings, apartment complexes, workshops, distribution panels, & light industrial facilities.
Manufactured using durable insulating materials & precision-engineered operating components, the breaker offers reliable switching performance, excellent mechanical durability, & long service life. Its compact & rugged construction allows easy installation in switchboards, control panels, & distribution boards while optimizing available panel space.
The DU100D series is widely recognized for delivering reliable protection, safety, affordability, & consistent performance, making it a practical choice for installations requiring effective circuit protection without the need for higher breaking capacity MCCBs.
How the Mechanism Works
The product functions by:
• Continuously monitoring electrical current flowing through the circuit
• Detecting overload conditions using a thermal trip mechanism
• Providing delayed tripping during prolonged overcurrent situations
• Detecting short-circuit faults using a magnetic trip system
• Instantly disconnecting the circuit during fault conditions
• Protecting cables, conductors, & connected equipment from damage
• Preventing overheating caused by excessive current flow
• Improving electrical safety & system reliability
• Supporting stable power distribution performance
• Reducing the risk of equipment failures & downtime
It serves as a critical protection device for low & medium-capacity electrical distribution systems.
Electrical Configuration
• Product Type: Moulded Case Circuit Breaker (MCCB)
• Model: CM90517OOKO
• Series: DU100D
• Pole Configuration: 3 Pole
• Rated Current: 100A
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 18kA
• Trip Unit Type: Thermal Magnetic
• Mounting Type: Panel Mounted
• Primary Function: Overload & Short-Circuit Protection
• Application: Power Distribution & Equipment Protection
Construction & Design
Designed for durability & dependable operation:
• Compact MCCB construction
• High-strength moulded insulating enclosure
• Precision-engineered operating mechanism
• Thermal-magnetic trip technology
• Durable contact system
• Efficient arc interruption chamber
• Industrial-grade insulation materials
• Secure terminal connection arrangement
• Space-saving panel design
• Long operational service life
Safety & Protection
• Reliable overload protection
• Instantaneous short-circuit protection
• 18kA fault interruption capability
• Enhanced electrical safety
• Improved equipment protection
• Reduced risk of electrical system damage
• Stable & dependable operation
• Reliable power distribution performance
• Lower maintenance requirements
• Cost-effective protection solution
Mounting & Durability
• Easy installation in electrical panels
• Suitable for switchboards & distribution boards
• Compact footprint for efficient panel integration
• Secure mounting arrangement
• Durable construction for everyday operation
• Designed for continuous-duty applications
• Resistant to electrical & mechanical stresses
• Reliable performance in commercial & light industrial environments
• Long operational lifespan
• Minimal maintenance requirements
Application Domains
• Residential Electrical Panels
• Commercial Buildings
• Light Industrial Installations
• Distribution Boards
• Electrical Switchgear Systems
• Building Electrical Infrastructure
• Three-Phase Distribution Networks
• Utility Electrical Systems
• Electrical Control Panels
• Low to Medium Load Applications
Key Features
• Rated current of 100A
• 3 Pole configuration for three-phase systems
• Rated voltage of 415V AC
• Breaking capacity of 18kA
• Thermal-magnetic trip protection
• Reliable overload & short-circuit protection
• Suitable for 50/60 Hz operation
• Compact & rugged design for easy panel installation
• Cost-effective solution for standard applications
• Dependable performance in low to medium fault-level systems
• Easy panel integration
• Long service life & reliable operation
Applications
• Residential & commercial distribution panels
• Light industrial electrical systems
• Switchgear panels & control boards
• Building electrical infrastructure
• Equipment & machinery protection
• General power distribution systems
• Electrical control panels
• Equipment protection circuits
• Three-phase electrical installations
• Commercial power distribution systems
FAQs
1. What is this MCCB used for?
Ans: It is used to protect electrical circuits, wiring, & connected equipment from overload & short-circuit faults.
2. What is the current rating of this MCCB?
Ans: The MCCB has a rated current of 100A.
3. What type of protection does it provide?
Ans: It provides thermal protection against overload conditions & magnetic protection against short-circuit faults.
4. What is the breaking capacity of this MCCB?
Ans: The breaker has a breaking capacity of 18kA for safe interruption of fault currents.
5. Is this suitable for industrial use?
Ans: Yes, it is suitable for light industrial, commercial, & residential electrical applications.
6. What is the advantage of DU100D series?
Ans: The DU100D series offers a cost-effective & reliable protection solution for standard applications with moderate fault levels, making it ideal for residential, commercial, & light industrial installations.
7. Is this MCCB suitable for three-phase systems?
Ans: Yes, the 3 Pole configuration is specifically designed for three-phase electrical installations.
8. What are the benefits of thermal-magnetic protection?
Ans: Thermal-magnetic protection combines delayed overload protection with instantaneous short-circuit protection, ensuring comprehensive circuit safety, reliable fault clearance, & dependable system operation.
Overview
| Rated Operational Current (A) | 100A |
|---|---|
| No. of Poles | 3P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 18KA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 100% |
| Ambient temperature | -5°C to 55°C |
| Conformance to Standards | IS 60947-2, IEC 60947-2 & EN 60947-2 |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 8000 |
| Mechanical Life (Operating Cycles) | 40000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 75 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
| Discount Percentage | Between 0-10 % |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.

Reviews
Description
About the Product
The Lauritz Knudsen CM90517OOKO from the DU100D series is a dependable 3 Pole Moulded Case Circuit Breaker (MCCB) designed to provide efficient & economical circuit protection for residential, commercial, & light industrial electrical installations. Rated at 100A & 415V AC, this MCCB safeguards electrical circuits, power distribution systems, & connected equipment against overloads & short-circuit faults while ensuring safe & reliable operation.
The breaker incorporates an advanced thermal-magnetic trip mechanism that delivers dual-layer protection against electrical faults. The thermal protection element provides time-delayed tripping during overload conditions, helping prevent overheating & damage to cables, conductors, & connected electrical equipment caused by sustained overcurrent situations. The magnetic protection element responds instantaneously during short-circuit faults, rapidly isolating the affected circuit & minimizing the risk of electrical damage & operational disruptions.
With a breaking capacity of 18kA, the DU100D MCCB is suitable for installations with low to medium fault levels. This fault interruption capability delivers dependable protection & system stability while providing a cost-effective solution for standard electrical distribution applications where higher fault interruption ratings are not required.
The MCCB is designed for operation on standard 50/60 Hz electrical systems, ensuring compatibility with a wide range of residential, commercial, & light industrial power networks. Its 3 Pole configuration supports three-phase electrical systems commonly found in commercial buildings, apartment complexes, workshops, distribution panels, & light industrial facilities.
Manufactured using durable insulating materials & precision-engineered operating components, the breaker offers reliable switching performance, excellent mechanical durability, & long service life. Its compact & rugged construction allows easy installation in switchboards, control panels, & distribution boards while optimizing available panel space.
The DU100D series is widely recognized for delivering reliable protection, safety, affordability, & consistent performance, making it a practical choice for installations requiring effective circuit protection without the need for higher breaking capacity MCCBs.
How the Mechanism Works
The product functions by:
• Continuously monitoring electrical current flowing through the circuit
• Detecting overload conditions using a thermal trip mechanism
• Providing delayed tripping during prolonged overcurrent situations
• Detecting short-circuit faults using a magnetic trip system
• Instantly disconnecting the circuit during fault conditions
• Protecting cables, conductors, & connected equipment from damage
• Preventing overheating caused by excessive current flow
• Improving electrical safety & system reliability
• Supporting stable power distribution performance
• Reducing the risk of equipment failures & downtime
It serves as a critical protection device for low & medium-capacity electrical distribution systems.
Electrical Configuration
• Product Type: Moulded Case Circuit Breaker (MCCB)
• Model: CM90517OOKO
• Series: DU100D
• Pole Configuration: 3 Pole
• Rated Current: 100A
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 18kA
• Trip Unit Type: Thermal Magnetic
• Mounting Type: Panel Mounted
• Primary Function: Overload & Short-Circuit Protection
• Application: Power Distribution & Equipment Protection
Construction & Design
Designed for durability & dependable operation:
• Compact MCCB construction
• High-strength moulded insulating enclosure
• Precision-engineered operating mechanism
• Thermal-magnetic trip technology
• Durable contact system
• Efficient arc interruption chamber
• Industrial-grade insulation materials
• Secure terminal connection arrangement
• Space-saving panel design
• Long operational service life
Safety & Protection
• Reliable overload protection
• Instantaneous short-circuit protection
• 18kA fault interruption capability
• Enhanced electrical safety
• Improved equipment protection
• Reduced risk of electrical system damage
• Stable & dependable operation
• Reliable power distribution performance
• Lower maintenance requirements
• Cost-effective protection solution
Mounting & Durability
• Easy installation in electrical panels
• Suitable for switchboards & distribution boards
• Compact footprint for efficient panel integration
• Secure mounting arrangement
• Durable construction for everyday operation
• Designed for continuous-duty applications
• Resistant to electrical & mechanical stresses
• Reliable performance in commercial & light industrial environments
• Long operational lifespan
• Minimal maintenance requirements
Application Domains
• Residential Electrical Panels
• Commercial Buildings
• Light Industrial Installations
• Distribution Boards
• Electrical Switchgear Systems
• Building Electrical Infrastructure
• Three-Phase Distribution Networks
• Utility Electrical Systems
• Electrical Control Panels
• Low to Medium Load Applications
Key Features
• Rated current of 100A
• 3 Pole configuration for three-phase systems
• Rated voltage of 415V AC
• Breaking capacity of 18kA
• Thermal-magnetic trip protection
• Reliable overload & short-circuit protection
• Suitable for 50/60 Hz operation
• Compact & rugged design for easy panel installation
• Cost-effective solution for standard applications
• Dependable performance in low to medium fault-level systems
• Easy panel integration
• Long service life & reliable operation
Applications
• Residential & commercial distribution panels
• Light industrial electrical systems
• Switchgear panels & control boards
• Building electrical infrastructure
• Equipment & machinery protection
• General power distribution systems
• Electrical control panels
• Equipment protection circuits
• Three-phase electrical installations
• Commercial power distribution systems
FAQs
1. What is this MCCB used for?
Ans: It is used to protect electrical circuits, wiring, & connected equipment from overload & short-circuit faults.
2. What is the current rating of this MCCB?
Ans: The MCCB has a rated current of 100A.
3. What type of protection does it provide?
Ans: It provides thermal protection against overload conditions & magnetic protection against short-circuit faults.
4. What is the breaking capacity of this MCCB?
Ans: The breaker has a breaking capacity of 18kA for safe interruption of fault currents.
5. Is this suitable for industrial use?
Ans: Yes, it is suitable for light industrial, commercial, & residential electrical applications.
6. What is the advantage of DU100D series?
Ans: The DU100D series offers a cost-effective & reliable protection solution for standard applications with moderate fault levels, making it ideal for residential, commercial, & light industrial installations.
7. Is this MCCB suitable for three-phase systems?
Ans: Yes, the 3 Pole configuration is specifically designed for three-phase electrical installations.
8. What are the benefits of thermal-magnetic protection?
Ans: Thermal-magnetic protection combines delayed overload protection with instantaneous short-circuit protection, ensuring comprehensive circuit safety, reliable fault clearance, & dependable system operation.
Overview
| Rated Operational Current (A) | 100A |
|---|---|
| No. of Poles | 3P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 18KA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 100% |
| Ambient temperature | -5°C to 55°C |
| Conformance to Standards | IS 60947-2, IEC 60947-2 & EN 60947-2 |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 8000 |
| Mechanical Life (Operating Cycles) | 40000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 75 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
| Discount Percentage | Between 0-10 % |
