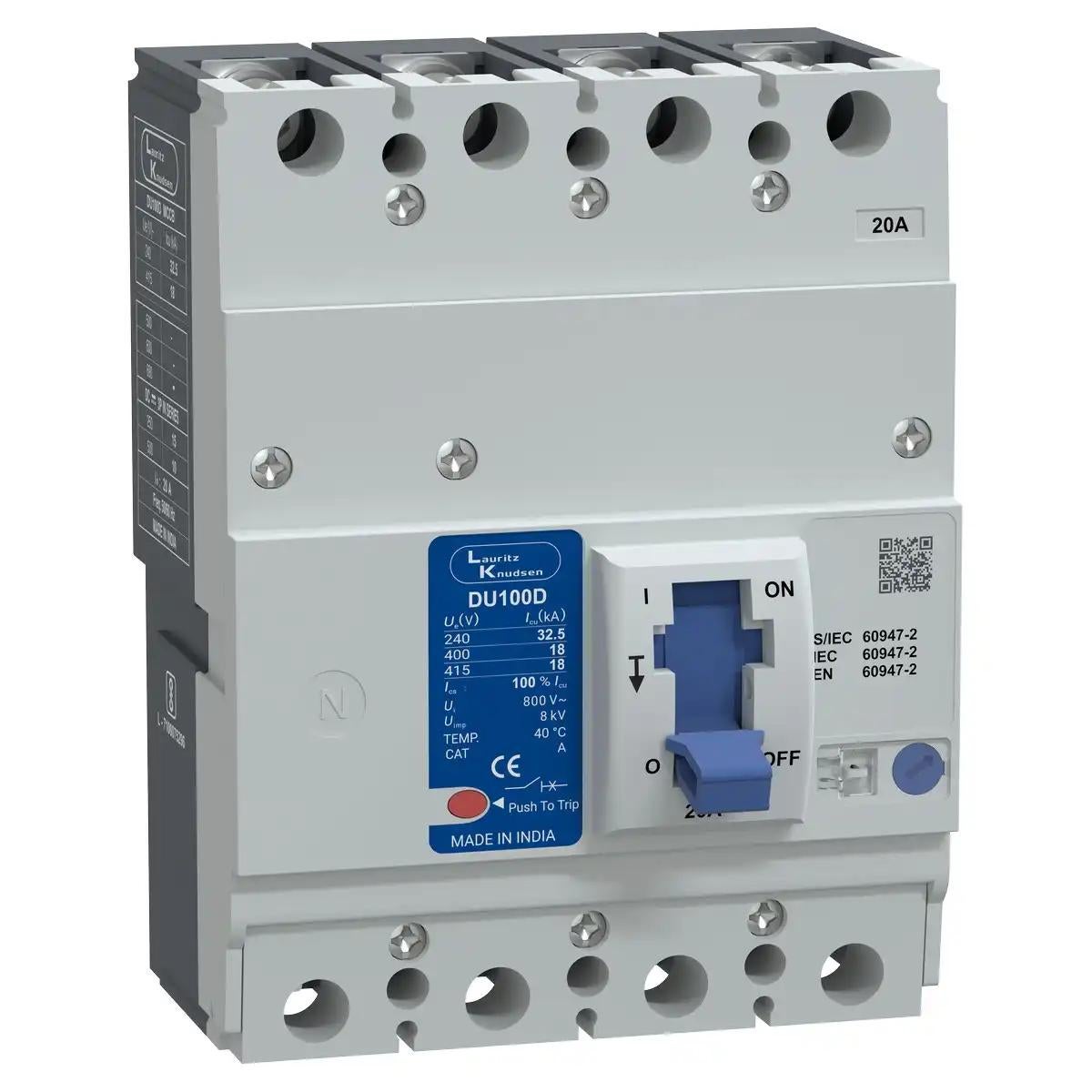

Lauritz Knudsen DU100D MCCB 20A 4P 415V AC 18KA Thermal Magnetic 50/60 Hz
SKU :
CM90518OOCO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CM90518OOCO
Lauritz Knudsen DU100D MCCB 20A 4P 415V AC 18KA Thermal Magnetic 50/60 Hz
Further Offers for this product:
No sellers found for this product.
₹6,920.00
₹6,532.48
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Out of stock
Lauritz Knudsen DU100D MCCB 20A 4P 415V AC 18KA Thermal Magnetic 50/60 Hz
₹6,920.00
₹6,532.48
- Description
- Specifications
- Documents
- Reviews
Description
- Lauritz Knudsen The DU Series, a new generation of MCCBs, stands out due to its state-of-the-art design, contemporary user-friendly features, ergonomics, aesthetics and compactness.
- DU Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2.
- The range is specially designed for tropical conditions, ensuring reliable performance at high ambient and humid environments.
- The range can satisfy the most demanding system requirements.
- The DU Series, having a wide range of accessories, ensures operational safety, reliability and versatility.
- The products conform to international standards, carry CE marking.
Overview
| Rated Operational Current (A) | 20A |
|---|---|
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 18KA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 100% |
| Ambient temperature | -5°C to 55°C |
| Conformance to Standards | IS 60947-2, IEC 60947-2 & EN 60947-2 |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 8000 |
| Mechanical Life (Operating Cycles) | 40000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 100 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
| Discount Percentage | Between 0-10 % |
