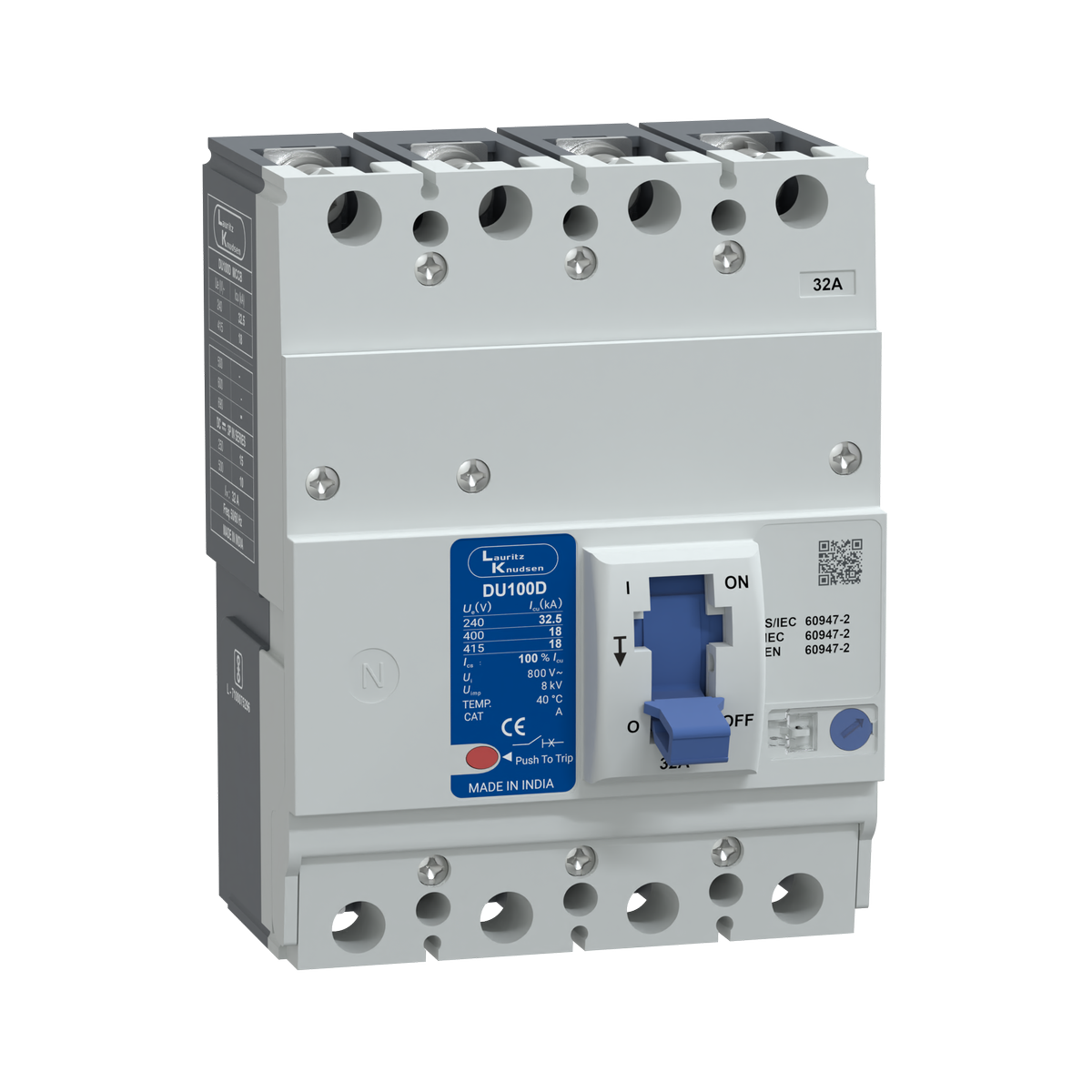

DU100D MCCB 32A 4P 415V AC 18KA Thermal Magnetic 50/60 Hz

CM90518OOEO
5 (1 reviews)

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • The DU Series, a new generation of MCCBs, stands out due to its state-of-the-art design, contemporary user-friendly features, ergonomics, aesthetics and compactness.
  • DU Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2.
  • The range is specially designed for tropical conditions, ensuring reliable performance at high ambient and humid environments.
  • The range can satisfy the most demanding system requirements.
  • The DU Series, having a wide range of accessories, ensures operational safety, reliability and versatility.
  • The products conform to international standards, carry CE marking.

Product Details

Rated Operational Current (A) 32A
No. of Poles 4P
Rated Operational voltage (Ue) 415V AC
Rated Insulation Voltage Ui (V) 800 V
Rated impulse withstand voltage (Uimp) 8 kV
Operational Frequency (Hz) 50/60 Hz
Release Type Thermal Magnetic
Rated Short Circuit Breaking capacity Icu(kA) 18KA
Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC 100%
Ambient temperature -5°C to 55°C
Conformance to Standards IS 60947-2, IEC 60947-2 & EN 60947-2
Suitable for isolation Yes
Load-line bias No
Electrical Life (Operating Cycles) 8000
Mechanical Life (Operating Cycles) 40000
IP Protection IP40
Pollution Degree III
Width(mm) 100
Height(mm) 130
Depth(mm) 60
