The modern world is powered by an intricate web of electrical systems. These systems are made up of various devices that ensure a safe and reliable supply of power.
Lauritz Knudsen DU250C, MCCB, 3 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
SKU :
CM90631OOMO
Lauritz Knudsen DU250C, MCCB, 3 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
Cat. No./SKU:
CM90631OOMO
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CM90631OOMO
Lauritz Knudsen DU250C, MCCB, 3 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
M.R.P.:
Incl. Tax
Free shipping on orders above ₹1000
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Minimum quantity allowed :
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
M.R.P.:
₹11,900.00
₹10,195.20
M.R.P.:
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Minimum quantity allowed :
Lauritz Knudsen DU250C, MCCB, 3 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
M.R.P.:
₹11,900.00
₹10,195.20
M.R.P.:
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

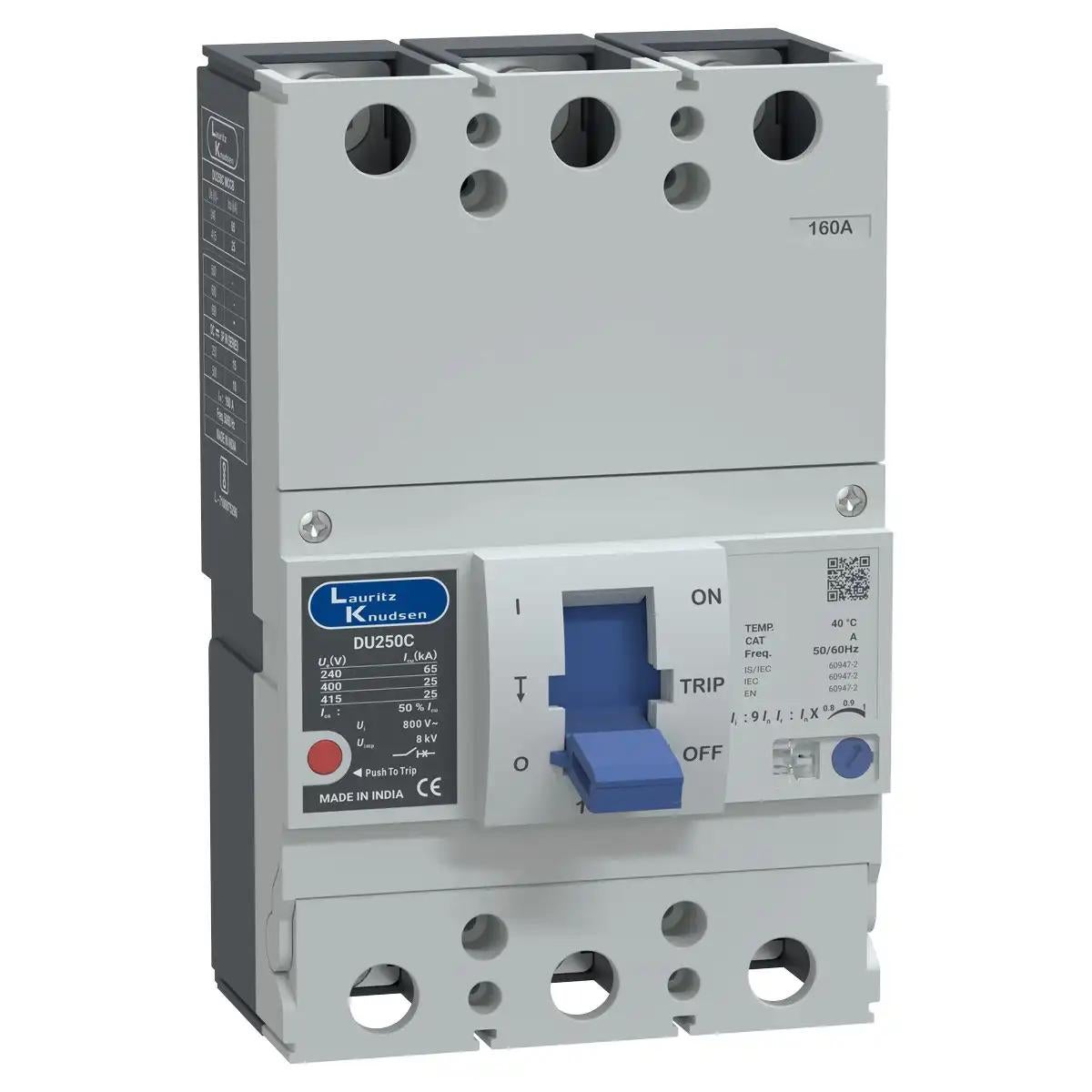

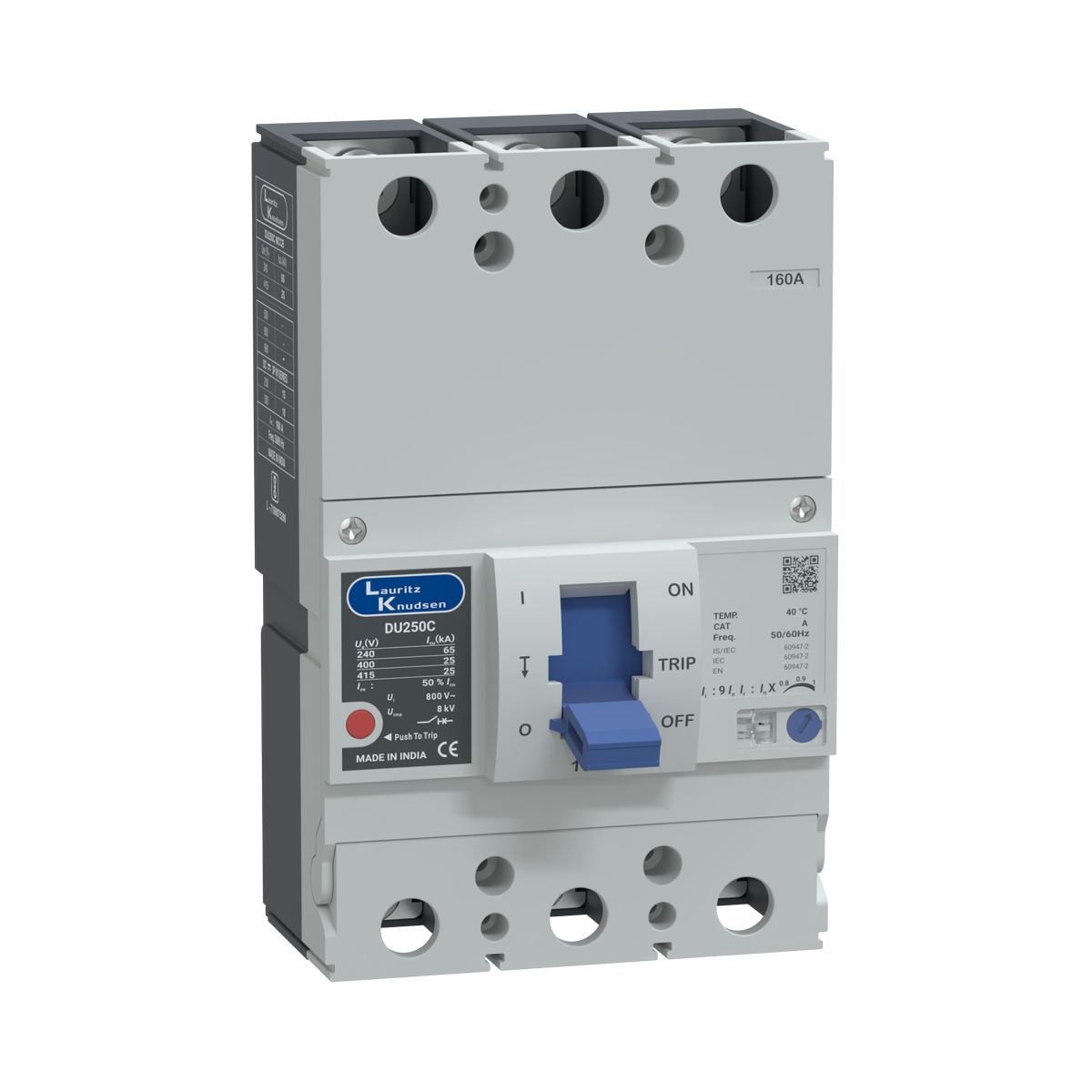

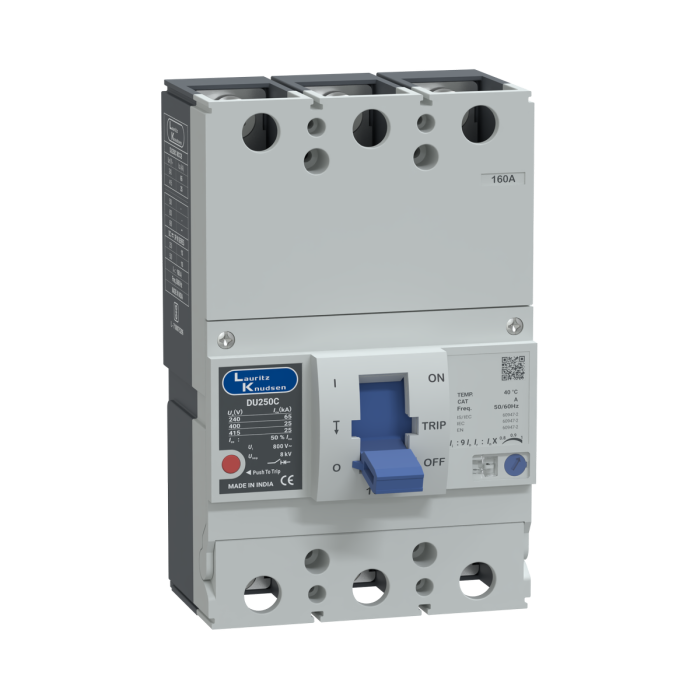

The Lauritz Knudsen CM90631OOMO from the DU250C series is a high-performance 3 Pole Moulded Case Circuit Breaker (MCCB) engineered to provide reliable circuit protection, efficient fault interruption, & cost-effective performance for industrial, commercial, & infrastructure electrical systems. Rated at 160A & 415V AC, this MCCB safeguards electrical circuits, equipment, & power distribution networks against overloads & short-circuit faults while ensuring dependable operation under demanding load conditions.
The breaker incorporates an advanced thermal-magnetic trip mechanism that delivers dual-layer protection against electrical abnormalities. The thermal protection element provides time-delayed tripping during overload conditions, preventing overheating & protecting cables, conductors, & connected equipment from damage caused by prolonged overcurrent. The magnetic protection element responds instantaneously to short-circuit faults, rapidly isolating the affected circuit to minimize system damage & maintain operational safety.
With a breaking capacity of 25kA, the DU250C MCCB offers a balanced level of fault interruption capability that positions it between standard-duty & high-performance MCCBs. This makes it an excellent choice for installations requiring enhanced protection against moderate to high fault currents without the additional cost associated with higher-capacity breakers. The 25kA rating ensures safe interruption of fault currents while improving system reliability & equipment protection.
The 3 Pole configuration is specifically designed for three-phase electrical systems commonly found in industrial machinery, commercial facilities, utility installations, & power distribution networks. Operating at 50/60 Hz, the breaker is fully compatible with standard electrical systems across various applications.
Constructed with a rugged industrial-grade housing & precision-engineered internal components, the DU250C series delivers excellent mechanical durability, dependable switching performance, & long operational life. Its robust design ensures reliable operation in challenging environments while maintaining consistent protection performance.
The compact construction enables easy integration into switchgear assemblies, distribution boards, control panels, & motor control centers (MCCs), helping optimize space utilization while simplifying installation & maintenance activities.
This 160A MCCB is an ideal solution for applications requiring mid-range fault protection, dependable operation, enhanced safety, & an effective balance between performance & affordability.
How the Mechanism Works
The product functions by:
• Continuously monitoring electrical current flowing through the circuit
• Detecting overload conditions using a thermal trip mechanism
• Providing delayed tripping during sustained overcurrent situations
• Detecting short-circuit faults using a magnetic trip system
• Instantly disconnecting the circuit during severe fault conditions
• Protecting cables, motors, switchgear, & connected equipment from damage
• Preventing overheating caused by excessive current flow
• Safely interrupting fault currents up to 25kA
• Supporting stable & reliable power distribution
• Enhancing overall electrical safety & operational continuity
It serves as a critical protection device for industrial & commercial power distribution systems.
Electrical Configuration
• Product Type: Moulded Case Circuit Breaker (MCCB)
• Model: CM90631OOMO
• Series: DU250C
• Pole Configuration: 3 Pole
• Rated Current: 160A
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 25kA
• Trip Unit Type: Thermal Magnetic
• Mounting Type: Panel Mounted
• Primary Function: Overload & Short-Circuit Protection
• Application: Power Distribution & Equipment Protection
Construction & Design
Designed for durability & dependable operation:
• Compact MCCB construction
• High-strength moulded insulating enclosure
• Precision-engineered operating mechanism
• Thermal-magnetic trip technology
• Heavy-duty contact system
• Efficient arc interruption chamber
• Industrial-grade insulation materials
• Secure terminal connection arrangement
• Space-efficient panel design
• Long operational service life
Safety & Protection
• Reliable overload protection
• Instantaneous short-circuit protection
• 25kA fault interruption capability
• Enhanced electrical safety
• Improved equipment protection
• Reduced risk of electrical system damage
• Stable & dependable operation
• Reliable power distribution performance
• Balanced protection & cost efficiency
• Reduced maintenance requirements
Mounting & Durability
• Easy installation in electrical panels
• Suitable for switchgear & distribution boards
• Compact footprint for efficient panel integration
• Secure mounting arrangement
• Rugged industrial-grade construction
• Designed for continuous-duty applications
• Resistant to electrical & mechanical stresses
• Reliable performance in demanding environments
• Long operational lifespan
• Minimal maintenance requirements
Application Domains
• Industrial Power Distribution Systems
• Commercial Electrical Installations
• Switchgear Panels & Control Systems
• Motor Control Centers (MCCs)
• Medium-Load Machinery Protection
• Equipment Protection Systems
• Infrastructure & Utility Installations
• Manufacturing Facilities
• Three-Phase Power Networks
• General Industrial Applications
Key Features
• Rated current of 160A
• 3 Pole configuration for three-phase systems
• Rated voltage of 415V AC
• Breaking capacity of 25kA
• Thermal-magnetic trip protection
• Reliable overload & short-circuit protection
• Suitable for 50/60 Hz operation
• Rugged & durable construction
• Compact design for panel integration
• Balanced solution for performance & cost
• Reliable operation in moderate to high fault-level systems
• Long service life & dependable performance
Applications
• Industrial power distribution systems
• Commercial electrical installations
• Switchgear panels & control systems
• Motor Control Centers (MCCs)
• Medium-load machinery & equipment protection
• Infrastructure & utility systems
• Manufacturing facilities
• Distribution board assemblies
• Three-phase electrical installations
• General-purpose power distribution networks
FAQs
1. What is this MCCB used for?
Ans: It is used to protect electrical circuits, wiring, & connected equipment from overload & short-circuit faults.
2. What is the current rating of this MCCB?
Ans: The MCCB has a rated current of 160A.
3. What type of protection does it provide?
Ans: It provides thermal protection against overload conditions & magnetic protection against short-circuit faults.
4. What is the breaking capacity of this MCCB?
Ans: The breaker has a breaking capacity of 25kA for safe interruption of fault currents.
5. Where does DU250C fit in the product range?
Ans: The DU250C series falls between entry-level 18kA MCCBs & high-performance 30kA+ MCCBs, offering a balanced mid-range protection solution.
6. Where is this MCCB typically used?
Ans: It is commonly used in industrial, commercial, infrastructure, & utility installations requiring moderate to high fault protection capability.
7. Is this MCCB suitable for three-phase systems?
Ans: Yes, the 3 Pole configuration is specifically designed for three-phase electrical installations.
8. What are the benefits of a 25kA breaking capacity?
Ans: A 25kA breaking capacity provides enhanced fault interruption performance, improved equipment protection, increased system reliability, & a cost-effective balance between standard & high-capacity MCCBs.
Overview
| Rated Operational Current (A) | 160A |
|---|---|
| No. of Poles | 3P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 25kA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 50% |
| Ambient temperature | -5°C to 55°C |
| Conformance to Standards | IS 60947-2, IEC 60947-2 & EN 60947-2 |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 5000 |
| Mechanical Life (Operating Cycles) | 15000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 105 |
| Height(mm) | 165 |
| Depth(mm) | 60 |
| Discount Percentage | Between 0-10 % |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects...
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
