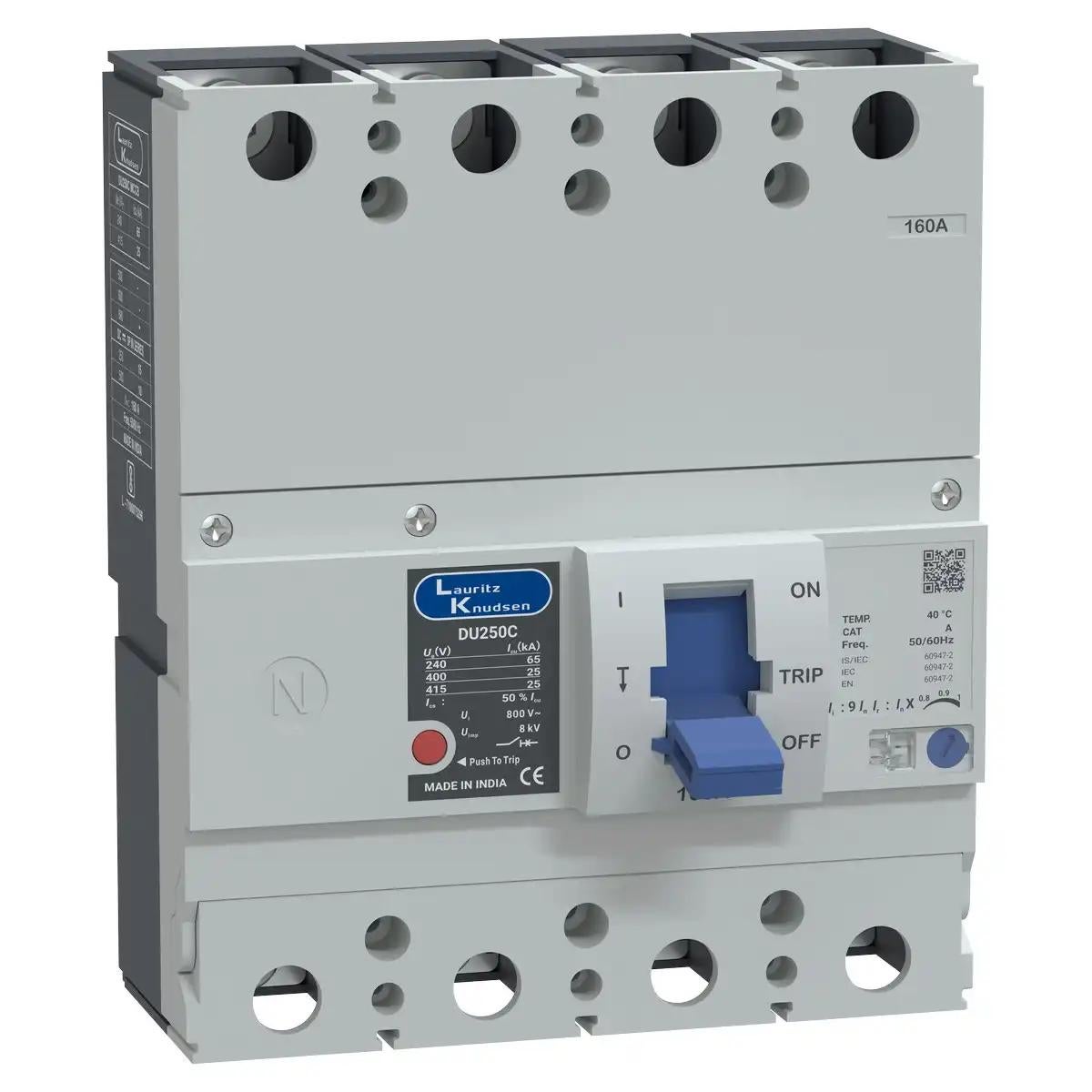

Lauritz Knudsen DU250C, MCCB, 4 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen CM90634OOMO from the DU250C series is a high-performance 4 Pole Moulded Case Circuit Breaker (MCCB) engineered to provide reliable circuit protection, complete electrical isolation, & cost-effective performance for industrial, commercial, & infrastructure electrical systems. Rated at 160A & 415V AC, this MCCB safeguards power distribution networks, electrical equipment, & critical installations against overloads, short-circuit faults, & abnormal operating conditions while ensuring dependable system performance & safety.
The breaker incorporates an advanced thermal-magnetic trip mechanism that delivers dual-layer protection against electrical faults. The thermal protection element provides time-delayed tripping during overload conditions, helping prevent overheating & protecting cables, conductors, motors, transformers, & connected equipment from damage caused by prolonged overcurrent. The magnetic protection element responds instantaneously to short-circuit faults, rapidly disconnecting the affected circuit & minimizing equipment damage, downtime, & operational risks.
The 4 Pole configuration includes a dedicated neutral pole, allowing simultaneous isolation of all three phases & the neutral conductor. This feature enhances electrical safety during maintenance activities, fault isolation procedures, servicing operations, & emergency shutdowns. Complete phase & neutral isolation is particularly important in installations where full electrical disconnection is required to ensure personnel safety & equipment protection.
With a breaking capacity of 25kA, the DU250C MCCB offers an ideal balance between entry-level & high-performance MCCBs. Positioned above standard 18kA breakers & below premium 30kA+ models, it delivers enhanced fault interruption capability while maintaining cost efficiency. This makes it particularly suitable for applications with moderate to high fault levels where reliable protection & long-term system stability are critical requirements.
Designed for operation on 50/60 Hz electrical systems, the MCCB is compatible with standard global power networks. Its rugged industrial-grade construction ensures excellent mechanical durability, reliable switching performance, & long operational life even in demanding environments.
The compact & structured design enables easy integration into switchgear assemblies, distribution boards, electrical panels, & motor control centers (MCCs), helping optimize panel space while simplifying installation & maintenance.
This 160A 4 Pole MCCB is an ideal solution for applications requiring moderate to high current handling capability, complete phase & neutral isolation, dependable fault protection, & an effective balance between performance & affordability.
How the Mechanism Works
The product functions by:
• Continuously monitoring electrical current flowing through all poles
• Detecting overload conditions using a thermal trip mechanism
• Providing delayed tripping during sustained overcurrent situations
• Detecting short-circuit faults using a magnetic trip system
• Instantly disconnecting the circuit during severe fault conditions
• Protecting cables, motors, transformers, switchgear, & connected equipment from damage
• Isolating all three phases & the neutral conductor simultaneously
• Preventing overheating caused by excessive current flow
• Safely interrupting fault currents up to 25kA
• Enhancing electrical safety & operational continuity
It serves as a critical protection & isolation device for industrial & commercial power distribution systems.
Electrical Configuration
• Product Type: Moulded Case Circuit Breaker (MCCB)
• Model: CM90634OOMO
• Series: DU250C
• Pole Configuration: 4 Pole
• Rated Current: 160A
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 25kA
• Trip Unit Type: Thermal Magnetic
• Neutral Pole: Included
• Mounting Type: Panel Mounted
• Primary Function: Overload, Short-Circuit Protection & Circuit Isolation
• Application: Power Distribution & Equipment Protection
Construction & Design
Designed for durability & dependable operation:
• Compact MCCB construction
• High-strength moulded insulating enclosure
• Precision-engineered operating mechanism
• Thermal-magnetic trip technology
• Four-pole switching architecture
• Integrated neutral pole design
• Heavy-duty contact system
• Efficient arc interruption chamber
• Industrial-grade insulation materials
• Long operational service life
Safety & Protection
• Reliable overload protection
• Instantaneous short-circuit protection
• Complete phase & neutral isolation
• 25kA fault interruption capability
• Enhanced electrical safety
• Improved protection for connected equipment
• Reduced risk of electrical system damage
• Stable & dependable operation
• Reliable power distribution performance
• Balanced protection & cost efficiency
Mounting & Durability
• Easy installation in electrical panels
• Suitable for switchgear & distribution boards
• Compact footprint for efficient panel integration
• Secure mounting arrangement
• Rugged industrial-grade construction
• Designed for continuous-duty operation
• Resistant to electrical & mechanical stresses
• Reliable performance in demanding environments
• Long operational lifespan
• Minimal maintenance requirements
Application Domains
• Industrial Power Distribution Systems
• Commercial Electrical Installations
• Switchgear Panels & Control Systems
• Motor Control Centers (MCCs)
• Medium to High-Load Equipment Protection
• Infrastructure & Utility Installations
• Manufacturing Facilities
• Three-Phase Distribution Networks
• Electrical Safety & Isolation Systems
• General Industrial Applications
Key Features
• Rated current of 160A
• 4 Pole configuration for three-phase plus neutral systems
• Rated voltage of 415V AC
• Breaking capacity of 25kA
• Thermal-magnetic trip protection
• Reliable overload & short-circuit protection
• Neutral pole for complete circuit isolation
• Suitable for 50/60 Hz operation
• Rugged & durable construction
• Compact design for panel integration
• Balanced performance between cost & protection
• Long service life & dependable operation
Applications
• Industrial power distribution systems
• Commercial electrical installations
• Switchgear panels & control systems
• Motor Control Centers (MCCs)
• Medium to high-load equipment protection
• Infrastructure & utility systems
• Manufacturing facilities
• Power distribution networks
• Electrical isolation applications
• Three-phase power systems with neutral isolation
FAQs
1. What is the purpose of a 4 Pole MCCB?
Ans: It protects all three phases & includes a neutral pole, enabling complete circuit isolation for improved safety & maintenance.
2. What is the current rating of this MCCB?
Ans: The MCCB has a rated current of 160A.
3. What type of protection does it provide?
Ans: It provides thermal protection against overload conditions & magnetic protection against short-circuit faults.
4. What is the breaking capacity of this MCCB?
Ans: The breaker has a breaking capacity of 25kA for safe interruption of moderate to high fault currents.
5. Where does DU250C fit in the product range?
Ans: The DU250C series provides a mid-range 25kA breaking capacity positioned between economy-class 18kA MCCBs & high-performance 30kA+ MCCBs.
6. Where is this MCCB typically used?
Ans: It is commonly used in industrial, commercial, infrastructure, & utility systems requiring moderate to high fault protection along with complete phase & neutral isolation.
7. Why is neutral isolation important?
Ans: Neutral isolation ensures complete circuit disconnection during maintenance, servicing, & emergency shutdowns, improving overall electrical safety.
8. What are the benefits of a 25kA breaking capacity?
Ans: A 25kA breaking capacity provides enhanced fault interruption capability, improved equipment protection, greater system reliability, & a balanced combination of performance & cost efficiency.
Overview
| Rated Operational Current (A) | 160A |
|---|---|
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 25kA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 50% |
| Ambient temperature | -5°C to 55°C |
| Conformance to Standards | IS 60947-2, IEC 60947-2 & EN 60947-2 |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 5000 |
| Mechanical Life (Operating Cycles) | 15000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 140 |
| Height(mm) | 165 |
| Depth(mm) | 60 |
| Discount Percentage | Between 0-10 % |
