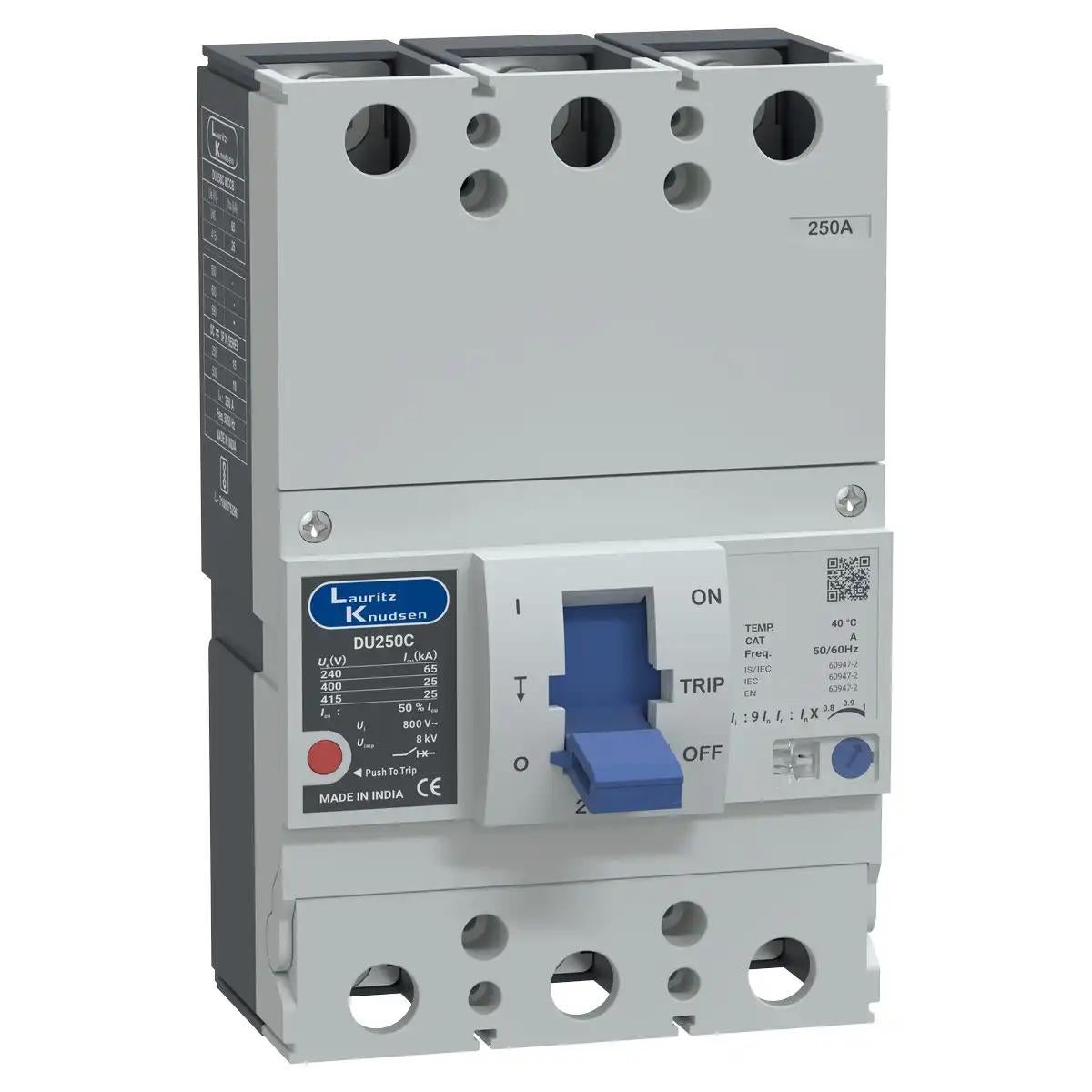

DU250C MCCB 250A 3P 415V AC 25kA Thermal Magnetic 50/60 Hz

CM90631OOPO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • The DU Series, a new generation of MCCBs, stands out due to its state-of-the-art design, contemporary user-friendly features, ergonomics, aesthetics and compactness.
  • DU Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2.
  • The range is specially designed for tropical conditions, ensuring reliable performance at high ambient and humid environments.
  • The range can satisfy the most demanding system requirements.
  • The DU Series, having a wide range of accessories, ensures operational safety, reliability and versatility.
  • The products conform to international standards, carry CE marking.

Product Details

Rated Operational Current (A) 250A
No. of Poles 3P
Rated Operational voltage (Ue) 415V AC
Rated Insulation Voltage Ui (V) 800 V
Rated impulse withstand voltage (Uimp) 8 kV
Operational Frequency (Hz) 50/60 Hz
Release Type Thermal Magnetic
Rated Short Circuit Breaking capacity Icu(kA) 25kA
Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC 50%
Ambient temperature -5°C to 55°C
Conformance to Standards IS 60947-2, IEC 60947-2 & EN 60947-2
Suitable for isolation Yes
Load-line bias No
Electrical Life (Operating Cycles) 3000
Mechanical Life (Operating Cycles) 15000
IP Protection IP40
Pollution Degree III
Width(mm) 105
Height(mm) 165
Depth(mm) 60
Discount Percentage Between 0-10 %

No Related Posts

Seller Information

Documents

Extended Warranty

Reviews

Write Your Own Review
This is a required field
You're reviewing: DU250C MCCB 250A 3P 415V AC 25kA Thermal Magnetic 50/60 Hz
* Required Field
loader
Loading...

check-circle You submitted your review for moderation.

Customer Who Purchased This Product Also Bought

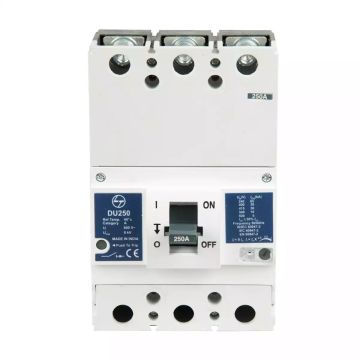

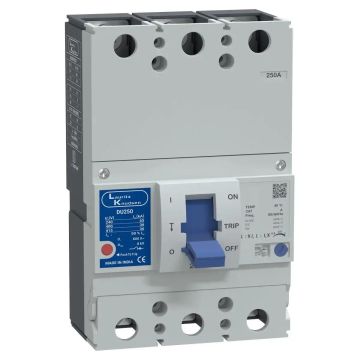

DU250 MCCB 250A 3P 415V AC 30kA Thermal Magnetic 50/60 Hz
