DY125U MCCB 125A 3P 415V AC 10kA Thermal Magnetic 50/60 Hz with Spreader Terminals

EM90983OOLO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • The DY Series, a new generation of MCCBs, stands out due to its state-of-the-art design, contemporary user-friendly features, ergonomics, aesthetics and compactness.
  • DY Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2.
  • The range is specially designed for tropical conditions, ensuring reliable performance at high ambient and humid environments.
  • The range can satisfy the most demanding system requirements.
  • The DY Series, having a wide range of accessories, ensures operational safety, reliability and versatility.
  • The products conform to international standards, carry CE marking.

Product Details

Rated Operational Current (A) 125A
No. of Poles 3P
Rated Operational voltage (Ue) 415V AC
Rated Insulation Voltage Ui (V) 800 V
Rated impulse withstand voltage (Uimp) 8 kV
Operational Frequency (Hz) 50/60 Hz
Release Type Thermal Magnetic
Rated Short Circuit Breaking capacity Icu(kA) 10kA
Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC 100%
Ambient temperature -5°C to 55°C
Conformance to Standards IS 60947-2, IEC 60947-2 & EN 60947-2
Suitable for isolation Yes
Load-line bias No
Electrical Life (Operating Cycles) 5000
Mechanical Life (Operating Cycles) 30000
IP Protection IP40
Pollution Degree III
Width(mm) 75
Height(mm) 130
Depth(mm) 60
Discount Percentage Between 0-10 %

Related Posts (3)

An online guide to Moulded Case Circuit Breaker (MCCB)

An online guide to Moulded Case Circuit Breaker (MCCB)

The modern world is powered by an intricate web of electrical systems. These systems are made up of various devices that ensure a safe and reliable supply of power.
What Is the Difference Between MCB, MCCB, DB, RCB, RCD, RCCB, RCBO, and ELCB Breakers?

What Is the Difference Between MCB, MCCB, DB, RCB, RCD, RCCB, RCBO, and ELCB Breakers?

Circuit breakers are electrical devices that control the flow of current in electrical circuits. When there’s an abnormal flow of current through the circuits, circuit breakers, in order to ensure the safety and integrity of electrical systems, stop the current flow.
What’s the difference between MCB and MCCB?

What’s the difference between MCB and MCCB?

Miniature Circuit Breakers (MCBs) and Moulded Case Circuit Breakers (MCCBs) belong to the category of electrical protection devices known as circuit breakers. Circuit breakers are crucial components in electrical systems designed to protect against overcurrents, short circuits, and other electrical faults. They work by interrupting the flow of electrical current when certain abnormal conditions are detected.

Seller Information

Documents

Extended Warranty

Reviews

Write Your Own Review
This is a required field
You're reviewing: DY125U MCCB 125A 3P 415V AC 10kA Thermal Magnetic 50/60 Hz with Spreader Terminals
* Required Field
loader
Loading...

check-circle You submitted your review for moderation.

Customer Who Purchased This Product Also Bought

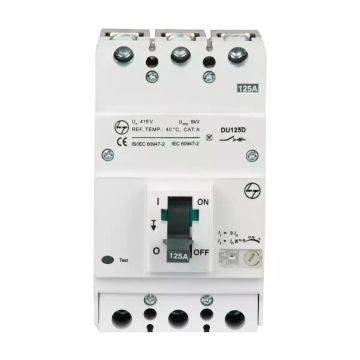

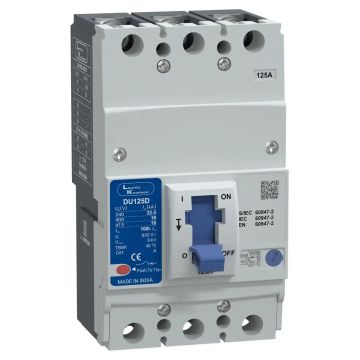

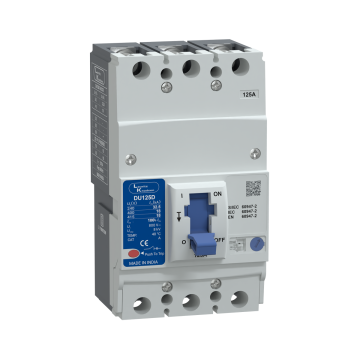

DU125D MCCB 125A 3P 415V AC 18KA Thermal Magnetic 50/60 Hz
