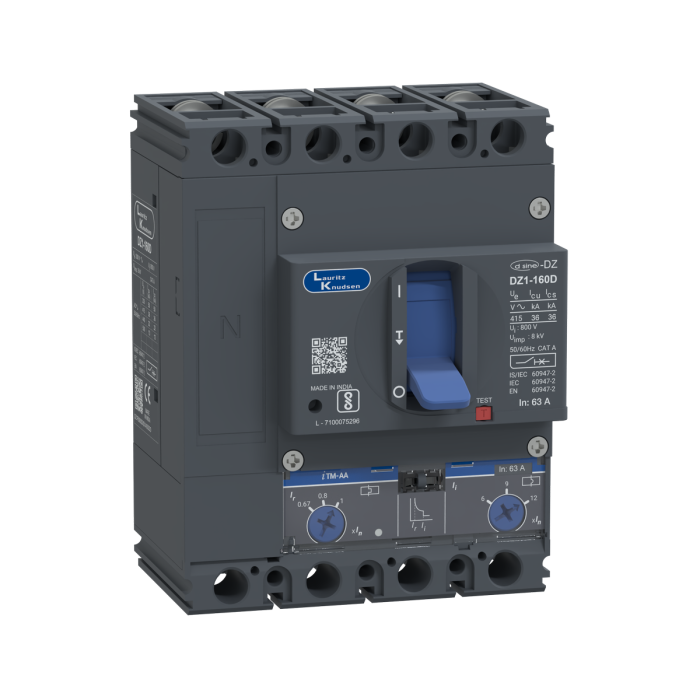

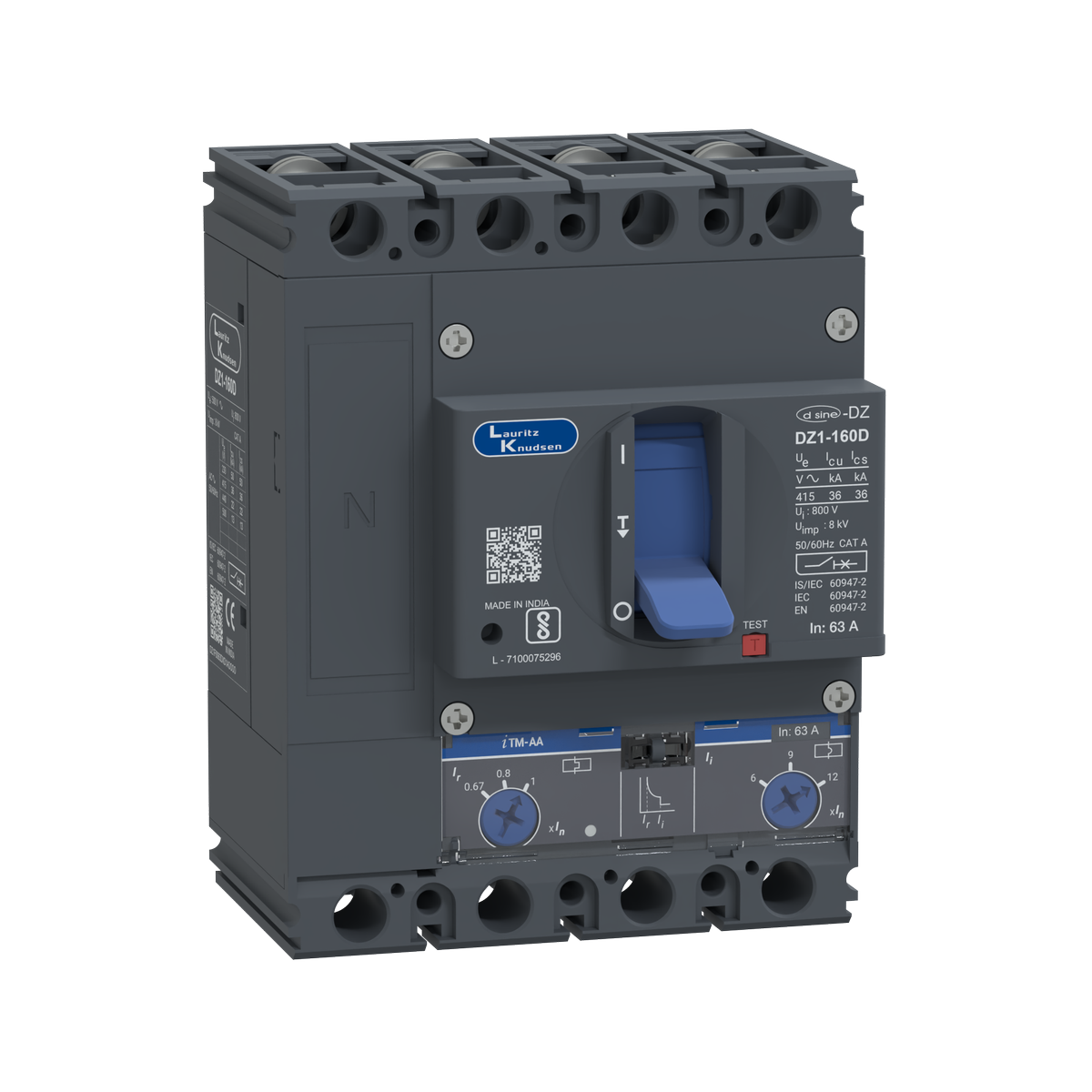

Lauritz Knudsen DZ1D, MCCB, 4 Pole, 415V AC, 36kA Breaking Capacity, 63A | Thermal-Magnetic Release | IP40 Protection
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen DZ1D, MCCB, 4 Pole, 415V AC, 36kA Breaking Capacity, 63A | Thermal-Magnetic Release | IP40 Protection
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen DZ1D MCCB 63A 4 Pole 415V AC 36kA Thermal Magnetic is a high-performance molded case circuit breaker engineered to provide reliable circuit protection & switching for low-voltage electrical installations. Designed to protect circuits against overloads & short-circuit faults, it safeguards motors, cables, control panels, switchboards, machinery, & power distribution networks from damage caused by abnormal current conditions.
Featuring a 63A rated current, 4 Pole configuration, 415V AC operating voltage, & a high 36kA short-circuit breaking capacity, this MCCB is suitable for industrial facilities, commercial buildings, OEM equipment, control panels, & utility applications requiring dependable fault interruption, neutral isolation, & electrical protection.
Its thermal magnetic trip mechanism combines overload protection with instantaneous short-circuit fault interruption, ensuring improved safety, reliable performance, equipment protection, & long service life.
How the Mechanism Works
The product functions by:
• Protecting circuits against overload conditions
• Interrupting short-circuit fault currents
• Automatically disconnecting faulty circuits
• Protecting motors, cables, & connected equipment
• Providing complete phase & neutral isolation
• Supporting safe power distribution
• Reducing electrical system damage risks
• Improving operational reliability
It serves as an essential protection device for maintaining electrical safety & uninterrupted system operation.
Electrical Configuration
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: DZ1D
• Current Rating: 63A
• Pole Configuration: 4 Pole
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 36kA
• Trip Type: Thermal Magnetic
• Application: Circuit Protection & Switching
• Suitable For: Three-Phase & Neutral Electrical Systems
• Catalog Number: DZ1F0063DXD1AOOOO
Construction & Design
Designed for dependable protection:
• Thermal magnetic trip mechanism
• 63A current rating
• 4-pole protection configuration
• Neutral pole switching capability
• 36kA fault-breaking capability
• Compact molded case design
• Durable contact mechanism
• Industrial-grade engineering
Safety & Protection
• Reliable overload protection
• Fast short-circuit interruption
• High fault-clearing capability
• Enhanced electrical safety
• Complete phase & neutral isolation
• Improved equipment protection
• Reduced downtime risks
• Long-term operational stability
Mounting & Durability
• Suitable for switchboards & distribution panels
• Compatible with industrial & commercial installations
• Compact installation footprint
• Rugged molded case construction
• High mechanical durability
• Low maintenance requirements
• Designed for continuous operation
• Quality manufacturing standards
Application Domains
• Industrial Facilities
• Commercial Buildings
• OEM Equipment Panels
• Control Panels
• Utility Installations
• Infrastructure Projects
• Machinery Protection Systems
• Power Distribution Applications
Key Features
• DZ1D MCCB series
• 63A current rating
• 4 Pole configuration
• 415V AC operation
• 36kA breaking capacity
• Thermal magnetic trip protection
• Overload protection
• Short-circuit protection
• Neutral pole switching capability
• Long service life
Applications
• Three-phase circuit protection
• Distribution board protection
• Control panel protection
• Commercial electrical systems
• OEM machinery panels
• Utility electrical installations
• Equipment protection circuits
• Low-voltage power distribution
FAQs
1. What is the DZ1F0063DXD1AOOOO MCCB used for?
Ans: It is used for protecting electrical circuits & connected equipment against overloads & short-circuit faults in three-phase electrical systems with neutral isolation capability.
2. What is the current rating of this MCCB?
Ans: The MCCB is rated at 63A.
3. What does 4 Pole mean?
Ans: A 4 Pole MCCB protects & switches all three phase conductors together with the neutral conductor, ensuring complete circuit isolation.
4. What is the breaking capacity of this MCCB?
Ans: It provides a 36kA short-circuit breaking capacity for safe interruption of high fault currents & protection of connected equipment.
5. What is thermal magnetic protection?
Ans: Thermal magnetic protection combines thermal overload protection & instantaneous magnetic short-circuit protection for comprehensive circuit safety.
6. Where can this MCCB be installed?
Ans: It can be installed in switchboards, distribution panels, control panels, OEM equipment, commercial facilities, & industrial electrical systems.
7. Why choose a 4 Pole MCCB?
Ans: A 4 Pole MCCB provides simultaneous switching & isolation of the neutral conductor along with all three phases, offering improved electrical safety & complete isolation.
8. Does it require frequent maintenance?
Ans: No, its durable molded case construction & dependable trip mechanism ensure long-term, low-maintenance operation under normal operating conditions.
Overview
| Rated Operational Current | 63 |
|---|---|
| Mechanical Life (No. of operating cycles) | 30000 |
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | TM |
| Rated Short Circuit Breaking capacity Icu(kA) | DZ1D MCCB 63 4P 415V AC 36kA Thermal Magnetic 50/60 Hz |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 36kA |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 10000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 100 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
