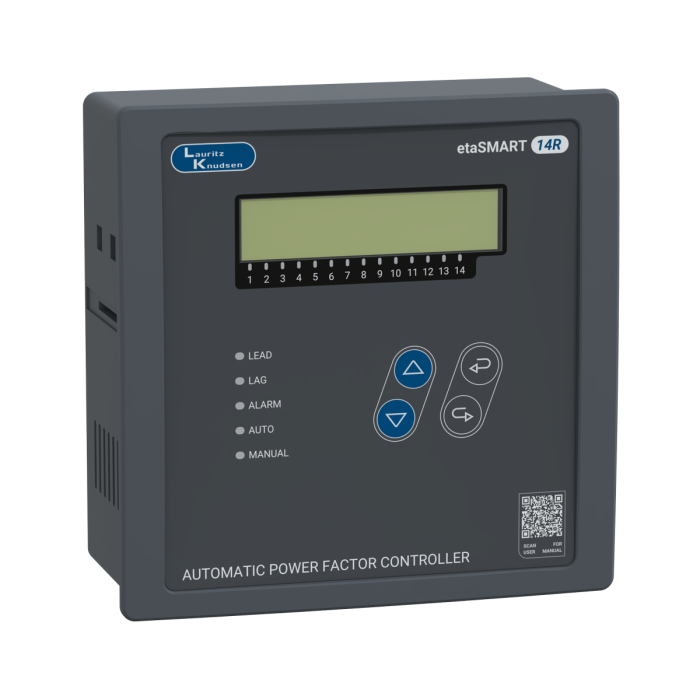

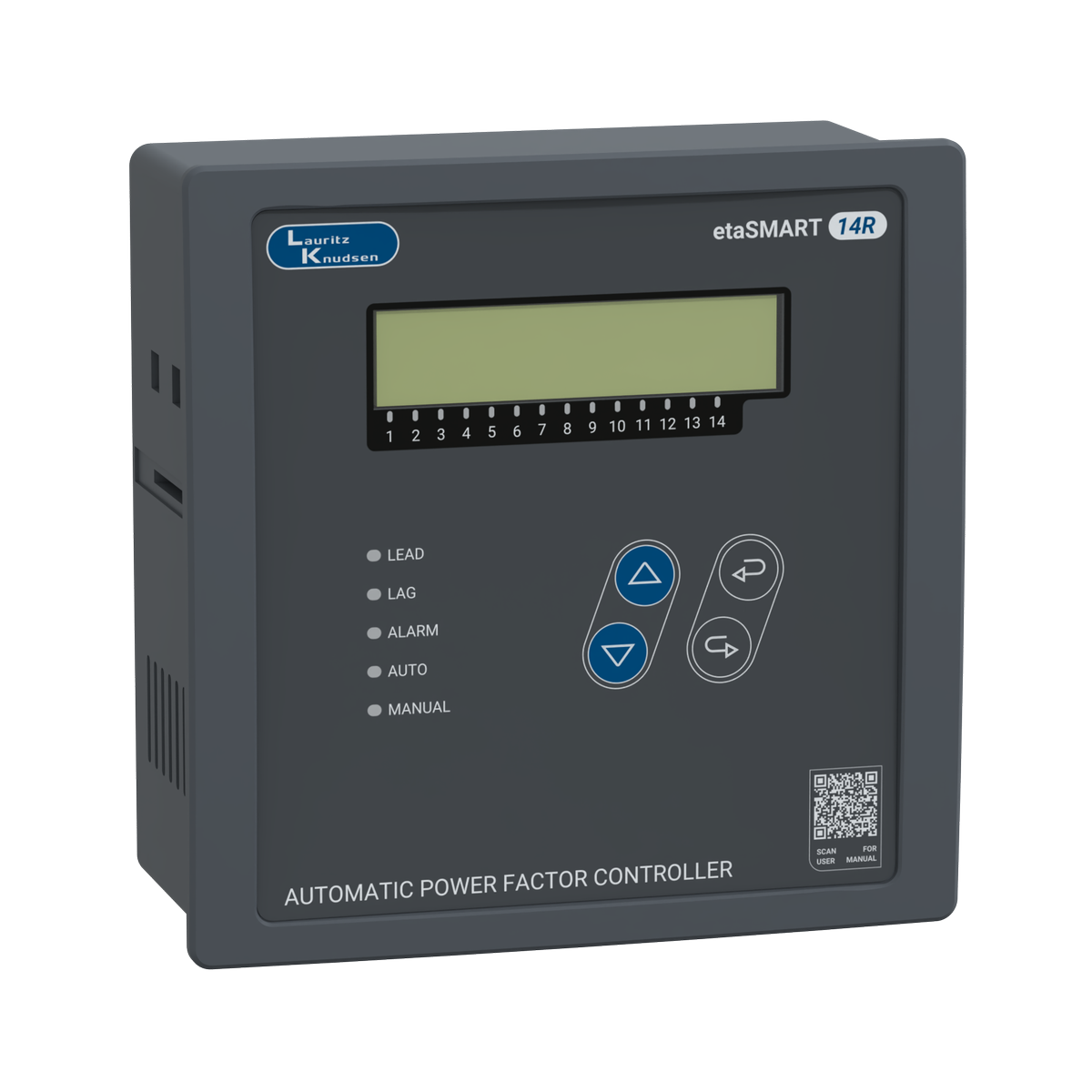

Lauritz Knudsen etaSMART R - APFC Controller, 1 CT, 415V AC | 14 Step for Contactor Switching | Size - 144*144 | Programmed for Capacitor Switching/Alarm Function/Fan Control
- Description
- Specifications
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen EasyLogic APFC Relay CS90904 is a premium-grade, high-precision Automatic Power Factor Correction (APFC) controller engineered for large electrical installations requiring ultra-accurate reactive power compensation & advanced capacitor bank management. Designed for industrial, commercial, & infrastructure applications, this intelligent relay helps improve power factor, optimize energy consumption, reduce electrical losses, & eliminate utility penalties through precise contactor-based capacitor switching.
The relay utilizes a single Current Transformer (1 CT) input configuration, allowing simplified installation while ensuring accurate load monitoring & power factor measurement. By continuously analyzing load conditions, reactive power demand, & power factor variations, the controller automatically switches capacitor stages ON or OFF to maintain the desired power factor & maximize system efficiency.
Equipped with a 14-step capacitor switching configuration, the EasyLogic APFC Relay CS90904 delivers exceptional correction accuracy & control flexibility. Compared to 4-step, 6-step, 8-step, & even 12-step APFC relays, the 14-step architecture provides superior load matching, finer compensation resolution, smoother switching performance, & enhanced responsiveness to highly dynamic load conditions.
This advanced control capability makes the relay particularly suitable for large industrial operations, heavy machinery installations, manufacturing facilities, utility infrastructure, & electrical distribution systems where power demand fluctuates continuously & accurate correction is essential for maintaining efficiency & system stability.
The relay intelligently controls capacitor bank utilization, helping prevent under-compensation, overcompensation, unnecessary switching operations, & capacitor bank imbalance. This improves equipment lifespan, reduces maintenance requirements, & enhances electrical network reliability.
Designed specifically for contactor-based switching systems, the controller offers dependable & efficient operation for conventional capacitor bank installations while maintaining exceptional correction performance.
The device features a user-friendly interface that simplifies setup, monitoring, & parameter configuration. Users can easily adjust settings such as target power factor, capacitor step sequence, switching delays, response times, alarm functions, & protection parameters according to specific application requirements.
Real-time monitoring & automatic control capabilities allow the relay to continuously adapt to changing load conditions while maintaining stable power factor correction & minimizing manual intervention. This helps optimize energy efficiency, improve power quality, & reduce operating costs.
As part of the Lauritz Knudsen EasyLogic product range, the APFC Relay CS90904 combines advanced functionality, industrial-grade reliability, ease of use, & cost-effective operation, making it an ideal solution for panel builders, contractors, system integrators, facility managers, & industrial operators.
The compact panel-mountable enclosure allows seamless integration into APFC panels, capacitor bank systems, switchboards, electrical distribution panels, & power quality management installations.
This APFC relay is an ideal solution for applications requiring ultra-high precision power factor correction, optimized energy utilization, enhanced power quality, & dependable performance in large & complex electrical systems.
How the Mechanism Works
The APFC relay functions by:
• Continuously monitoring load current using a single CT input
• Measuring power factor in real time
• Calculating reactive power requirements automatically
• Switching capacitor stages ON or OFF as required
• Maintaining the desired target power factor
• Providing highly precise 14-step capacitor bank control
• Preventing overcompensation & under-compensation
• Optimizing capacitor bank utilization
• Reducing electrical losses & utility penalties
• Improving overall power quality & system efficiency
It serves as an intelligent automatic control solution for advanced capacitor bank management & power factor correction.
Electrical Configuration
• Product Type: EasyLogic APFC Relay
• Model: CS90904
• CT Input Configuration: 1 CT
• Capacitor Control Steps: 14 Steps
• Switching Technology: Contactor-Based Switching
• Application Type: Automatic Power Factor Correction
• Installation Type: Panel Mounting
• Control Function: Automatic Capacitor Bank Management
• Primary Purpose: Power Factor Improvement & Energy Optimization
Construction & Design
Designed for reliability & advanced system control:
• Compact panel-mountable design
• Industrial-grade electronic architecture
• User-friendly display & interface
• Clear configuration & monitoring menus
• Durable long-life construction
• Easy integration into APFC panels
• Simple setup & commissioning
• Space-efficient installation design
• Reliable operation under dynamic loads
• Low maintenance requirements
Protection & Control Benefits
Helps optimize & protect electrical systems by:
• Improving power factor automatically
• Reducing reactive power demand
• Preventing utility penalty charges
• Avoiding overcompensation conditions
• Minimizing unnecessary capacitor switching
• Improving capacitor bank utilization
• Supporting stable electrical operation
• Enhancing power quality performance
• Reducing energy losses
• Extending equipment service life
Purpose & Function
• Automatically maintains target power factor
• Provides finer control than lower-step APFC relays
• Delivers ultra-precise correction for fluctuating loads
• Reduces electricity costs & demand penalties
• Optimizes capacitor bank efficiency
• Improves electrical network stability
• Minimizes manual supervision requirements
• Supports large & highly dynamic load applications
• Enhances overall energy savings
• Improves long-term system performance & reliability
Application Domains
• Large APFC Panels & Multi-Stage Capacitor Banks
• Industrial Plants & Heavy-Load Operations
• Manufacturing Facilities with Fluctuating Demand
• Commercial Complexes & Infrastructure Projects
• Utility & Power Distribution Systems
• Advanced Power Quality Management Systems
• Industrial Energy Management Applications
• Large Electrical Distribution Networks
• Infrastructure & Utility Installations
• High-Capacity Energy Optimization Projects
Key Features
• Lauritz Knudsen EasyLogic APFC relay
• Model: CS90904
• 1 CT input for simplified system integration
• 14-step capacitor switching control
• Designed for contactor-based switching systems
• Continuous monitoring of power factor & reactive power
• Enables ultra-precise correction for large & complex loads
• Configurable target power factor settings
• Adjustable switching delay parameters
• Adjustable capacitor step sequence settings
• Reduces energy losses & electricity penalties
• Prevents overcompensation & unnecessary switching cycles
• Optimizes capacitor usage & system performance
• Suitable for large industrial applications
• User-friendly interface
• Compact & panel-mountable design
• Industrial-grade durability & reliability
Applications
• Large APFC panels & multi-stage capacitor banks
• Industrial plants & heavy-load operations
• Manufacturing facilities with fluctuating demand
• Commercial complexes & infrastructure projects
• Utility & power distribution systems
• Advanced power quality management systems
• Industrial energy management installations
• High-capacity electrical distribution networks
• Infrastructure development projects
• Commercial & industrial power optimization systems
FAQs
1. What is an APFC relay used for?
Ans: It automatically controls capacitor banks to maintain optimum power factor, improve energy efficiency, reduce electrical losses, & avoid utility penalties.
2. What does 1 CT mean?
Ans: It means the relay uses one Current Transformer (CT) input for system load monitoring, power factor measurement, & automatic correction control.
3. What does 14-step control indicate?
Ans: It means the relay can control up to fourteen capacitor stages, providing ultra-fine & highly precise power factor correction for complex electrical systems.
4. Why choose a 14-step relay?
Ans: A 14-step APFC relay offers maximum correction accuracy, superior load matching, smoother capacitor switching, & exceptional adaptability to large systems with rapidly changing loads.
5. What type of switching does it support?
Ans: The EasyLogic APFC Relay CS90904 supports contactor-based switching, making it suitable for standard APFC panels & capacitor bank installations.
6. Where is this relay typically used?
Ans: It is commonly used in large industrial APFC panels, manufacturing facilities, utility projects, commercial complexes, & high-capacity electrical distribution systems.
7. What advantages does 14-step control provide?
Ans: The higher number of switching stages enables ultra-precise compensation, reduced switching stress, improved system stability, better capacitor utilization, & maximum energy efficiency.
8. What protection & optimization benefits does this relay provide?
Ans: It helps prevent overcompensation, reduces unnecessary switching cycles, minimizes capacitor bank imbalance, improves power quality, lowers operating costs, & supports long-term system reliability.
Overview
| Dimension 1 | 144 |
|---|---|
| Dimension 2 | 144 |
| Voltage input | 415 V |
| No. of CT inupts | 1 |
| No. of steps (For Contactor switching) | 14 |
| No. of steps (For Thyristor switching) | 0 |
| Discount Percentage | Between 0-10 % |
