Description
About the Product

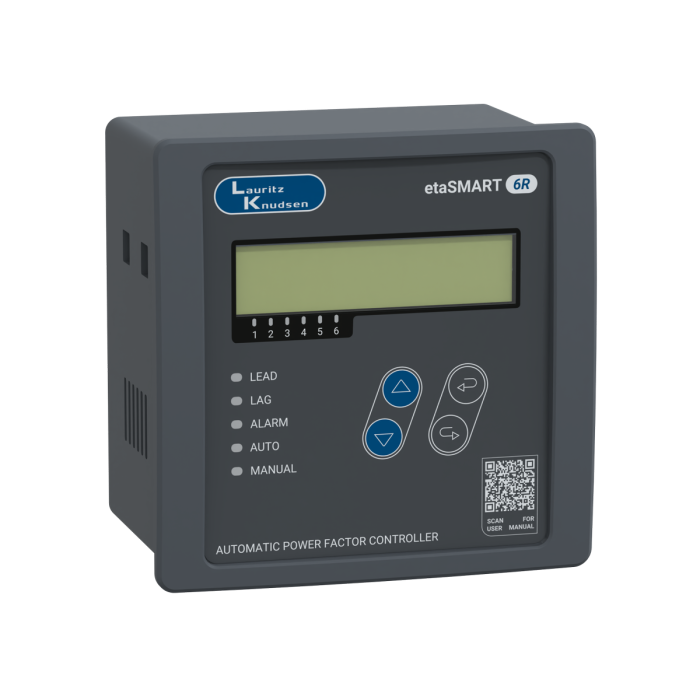

The Lauritz Knudsen EasyLogic APFC Relay CS90885 is a compact, intelligent, & efficient Automatic Power Factor Correction (APFC) controller designed to optimize power factor, improve energy efficiency, & enhance the performance of electrical distribution systems. Specifically engineered for commercial & industrial applications, this relay provides reliable capacitor bank management through contactor-based switching while helping reduce electricity losses, improve power quality, & avoid utility penalties associated with poor power factor.
The relay features a single Current Transformer (1 CT) input configuration, enabling accurate monitoring of load current & system power factor while keeping installation simple & cost-effective. By continuously measuring power factor, reactive power demand, & load conditions, it automatically switches capacitor banks ON or OFF as required to maintain the desired power factor & maximize electrical system efficiency.
Equipped with a 6-step capacitor switching capability, the EasyLogic APFC Relay CS90885 offers greater correction accuracy & finer control compared to standard 4-step models. The additional switching stages enable smoother compensation, improved load matching, reduced switching stress, & optimized capacitor utilization across varying operating conditions.
The relay continuously analyzes power system requirements & automatically manages capacitor stages to prevent under-compensation, overcompensation, unnecessary switching operations, & inefficient capacitor usage. This ensures stable electrical system performance & enhanced energy savings even in applications with fluctuating loads.
Designed specifically for contactor-based switching systems, the relay provides dependable operation for standard capacitor bank installations where switching frequency requirements remain moderate. Its intelligent control algorithm helps maximize efficiency while maintaining long-term reliability.
The controller features a user-friendly interface that simplifies setup, monitoring, & maintenance. Users can easily configure operating parameters such as target power factor, switching sequence, switching delays, alarm settings, & protection functions according to application requirements.
Real-time monitoring & automatic correction capabilities enable responsive system operation while reducing manual intervention. This helps maintain stable power factor performance & improves overall electrical network efficiency.
As part of the Lauritz Knudsen EasyLogic product range, the APFC Relay CS90885 combines ease of use, dependable performance, cost-effective operation, & advanced functionality, making it suitable for panel builders, electrical contractors, industrial users, facility managers, & utility applications.
The compact panel-mountable enclosure allows easy integration into APFC panels, capacitor bank systems, switchboards, & industrial control panels where space optimization & installation flexibility are important considerations.
This APFC relay is an ideal solution for applications requiring automatic power factor correction, improved energy efficiency, reduced electricity costs, & optimized electrical system performance.
How the Mechanism Works
The APFC relay functions by:
• Continuously monitoring load current using one CT input
• Measuring system power factor in real time
• Calculating reactive power requirements
• Automatically switching capacitor stages ON or OFF
• Maintaining the desired target power factor
• Providing precise 6-step capacitor bank control
• Preventing overcompensation & under-compensation
• Optimizing capacitor bank utilization
• Reducing energy losses & utility penalties
• Improving overall power quality & efficiency
It serves as an intelligent automatic control system for capacitor bank management & power factor correction.
Electrical Configuration
• Product Type: EasyLogic APFC Relay
• Model: CS90885
• CT Input Configuration: 1 CT
• Capacitor Control Steps: 6 Steps
• Switching Technology: Contactor-Based Switching
• Application Type: Automatic Power Factor Correction
• Installation Type: Panel Mounting
• Control Function: Automatic Capacitor Bank Management
• Primary Purpose: Power Factor Improvement & Energy Optimization
Construction & Design
Designed for reliability & ease of operation:
• Compact panel-mountable design
• Industrial-grade electronic components
• User-friendly interface & controls
• Clear configuration & monitoring functions
• Durable construction for long-term use
• Easy integration into APFC panels
• Simplified installation & commissioning
• Space-saving design
• Reliable & stable operation
• Low maintenance requirements
Protection & Control Benefits
Helps optimize & protect electrical systems by:
• Reducing reactive power demand
• Improving power factor automatically
• Preventing utility penalty charges
• Avoiding overcompensation conditions
• Minimizing unnecessary capacitor switching
• Enhancing capacitor bank life
• Supporting stable electrical operation
• Improving power quality performance
• Reducing electrical losses
• Increasing overall energy efficiency
Purpose & Function
• Automatically maintains target power factor
• Provides finer control than 4-step APFC systems
• Reduces electricity consumption costs
• Optimizes capacitor bank utilization
• Improves system efficiency & stability
• Reduces manual monitoring requirements
• Delivers smooth & accurate correction
• Supports fluctuating load applications
• Increases overall energy savings
• Enhances electrical network performance
Application Domains
• APFC Panels & Capacitor Bank Systems
• Industrial Electrical Distribution Networks
• Commercial Buildings & Facilities
• Manufacturing & Process Industries
• Power Quality Improvement Systems
• Energy Efficiency Optimization Projects
• Electrical Switchboards & Control Panels
• Utility Infrastructure Installations
• Industrial Power Management Systems
• Commercial Energy Management Applications
Key Features
• Lauritz Knudsen EasyLogic APFC relay
• Model: CS90885
• 1 CT input for simplified measurement
• 6-step capacitor switching control
• Designed for contactor-based switching systems
• Automatic monitoring of power factor & reactive power
• Improves energy efficiency & reduces utility penalties
• Configurable target power factor settings
• Adjustable step sequence configuration
• Adjustable switching delay settings
• Provides higher correction accuracy than 4-step systems
• Prevents overcompensation & capacitor overuse
• User-friendly interface for easy configuration
• Compact & panel-mountable design
• Reliable performance in industrial environments
Applications
• APFC panels & capacitor bank systems
• Industrial electrical distribution networks
• Commercial buildings & facilities
• Manufacturing & process industries
• Power quality improvement systems
• Energy efficiency optimization projects
• Electrical control panels & switchboards
• Utility infrastructure systems
• Industrial energy management applications
• Commercial power factor correction installations
FAQs
1. What is an APFC relay used for?
Ans: It automatically controls capacitor banks to maintain the desired power factor, improve energy efficiency, reduce power losses, & avoid utility penalties.
2. What does 1 CT mean?
Ans: It means the relay uses one Current Transformer (CT) input to monitor load current & calculate power factor for automatic correction.
3. What does 6-step control indicate?
Ans: It means the relay can control up to six capacitor stages, allowing finer & more accurate power factor correction compared to relay models with fewer steps.
4. Why choose a 6-step APFC relay over a 4-step model?
Ans: A 6-step relay provides better correction resolution, smoother capacitor switching, improved system accuracy, & greater adaptability to fluctuating loads.
5. What type of switching does this relay support?
Ans: The EasyLogic APFC Relay CS90885 is designed for contactor-based capacitor switching systems used in standard APFC applications.
6. Where is this relay typically installed?
Ans: It is commonly installed inside APFC panels, capacitor bank systems, industrial switchboards, & commercial electrical distribution panels.
7. Can settings be customized?
Ans: Yes. Users can configure target power factor, switching delays, capacitor step sequence, alarm functions, & other operating parameters according to their application requirements.
8. What are the main benefits of using this APFC relay?
Ans: The relay improves power factor, reduces electricity costs, minimizes utility penalties, enhances energy efficiency, improves power quality, & supports long-term reliable electrical system operation.
Overview
| Dimension 1 | 96 |
|---|---|
| Dimension 2 | 96 |
| Voltage input | 415 V |
| No. of CT inupts | 1 |
| No. of steps (For Contactor switching) | 6 |
| No. of steps (For Thyristor switching) | 0 |
| Discount Percentage | Between 0-10 % |
