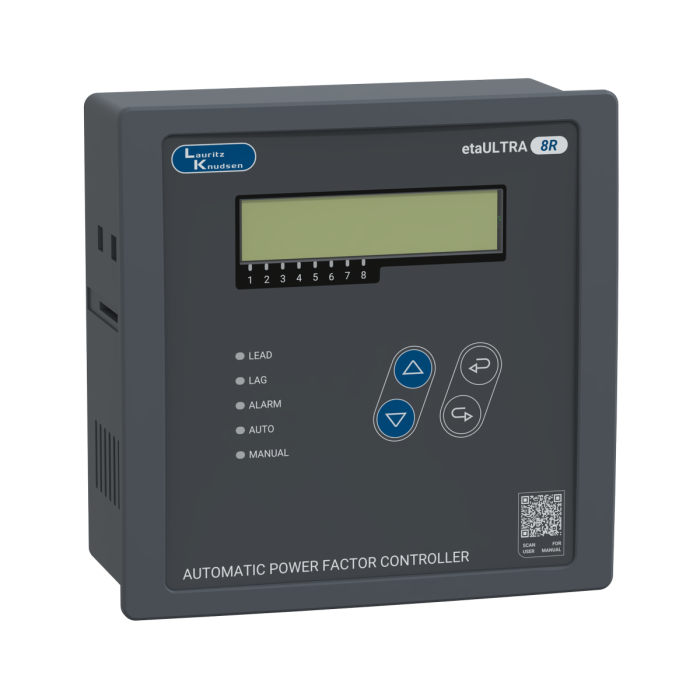

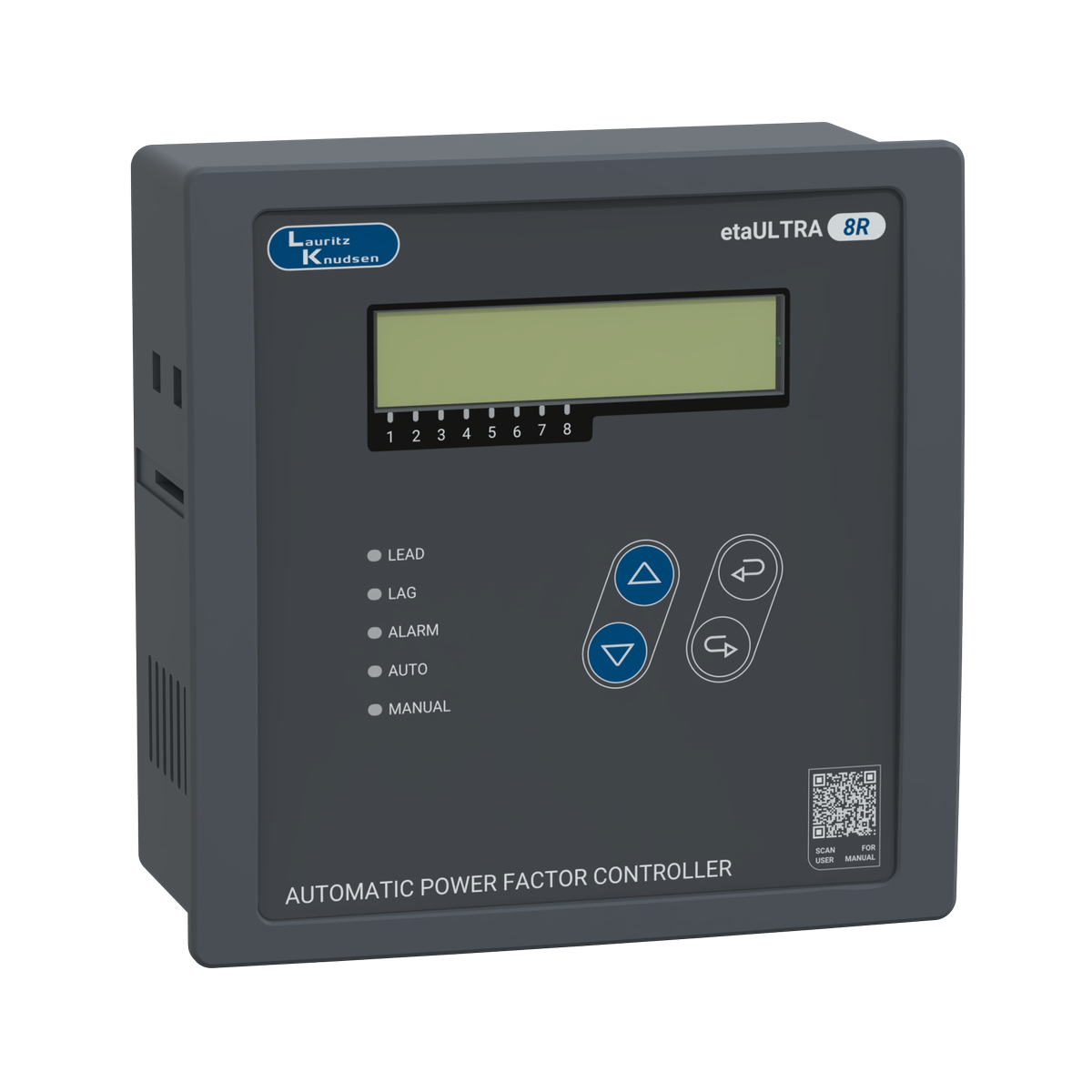

Lauritz Knudsen etaULTRA 8R - APFC Controller, 3 CT, 110/415V AC | 8 Step for Contactor Switching | Size - 144*144 | Communication through Inbuilt MODBUS RS-485 Protocol
M.R.P.:
₹31,900.00
₹27,376.00
M.R.P.:
- Description
- Specifications
- Warranty
- Reviews
Description
About the Product

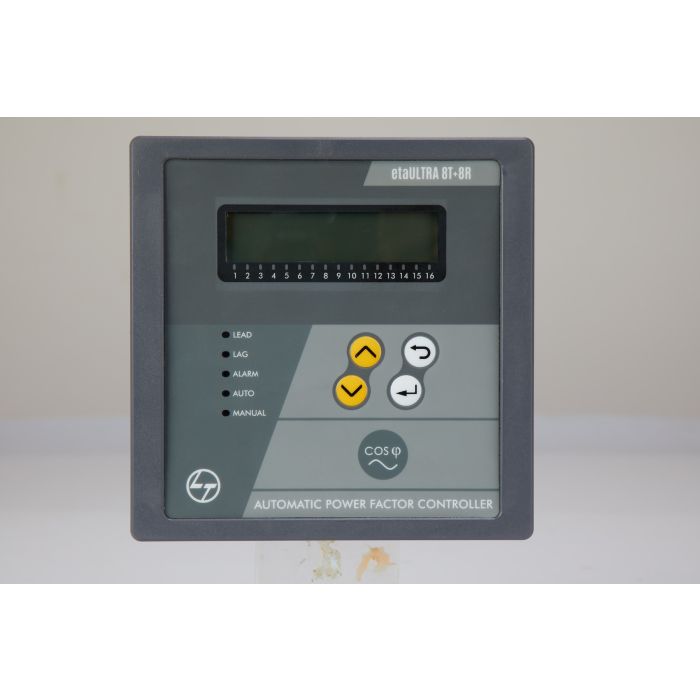

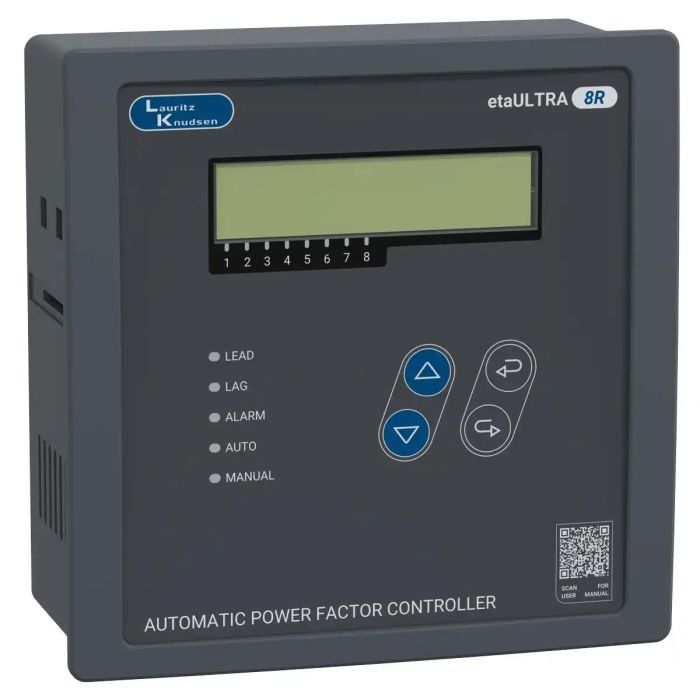

The Lauritz Knudsen EasyLogic APFC Relay CS91050 (EtaUltra Series) is a high-precision Automatic Power Factor Correction (APFC) controller specifically designed for three-phase electrical systems requiring advanced monitoring accuracy, balanced compensation, & reliable energy optimization. Equipped with three Current Transformer (3 CT) inputs & 8-step capacitor bank control, this intelligent relay delivers accurate phase-wise power factor correction through contactor-based switching technology, making it ideal for industrial & commercial applications with varying load conditions.
The relay continuously monitors power factor, reactive power demand, & load conditions across all three phases independently. Unlike conventional single-CT APFC relays, the 3 CT configuration enables individual phase measurement, allowing the controller to respond more accurately to real-world load imbalances & varying phase conditions. This results in improved correction accuracy, enhanced system stability, & more efficient capacitor bank utilization.
By continuously analyzing power consumption & reactive power requirements, the controller automatically switches capacitor stages ON or OFF to maintain the desired power factor. This helps reduce electricity penalties imposed by utilities, minimizes power losses, improves energy efficiency, & ensures optimal electrical system performance.
The 8-step capacitor switching configuration provides fine correction granularity & smooth compensation. The staged switching approach allows the relay to make precise adjustments according to changing load conditions, reducing unnecessary switching operations while maintaining stable power factor levels across the network.
The 3 CT measurement system provides several important advantages, including phase-wise load analysis, enhanced performance in unbalanced load conditions, improved correction precision, & better protection against phase imbalance issues commonly encountered in industrial installations.
Designed for contactor-based switching systems, the relay provides reliable & cost-effective performance for applications with conventional switching requirements. It combines dependable operation with easy integration into existing APFC panel designs & capacitor bank installations.
The controller features a user-friendly interface that simplifies configuration, monitoring, & maintenance. Users can easily configure operating parameters including target power factor, capacitor stage sequence, switching delays, alarm functions, & protection settings according to application requirements.
Real-time monitoring & intelligent control capabilities help prevent issues such as overcompensation, uneven phase correction, excessive capacitor switching, & unstable power factor conditions. This contributes to increased equipment life, improved energy efficiency, & enhanced system reliability.
As part of the Lauritz Knudsen EasyLogic EtaUltra product range, the APFC Relay CS91050 combines advanced three-phase monitoring technology, industrial-grade reliability, & simplified installation, making it ideal for panel builders, system integrators, OEMs, facility managers, & industrial operators.
The compact panel-mountable enclosure enables easy installation inside APFC panels, capacitor bank systems, electrical switchboards, & main distribution boards.
This APFC relay is an ideal solution for applications requiring accurate three-phase power factor correction, energy optimization, improved power quality, & reliable long-term operation in industrial electrical systems.
How the Mechanism Works
The APFC relay functions by:
• Continuously monitoring all three phases through independent CT inputs
• Measuring power factor & reactive power demand in real time
• Analyzing phase-wise load conditions
• Calculating compensation requirements automatically
• Switching capacitor stages ON or OFF as required
• Maintaining the desired target power factor
• Providing accurate 8-step capacitor bank control
• Compensating effectively during unbalanced load conditions
• Optimizing capacitor bank utilization
• Improving overall electrical system efficiency & stability
It serves as an intelligent control solution for three-phase automatic power factor correction & energy management.
Electrical Configuration
• Product Type: EasyLogic EtaUltra APFC Relay
• Model: CS91050
• CT Input Configuration: 3 CT Inputs
• Capacitor Control Steps: 8 Steps
• Switching Technology: Contactor-Based Switching
• Application Type: Automatic Power Factor Correction
• Installation Type: Panel Mounting
• Control Function: Three-Phase Capacitor Bank Management
• Primary Purpose: Power Factor Improvement & Energy Optimization
Construction & Design
Designed for industrial reliability & advanced monitoring:
• Compact panel-mountable design
• Industrial-grade electronic architecture
• User-friendly display & interface
• Three-phase monitoring capability
• Durable long-life construction
• Easy integration into APFC systems
• Simplified installation & commissioning
• Space-efficient enclosure design
• Reliable operation under varying load conditions
• Low maintenance requirements
Protection & Control Benefits
Helps optimize & protect electrical systems by:
• Improving power factor automatically
• Reducing reactive power demand
• Preventing overcompensation conditions
• Minimizing unnecessary capacitor switching
• Improving phase balance performance
• Enhancing capacitor bank utilization
• Supporting stable electrical operation
• Improving power quality performance
• Reducing electrical losses
• Supporting long-term system reliability
Purpose & Function
• Provides accurate three-phase monitoring
• Improves performance under unbalanced loads
• Enhances system stability & efficiency
• Reduces electricity costs & utility penalties
• Optimizes capacitor bank utilization
• Maintains stable power factor levels
• Improves overall energy management
• Reduces manual intervention requirements
• Supports industrial & commercial operations
• Enhances power quality & network performance
Application Domains
• Three-Phase APFC Panels & Capacitor Bank Systems
• Industrial Electrical Distribution Systems
• Manufacturing Plants with Unbalanced Loads
• Commercial Buildings & Infrastructure
• Power Quality Improvement Installations
• Energy Efficiency Optimization Projects
• Main Distribution Boards
• Industrial Power Management Systems
• Utility & Infrastructure Applications
• Commercial Electrical Networks
Key Features
• Lauritz Knudsen EasyLogic EtaUltra APFC relay
• Model: CS91050
• 3 CT inputs for precise three-phase monitoring
• 8-step capacitor switching control
• Designed for contactor-based switching systems
• Enables phase-wise load analysis & correction
• Improves accuracy in unbalanced load conditions
• Continuous monitoring of power factor & reactive power
• Configurable target power factor settings
• Adjustable capacitor step sequence
• Configurable switching delay parameters
• Prevents overcompensation & uneven phase correction
• Enhances overall system efficiency & stability
• User-friendly interface for easy setup
• Compact & panel-mountable design
• Industrial-grade performance & reliability
Applications
• Three-phase APFC panels & capacitor bank systems
• Industrial electrical distribution systems
• Manufacturing plants with unbalanced loads
• Commercial buildings & infrastructure
• Power quality improvement systems
• Energy efficiency optimization projects
• Main distribution boards
• Industrial power management systems
• Utility & infrastructure installations
• Commercial electrical networks
FAQs
1. What is an APFC relay used for?
Ans: It automatically controls capacitor banks to maintain optimal power factor, improve energy efficiency, reduce electrical losses, & minimize utility penalties.
2. What is the advantage of 3 CT over 1 CT?
Ans: A 3 CT relay measures each phase independently, providing better accuracy, improved phase balancing, & superior correction performance under unbalanced load conditions.
3. What does 8-step control mean?
Ans: It means the relay can independently control eight capacitor stages, enabling smooth, accurate, & efficient power factor correction.
4. What type of switching does this relay support?
Ans: The EasyLogic EtaUltra APFC Relay CS91050 supports contactor-based switching, making it suitable for conventional APFC systems & capacitor bank installations.
5. Where is this relay typically used?
Ans: It is commonly used in industrial APFC panels, manufacturing facilities, commercial infrastructure, & electrical systems where accurate three-phase monitoring is required.
6. Why choose a 3 CT APFC relay?
Ans: A 3 CT APFC relay provides better phase balance, improved correction accuracy, enhanced performance under uneven load conditions, & more efficient overall system operation.
7. How does the relay improve system efficiency?
Ans: The relay continuously monitors all three phases & optimizes capacitor switching to maintain the desired power factor, reducing losses & improving energy utilization.
8. What are the key benefits of the CS91050 relay?
Ans: The relay offers accurate three-phase monitoring, improved correction accuracy, better handling of unbalanced loads, enhanced system stability, reduced utility penalties, optimized energy efficiency, & reliable long-term performance.
Overview
| Dimension 1 | 144 |
|---|---|
| Dimension 2 | 144 |
| Voltage input | 110 / 415 V |
| No. of CT inupts | 3 |
| No. of steps (For Contactor switching) | 8 |
| No. of steps (For Thyristor switching) | 0 |
| Discount Percentage | Between 0-10 % |
