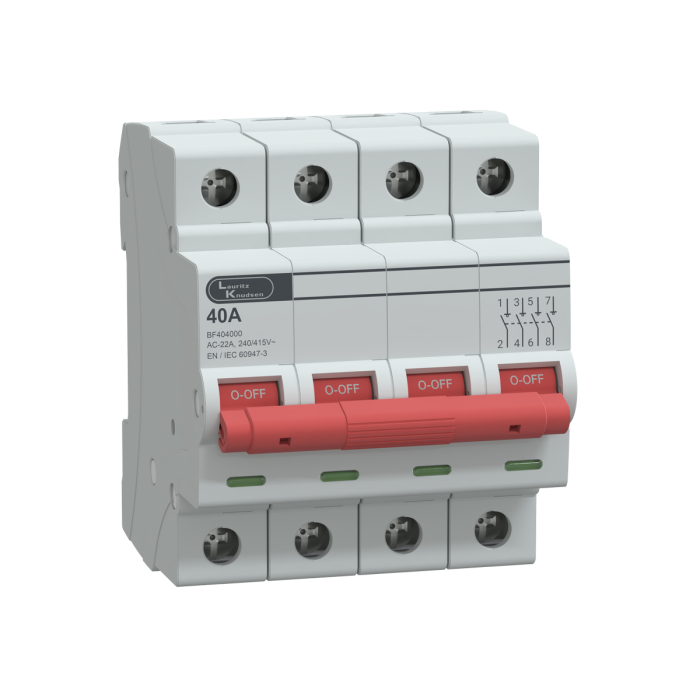

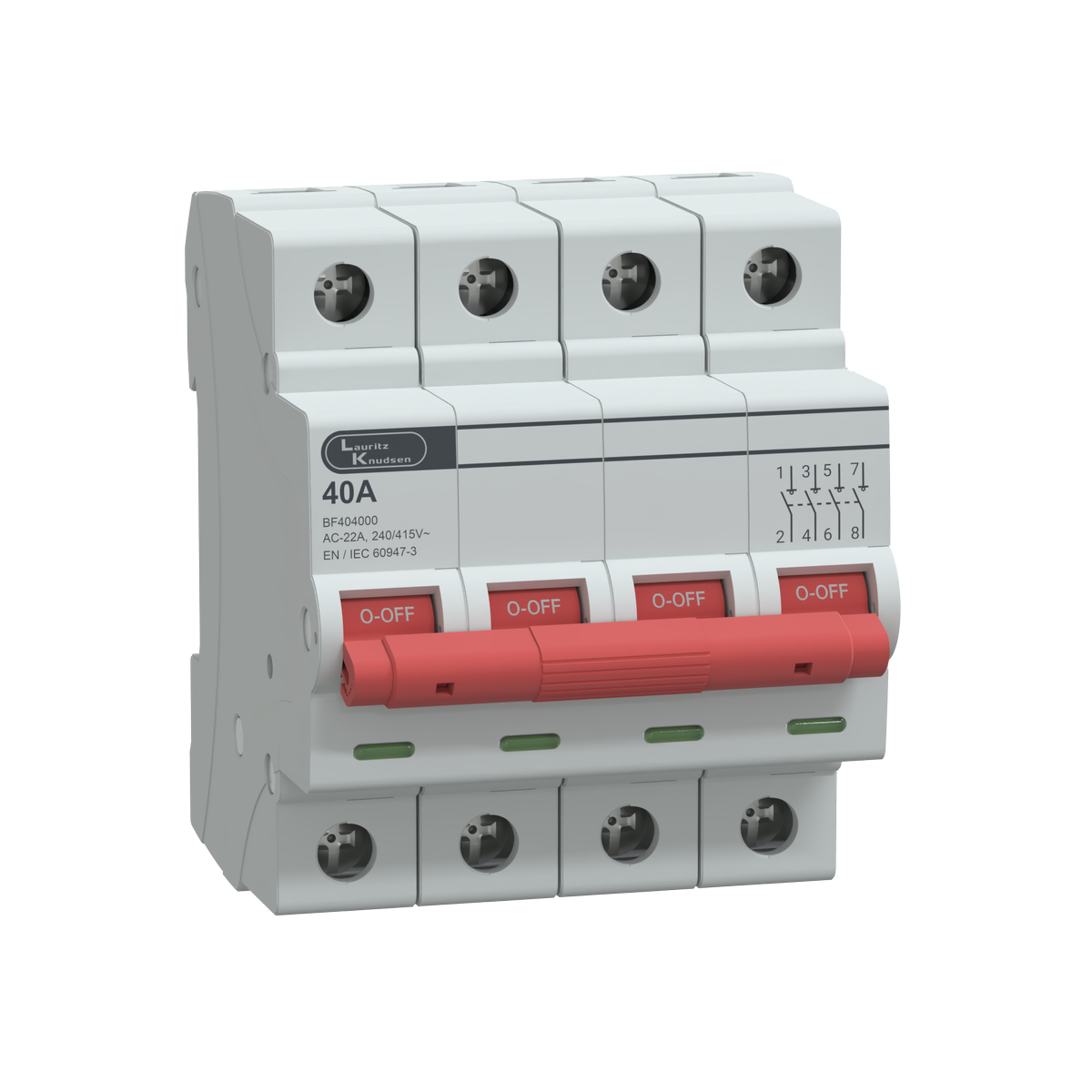

EXORA Isolator 40A FP 415V AC

BF404000
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

Isolators are used in electrical installations to make, carry and break circuit current
  • The Isolator ensures that the circuit remains completely isolated
  • Product Details

    Discount Percentage Between 0-10 %
    Operating Temperature Range -5°C to +50°C
    Electrical life (Operating Cylces) 10000
    Tightening Torque 4Nm
    Termination capacity 35 Sq. mm (Rigid) 25 Sq. mm (Flexible)
    Mechanical Life (Operating Cycles) 100000
    No. of Poles FP
    Conformance to standards EN/IEC 60947-3
    Rated Insulation Voltage Ui (V) 500V
    Rated Frequency 50Hz
    Rated Impulse Voltage 4kV
    Current Rating 40A
    Rated Operational voltage (Ue) 415V
    Conformance to Standards EN/IEC 60947-3
    Length(mm) 74.5
    Height(mm) 87.3
    Breadth(mm) 70
