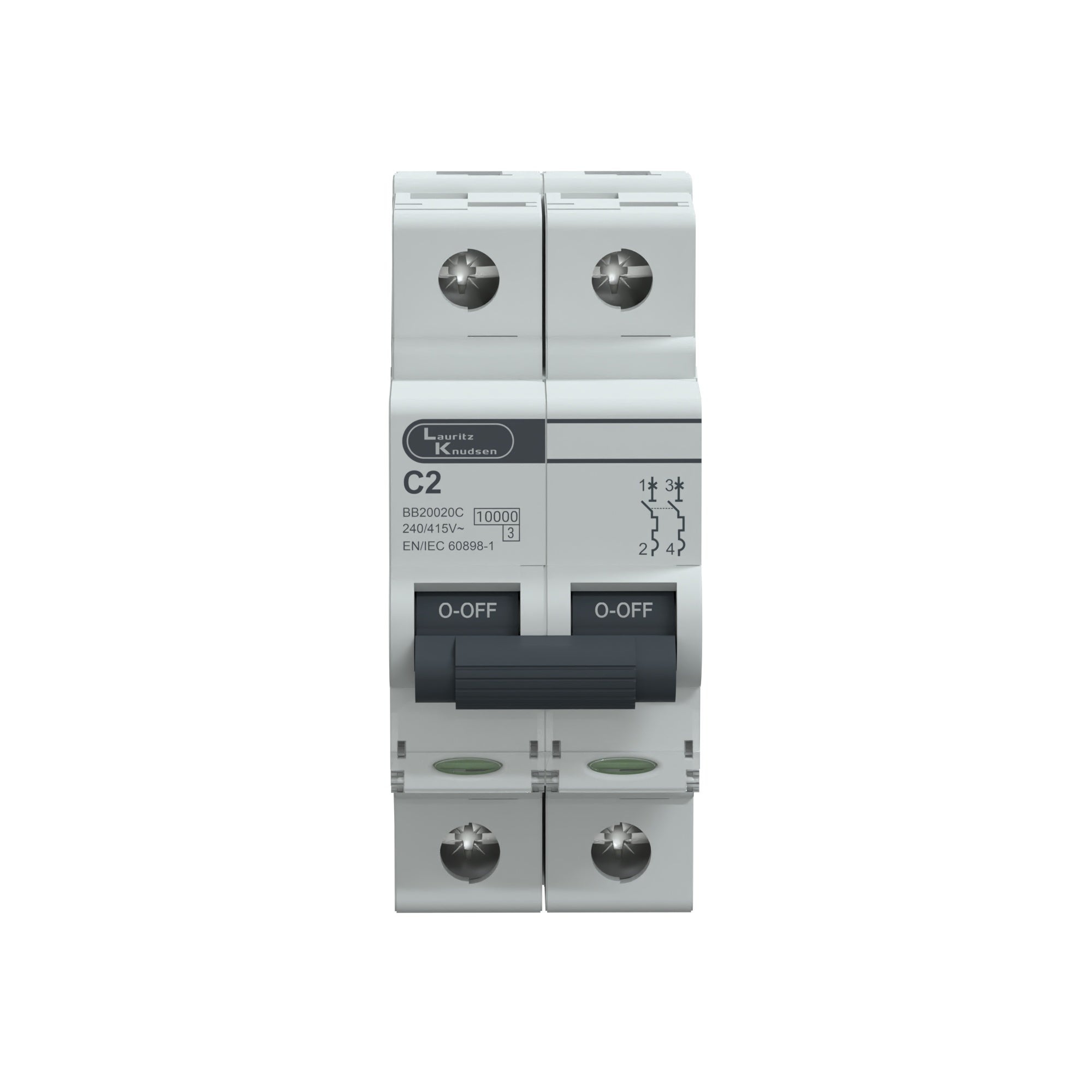

Lauritz Knudsen EXORA, MCB, 2 Pole, 240V AC, 10kA, C Curve, 2A
SKU :
BB20020C
BIS
Certified
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
BB20020C
Lauritz Knudsen EXORA, MCB, 2 Pole, 240V AC, 10kA, C Curve, 2A
Further Offers for this product:
No sellers found for this product.
₹1,410.00
₹998.28
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Out of stock
Lauritz Knudsen EXORA, MCB, 2 Pole, 240V AC, 10kA, C Curve, 2A
₹1,410.00
₹998.28
- Description
- Specifications
- Documents
- Reviews
Description
- Lauritz Knudsen The MCB is a vital protection device that is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +70° C |
| Electrical life (Operating Cylces) | 20000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | DP |
| Conformance to standards | IS/IEC 60898-1 IEC 60947-2 |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IS/IEC 60898-1 15kA as per IEC 60947-2 |
| Rated Impulse Voltage | 4kV |
| Current Rating | 2A |
| Rated Operational voltage (Ue) | 240V |
| Conformance to Standards | IS/IEC 60898-1 IEC 60947-2 |
| Tripping Characteristic | C Curve |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 35 |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for 18* months from the date of purchase.
