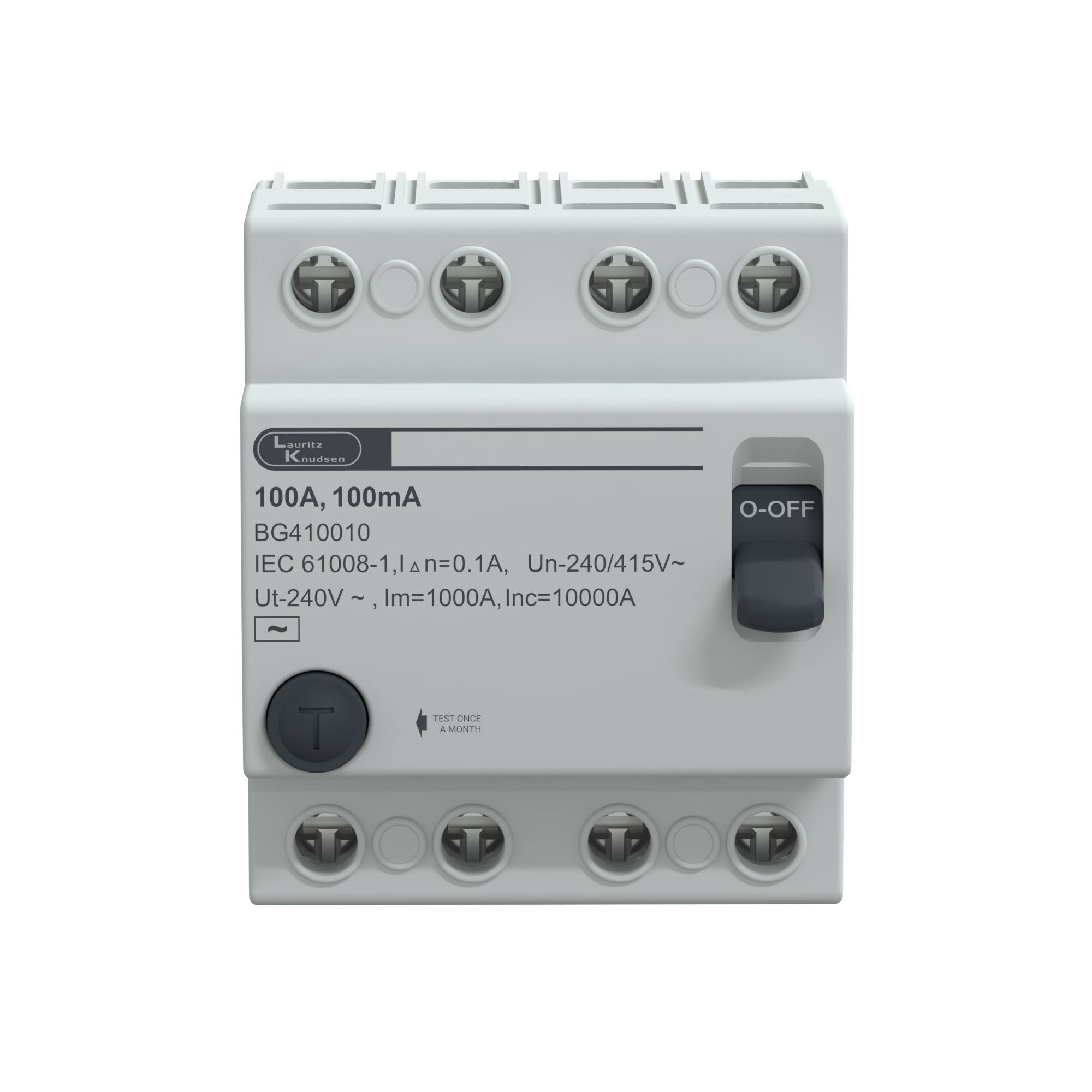

Lauritz Knudsen EXORA, RCCB, 4 Pole, 415V AC, 100mA, 100A
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Exora RCCB 100A FP 415V AC 100mA is a high-performance Residual Current Circuit Breaker designed to provide reliable protection against earth leakage faults in three-phase electrical systems with neutral. Engineered for industrial, commercial, & high-capacity power distribution applications, this RCCB continuously monitors current flow & instantly disconnects the power supply when leakage current is detected. With a 100A current rating, 415V AC operating voltage, four pole configuration, & 100mA sensitivity, it is specifically designed to help prevent fire hazards caused by insulation failures & leakage currents. The four pole configuration ensures simultaneous isolation of all three phases & neutral for enhanced safety & complete system protection.
How the Mechanism Works
The Exora RCCB utilizes an advanced residual current detection mechanism to monitor electrical safety continuously.
• Continuously compares current flowing through all three phases & neutral conductors.
• Detects any imbalance caused by leakage current to earth.
• Trips instantly when leakage current exceeds 100mA.
• Interrupts the electrical supply before leakage faults can cause equipment damage or fire hazards.
• Provides rapid fault detection & circuit isolation.
• Reduces risks associated with insulation deterioration & electrical leakage.
Electrical Configuration
This RCCB is designed for fire protection & leakage current monitoring in three-phase electrical systems.
• Rated current: 100A
• Pole configuration: Four Pole (FP)
• Rated voltage: 415V AC
• Sensitivity: 100mA
• Residual current protection functionality
• Suitable for high-load commercial, industrial, & upstream protection applications
• Designed for enhanced fire safety & fault protection
Construction & Design
Built for dependable operation & long-term reliability in modern electrical installations.
• High-quality flame-retardant insulated housing
• Compact modular construction for space-efficient installation
• Precision-engineered sensing mechanism
• Ergonomic operating handle for easy switching & resetting
• Integrated test function for routine safety verification
• Four pole configuration for complete phase & neutral isolation
Safety & Protection
The RCCB provides comprehensive protection against leakage-related electrical hazards.
• Earth leakage protection
• Fire hazard protection caused by insulation faults
• Fast fault detection & disconnection
• Protection for electrical equipment & installations
• Reduced risk of electrical fires due to leakage currents
• Enhanced safety for commercial & industrial applications
• Reliable protection against insulation deterioration
• Improved electrical system reliability
Mounting & Durability
Designed for long-term operation in demanding electrical environments.
• Standard DIN rail mounting compatibility
• Quick & secure installation
• Compact space-saving design
• Heavy-duty industrial-grade construction
• Resistant to electrical & thermal stresses
• Low maintenance requirements
• Long operational service life with consistent performance
Application Domains
Suitable for a wide range of commercial & industrial electrical installations requiring fire protection through leakage current monitoring.
• Main distribution boards
• Industrial plants & factories
• Commercial buildings & complexes
• High-load machinery circuits
• Transformer & feeder protection systems
• Upstream protection circuits
• Three-phase power distribution networks
• Fire safety applications
Key Features
• Rated current: 100A
• Four Pole (FP) configuration
• Rated voltage: 415V AC
• Sensitivity: 100mA
• Residual current protection (earth leakage protection)
• Fire hazard protection due to leakage currents
• Simultaneous disconnection of three phases & neutral
• Fast & reliable tripping mechanism
• DIN rail mounting compatible
• Heavy-duty industrial-grade construction
• Durable & long-lasting design
• Suitable for commercial & industrial applications
Applications
• Main distribution boards
• Industrial electrical systems
• High-load machinery circuits
• Commercial building installations
• Transformer & feeder protection
• Manufacturing plants
• Three-phase distribution systems
• Fire safety electrical installations
FAQs
1. What is a 100A FP 100mA RCCB used for?
Ans: A 100A FP 100mA RCCB is primarily used for fire protection & leakage current detection in high-load three-phase electrical systems, helping prevent insulation-related fire hazards.
2. What does 100mA sensitivity mean?
Ans: A 100mA sensitivity means the RCCB will trip when leakage current exceeds 100 milliamperes, providing effective protection against leakage-related fire risks.
3. How is a 100mA RCCB different from a 30mA RCCB?
Ans: A 100mA RCCB is mainly designed for fire protection & upstream circuit protection, whereas a 30mA RCCB is intended for personal protection against electric shock.
4. Why use a Four Pole (FP) RCCB?
Ans: A Four Pole RCCB disconnects all three phases & neutral simultaneously, ensuring complete circuit isolation & improved electrical safety.
5. What is the difference between an RCCB & an MCB?
Ans: An RCCB protects against earth leakage currents, while an MCB protects against overload & short-circuit conditions.
6. Does the RCCB protect against overloads?
Ans: No, an RCCB only protects against leakage currents. Overload & short-circuit protection require an MCB or RCBO in combination with the RCCB.
7. Where is this RCCB commonly installed?
Ans: It is commonly installed in industrial plants, commercial buildings, main distribution boards, high-load machinery circuits, transformer installations, & three-phase electrical systems requiring leakage monitoring & fire protection.
8. How is the RCCB mounted?
Ans: The RCCB is designed for easy installation on standard DIN rails inside distribution boards & electrical panels.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +55°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 50 Sq. mm (Rigid) 35 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20000 |
| No. of Poles | FP |
| Conformance to standards | IS 12640-1 IEC 61008-1 |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1 kA |
| Rated Impulse Voltage | 4kV |
| Rated Conditional SC Current | 10 kA |
| Current Rating | 100A |
| Rated Operational voltage (Ue) | 415V |
| Conformance to Standards | IS 12640-1 IEC 61008-1 |
| Sensitivity | 100mA |
| Length(mm) | 77.1 |
| Height(mm) | 83 |
| Breadth(mm) | 71 |
