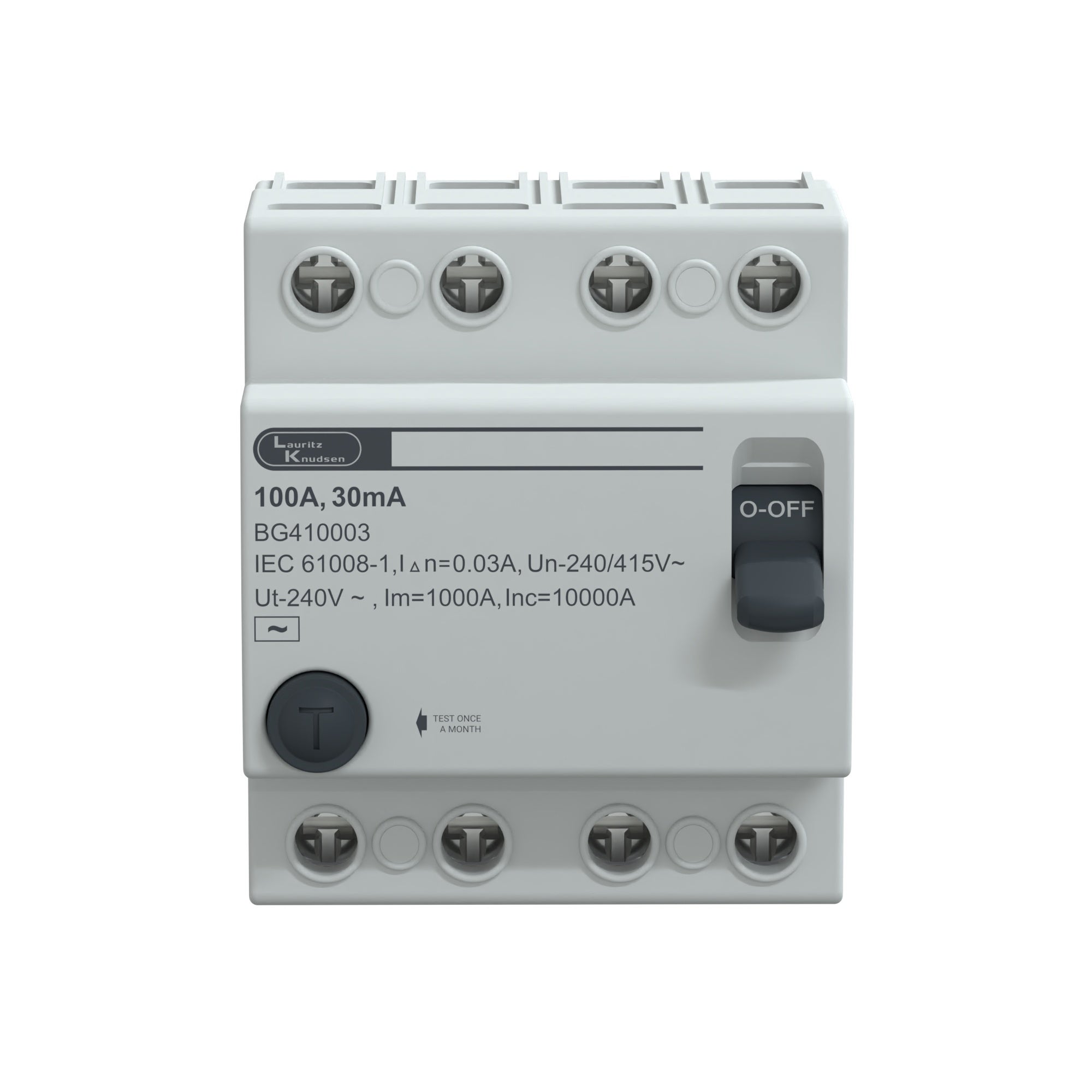

Lauritz Knudsen EXORA, RCCB, 4 Pole, 415V AC, 30mA, 100A
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen EXORA, RCCB, 4 Pole, 415V AC, 30mA, 100A
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Exora RCCB 100A FP 415V AC 30mA is a high-performance Residual Current Circuit Breaker designed to provide reliable protection against earth leakage faults in three-phase electrical systems with neutral. Engineered for industrial, commercial, & high-capacity power distribution applications, this RCCB continuously monitors current flow & instantly disconnects the power supply when leakage current is detected. With a 100A current rating, 415V AC operating voltage, four pole configuration, & 30mA sensitivity, it offers superior protection against electric shocks, electrocution risks, & fire hazards caused by insulation failure or leakage currents. The four pole configuration ensures simultaneous isolation of all three phases & neutral for enhanced safety & complete system protection.
How the Mechanism Works
The Exora RCCB utilizes an advanced residual current detection mechanism to monitor electrical safety continuously.
• Continuously compares current flowing through all three phases & neutral conductors.
• Detects any imbalance caused by leakage current to earth.
• Trips instantly when leakage current exceeds 30mA.
• Interrupts the electrical supply before hazardous shock conditions occur.
• Provides rapid protection against accidental contact with energized conductors.
• Helps prevent fire risks resulting from insulation failures & current leakage.
Electrical Configuration
This RCCB is designed for personal protection & leakage current monitoring in three-phase electrical systems.
• Rated current: 100A
• Pole configuration: Four Pole (FP)
• Rated voltage: 415V AC
• Sensitivity: 30mA
• Residual current protection functionality
• Suitable for high-load commercial & industrial installations
• Designed for enhanced electrical safety & fault protection
Construction & Design
Built for dependable operation & long-term reliability in modern electrical installations.
• High-quality flame-retardant insulated housing
• Compact modular construction for space-efficient installation
• Precision-engineered sensing mechanism
• Ergonomic operating handle for easy switching & resetting
• Integrated test function for routine safety verification
• Four pole configuration for complete phase & neutral isolation
Safety & Protection
The RCCB provides comprehensive protection against leakage-related electrical hazards.
• Earth leakage protection
• Electric shock protection for users
• Protection against indirect contact hazards
• Fast fault detection & disconnection
• Fire risk reduction caused by leakage currents
• Enhanced protection for occupants & equipment
• Improved safety during maintenance operations
• Reliable protection against insulation faults
Mounting & Durability
Designed for long-term operation in demanding electrical environments.
• Standard DIN rail mounting compatibility
• Quick & secure installation
• Compact space-saving design
• Heavy-duty industrial-grade construction
• Resistant to electrical & thermal stresses
• Low maintenance requirements
• Long operational service life with consistent performance
Application Domains
Suitable for a wide range of commercial & industrial electrical installations.
• Industrial main distribution systems
• Commercial three-phase power networks
• Large manufacturing facilities
• Heavy machinery & equipment circuits
• Transformer & switchgear protection systems
• Process control applications
• Power distribution networks
• Safety-critical electrical installations
Key Features
• Rated current: 100A
• Four Pole (FP) configuration
• Rated voltage: 415V AC
• Sensitivity: 30mA
• Residual current protection (earth leakage protection)
• Electric shock protection
• Fire hazard protection due to leakage currents
• Simultaneous disconnection of three phases & neutral
• Fast & reliable tripping mechanism
• DIN rail mounting compatible
• Heavy-duty industrial-grade design
• Suitable for commercial & industrial applications
Applications
• Industrial main distribution boards
• Heavy-duty three-phase installations
• Large motor & machinery circuits
• Commercial building electrical systems
• Transformer & high-load protection
• Manufacturing plants
• Process automation systems
• Power distribution applications
FAQs
1. What is a 100A FP RCCB used for?
Ans: A 100A FP RCCB is used to protect high-load three-phase electrical circuits with neutral from earth leakage faults, electric shocks, & fire hazards caused by leakage currents.
2. What does 30mA sensitivity mean?
Ans: A 30mA sensitivity means the RCCB will trip when leakage current exceeds 30 milliamperes, providing effective protection against electric shock hazards.
3. Why use a Four Pole (FP) RCCB?
Ans: A Four Pole RCCB disconnects all three phases & neutral simultaneously, ensuring complete circuit isolation & improved electrical safety.
4. What is the difference between an RCCB & an MCB?
Ans: An RCCB protects against earth leakage currents & electric shock, while an MCB protects against overload & short-circuit conditions.
5. Does the RCCB protect against overloads?
Ans: No, an RCCB only protects against leakage currents. Overload & short-circuit protection require an MCB or RCBO in combination with the RCCB.
6. Where is this RCCB commonly installed?
Ans: It is commonly installed in industrial plants, commercial buildings, manufacturing facilities, main distribution boards, heavy machinery circuits, transformer installations, & high-load three-phase electrical systems requiring leakage protection.
7. How is the RCCB mounted?
Ans: The RCCB is designed for easy installation on standard DIN rails inside distribution boards & electrical panels.
8. Why is complete phase & neutral isolation important?
Ans: Simultaneous disconnection of all three phases & neutral ensures complete circuit isolation during maintenance or fault conditions, improving safety & protecting connected equipment from electrical hazards.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +55°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 50 Sq. mm (Rigid) 35 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20000 |
| No. of Poles | FP |
| Conformance to standards | IS 12640-1 IEC 61008-1 |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1 kA |
| Rated Impulse Voltage | 4kV |
| Rated Conditional SC Current | 10 kA |
| Current Rating | 100A |
| Rated Operational voltage (Ue) | 415V |
| Conformance to Standards | IS 12640-1 IEC 61008-1 |
| Sensitivity | 30mA |
| Length(mm) | 77.1 |
| Height(mm) | 83 |
| Breadth(mm) | 71 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
