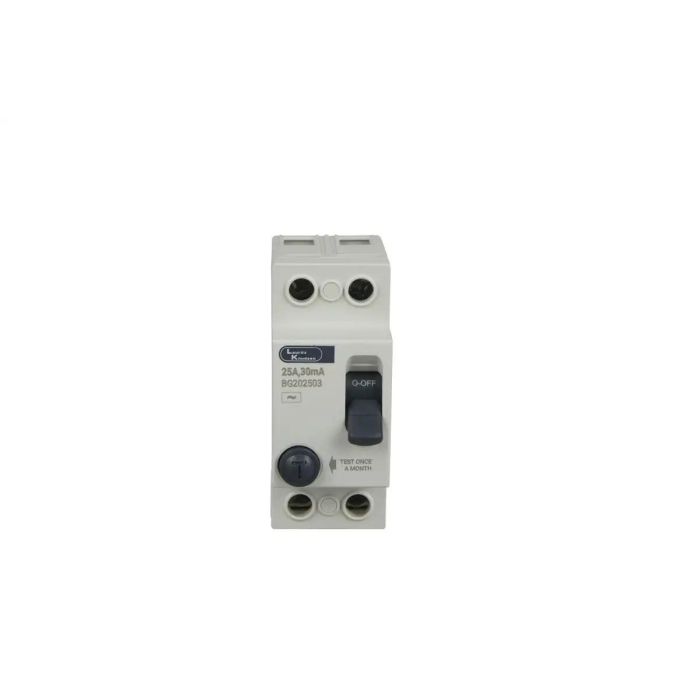

Lauritz Knudsen EXORA, RCCB, 2 Pole, 240V AC, 30mA, 25A
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Exora RCCB 25A DP 240V AC 30mA is a high-performance Residual Current Circuit Breaker designed to provide reliable protection against earth leakage faults in low-voltage electrical systems. Engineered for residential, commercial, & light industrial applications, this RCCB continuously monitors current flow & instantly disconnects the power supply when leakage current is detected. With a 25A current rating, 240V AC operating voltage, double pole configuration, & 30mA sensitivity, it delivers enhanced protection against electric shocks, electrocution risks, & fire hazards caused by insulation failure or leakage currents. The device ensures a safer electrical environment by rapidly isolating dangerous faults before they can cause injury or damage.
How the Mechanism Works
The Exora RCCB utilizes an advanced residual current detection mechanism to monitor electrical safety continuously.
• Continuously compares current flowing through live & neutral conductors.
• Detects any imbalance caused by leakage current to earth.
• Trips instantly when leakage current exceeds 30mA.
• Interrupts the electrical supply before hazardous shock conditions occur.
• Provides rapid protection against accidental contact with energized conductors.
• Helps prevent fire risks resulting from insulation failures & current leakage.
Electrical Configuration
This RCCB is designed for personal protection & leakage current monitoring in single-phase electrical systems.
• Rated current: 25A
• Pole configuration: Double Pole (DP)
• Rated voltage: 240V AC
• Sensitivity: 30mA
• Residual current protection functionality
• Suitable for residential & commercial installations
• Designed for enhanced electrical safety & fault protection
Construction & Design
Built for dependable operation & long-term reliability in modern electrical installations.
• High-quality flame-retardant insulated housing
• Compact modular construction for space-efficient installation
• Precision-engineered sensing mechanism
• Ergonomic operating handle for easy switching & resetting
• Integrated test function for routine safety verification
• Double pole configuration for complete circuit isolation
Safety & Protection
The RCCB provides comprehensive protection against leakage-related electrical hazards.
• Earth leakage protection
• Electric shock protection for users
• Protection against indirect contact hazards
• Fast fault detection & disconnection
• Fire risk reduction caused by leakage currents
• Enhanced protection for occupants & equipment
• Improved safety during maintenance operations
• Reliable protection against insulation faults
Mounting & Durability
Designed for long-term operation in demanding electrical environments.
• Standard DIN rail mounting compatibility
• Quick & secure installation
• Compact space-saving design
• Durable industrial-grade construction
• Resistant to electrical & thermal stresses
• Low maintenance requirements
• Long operational service life with consistent performance
Application Domains
Suitable for a wide range of residential, commercial, & light industrial electrical installations.
• Residential distribution boards
• Commercial buildings
• Office complexes
• Retail establishments
• Apartment & housing projects
• Educational institutions
• Light industrial facilities
• Equipment & appliance protection systems
Key Features
• Rated current: 25A
• Double Pole (DP) configuration
• Rated voltage: 240V AC
• Sensitivity: 30mA
• Residual current protection (earth leakage protection)
• Electric shock protection
• Fire hazard protection due to leakage currents
• Fast & reliable tripping mechanism
• DIN rail mounting compatible
• Compact modular construction
• Durable & long-lasting design
• Suitable for residential & commercial applications
Applications
• Residential electrical distribution
• Commercial buildings
• Office & retail spaces
• Small industrial systems
• Appliance protection circuits
• Housing societies & apartments
• Educational & institutional facilities
• Electrical safety upgrade projects
FAQs
1. What is a 25A RCCB used for?
Ans: A 25A RCCB is used to protect electrical circuits & users from earth leakage faults, electric shocks, & fire hazards caused by leakage currents.
2. What does 30mA sensitivity mean?
Ans: A 30mA sensitivity means the RCCB will trip when leakage current exceeds 30 milliamperes, providing effective protection against electric shock hazards.
3. Why use a Double Pole (DP) RCCB?
Ans: A Double Pole RCCB disconnects both live & neutral conductors simultaneously, ensuring complete circuit isolation & improved safety.
4. What is the difference between an RCCB & an MCB?
Ans: An RCCB protects against earth leakage currents & electric shock, while an MCB protects against overload & short-circuit conditions.
5. Does the RCCB protect against overloads?
Ans: No, an RCCB only protects against leakage currents. Overload & short-circuit protection require an MCB or RCBO in combination with the RCCB.
6. Where is this RCCB commonly installed?
Ans: It is commonly installed in residential homes, offices, commercial buildings, retail outlets, & light industrial electrical systems requiring leakage protection.
7. How is the RCCB mounted?
Ans: The RCCB is designed for easy installation on standard DIN rails inside distribution boards & electrical panels.
8. Why is periodic testing important?
Ans: Regular testing using the built-in test button helps verify proper RCCB operation & ensures continued protection against leakage faults & electric shock hazards.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +55°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 50 Sq. mm (Rigid) 35 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20000 |
| No. of Poles | DP |
| Conformance to standards | IS 12640-1 IEC 61008-1 |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1 kA |
| Rated Impulse Voltage | 4kV |
| Rated Conditional SC Current | 10 kA |
| Current Rating | 25A |
| Rated Operational voltage (Ue) | 240V |
| Conformance to Standards | IS 12640-1 IEC 61008-1 |
| Sensitivity | 30mA |
| Length(mm) | 77.1 |
| Height(mm) | 83 |
| Breadth(mm) | 35 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
