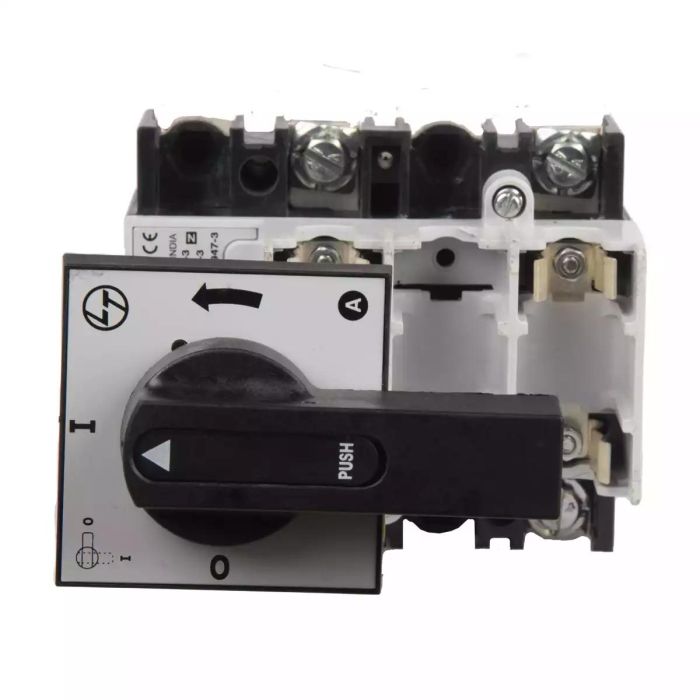

Lauritz Knudsen FN SDF (Switch Disconnector Fuse) 32A | 2 Pole | Open Execution DIN Type | Suitable for DIN fuse-link | Telescopic shaft for depth adjustment
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen FN SDF (Switch Disconnector Fuse) 32A | 2 Pole | Open Execution DIN Type | Suitable for DIN fuse-link | Telescopic shaft for depth adjustment
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen FN SDF 32A, 2 Pole, 415V AC Open Execution Switch Disconnector Fuse (DIN Type, 50/60 Hz) is a compact electrical device that integrates switch disconnection & fuse-based protection into a single unit for low current electrical circuits. Its open execution design allows easy installation & accessibility, while the DIN type fuse configuration ensures compatibility with standard DIN fuse systems.
Engineered using high-quality materials & advanced design, this switch disconnector fuse ensures reliable switching along with effective protection against overloads & short circuits. It is widely used in control panels, distribution boards, & industrial electrical systems, ensuring safe & efficient circuit protection in single-phase or two-pole applications.
Purpose & Function
This switch disconnector fuse is designed for combined switching & protection:
• Ensures safe disconnection of electrical circuits
• Provides integrated DIN fuse-based protection against overload & faults
• Enables complete isolation during maintenance
• Prevents damage to connected equipment due to short circuits
• Supports efficient & controlled power distribution
Electrical Configuration
• Product type: Switch Disconnector Fuse (Open Execution, DIN Type)
• Rated current: 32A
• Rated voltage: 415V AC
• Poles: 2 Pole (2P)
• Frequency: 50/60 Hz
• Function: Switching, isolation, & fuse protection
Construction & Design
Engineered for compact & reliable performance:
• High-quality insulating materials for enhanced safety
• DIN type fuse mounting for standardized compatibility
• Integrated fuse system for protection & switching
• Open execution design for easy access & installation
• Compact & sturdy construction
Safety & Protection
• Provides protection against overload & short circuit conditions
• Ensures safe circuit isolation during maintenance
• Minimizes risk of electrical hazards & failures
• Protects connected equipment & wiring
• Enhances safety in control panels & switchgear systems
Mounting & Installation
• Designed for panel & DIN system compatibility
• Open execution allows easy wiring & fuse replacement
• Suitable for industrial & commercial installations
• Ensures secure & stable mounting
• Simplifies maintenance & servicing
Application Domains
• Control panels & distribution boards
• Industrial electrical systems
• Commercial electrical installations
• Machinery & equipment protection
• Low to medium current electrical circuits
• Infrastructure & utility systems
Key Features
• Rated 32A, 415V AC, 2 Pole configuration
• Switch disconnector with DIN type fuse protection
• Standardized DIN fuse compatibility
• Open execution design for easy operation
• Durable & compact construction
Applications
• Combined switching & circuit protection
• Control panel & distribution board systems
• Industrial & commercial installations
• Machinery protection & isolation
• Electrical circuit safety systems
FAQs
1. What is a switch disconnector fuse (SDF)?
Ans: It is a device that combines switching, isolation, & fuse-based protection in one unit.
2. What does DIN type fuse mean?
Ans: It refers to a standardized fuse design used widely in electrical systems for compatibility & easy replacement.
3. What does 2P (2 Pole) mean?
Ans: It means the device controls two conductors simultaneously.
4. What is the current rating?
Ans: It is rated for 32A applications.
5. What is the voltage rating?
Ans: The unit supports systems up to 415V AC.
6. Where is this device used?
Ans: It is used in control panels, distribution boards, & industrial applications.
7. Does it provide both protection & switching?
Ans: Yes, it offers both reliable circuit protection & switching functionality.
Overview
| Rated Operational Current (A) | 32A |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Fuse Type | DIN /Knife-edge |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 15000 |
| Rated Insulation Voltage Ui (V) | 690V |
| Rated Breaking Capacity@AC-23A (A) | 256 |
| Rated Making Capacity@AC-23A (A) | 320 |
| Version | Open Execution |
| No. of Poles | 2P |
| Maximum Al termination (sq.mm) | 35 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shrouds, Phase Barriers, Extended handle with shaft |
| Pollution Degree | 3 |
| Discount Percentage | Between 0-10 % |
