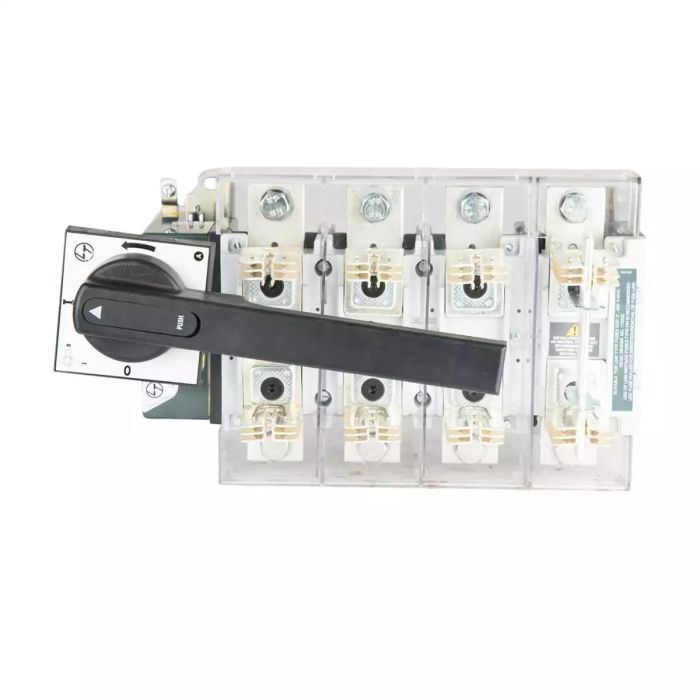

Lauritz Knudsen FN SDF (Switch Disconnector Fuse) 800A | 4 Pole | Open Execution DIN Type | Suitable for DIN fuse-link | Telescopic shaft for depth adjustment
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen FN SDF (Switch Disconnector Fuse) 800A | 4 Pole | Open Execution DIN Type | Suitable for DIN fuse-link | Telescopic shaft for depth adjustment
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen FN SDF 800A, 4 Pole, 415V AC Open Execution Switch Disconnector Fuse (DIN Type, 50/60 Hz) is an ultra high-capacity electrical device engineered to combine switch disconnection & DIN fuse-based protection into a single heavy-duty unit. Its open execution design enables seamless integration into switchgear panels & provides easy accessibility for wiring, inspection, & fuse replacement, while maintaining compatibility with standardized DIN fuse systems.
Constructed using premium-grade materials & advanced engineering, this switch disconnector fuse ensures reliable switching performance along with effective protection against overloads & short circuit conditions. It is widely used in high-capacity switchgear panels, distribution boards, & heavy industrial electrical installations, ensuring safe, stable, & efficient operation in demanding three-phase (4P) applications.
Purpose & Function
This switch disconnector fuse is designed for combined switching & circuit protection:
• Ensures safe disconnection of three-phase electrical circuits including neutral
• Provides integrated DIN fuse-based protection against overload & faults
• Enables complete isolation during maintenance
• Prevents damage to connected equipment due to short circuits
• Supports stable & controlled power distribution
Electrical Configuration
• Product type: Switch Disconnector Fuse (Open Execution, DIN Type)
• Rated current: 800A
• Rated voltage: 415V AC
• Poles: 4 Pole (4P)
• Frequency: 50/60 Hz
• Function: Switching, isolation, & fuse protection
Construction & Design
Engineered for ultra heavy-duty industrial performance:
• High-quality insulating materials for enhanced safety
• DIN type fuse mounting for standardized compatibility
• Integrated fuse system for efficient protection & switching
• Open execution design for easy installation & accessibility
• Ultra robust & durable construction for extreme load conditions
Safety & Protection
• Provides protection against overload & short circuit conditions
• Ensures safe circuit isolation during maintenance
• Minimizes risk of electrical hazards & system failures
• Protects connected equipment & wiring
• Enhances safety in switchgear & control panel systems
Mounting & Installation
• Designed for panel & DIN system compatibility
• Open execution allows easy wiring & fuse replacement
• Suitable for ultra heavy-duty industrial & commercial installations
• Ensures secure & stable mounting
• Simplifies maintenance & servicing
Application Domains
• Switchgear & control panels
• Ultra high-capacity three-phase power distribution systems
• Industrial electrical installations
• Large commercial electrical systems
• Heavy machinery & equipment protection
• Utility & infrastructure systems
Key Features
• Rated 800A, 415V AC, 4 Pole configuration
• Switch disconnector with DIN type fuse protection
• Standard DIN fuse compatibility
• Open execution design for easy operation
• Ultra heavy-duty industrial-grade construction
Applications
• Combined switching & circuit protection
• High-capacity switchgear & distribution systems
• Industrial & heavy-duty installations
• Machinery protection & isolation
• Electrical safety & power management
FAQs
1. What is a 4P switch disconnector fuse?
Ans: A 4 Pole (4P) device isolates all three phases & the neutral simultaneously for complete circuit safety.
2. What does 800A rating mean?
Ans: It indicates the device can safely handle up to 800 amperes of current.
3. What does DIN type fuse mean?
Ans: It refers to a standardized fuse design used for compatibility & easy replacement.
4. What is the voltage rating?
Ans: The unit is rated for 415V AC systems.
5. Where is this device used?
Ans: It is used in high-capacity switchgear panels, industrial distribution systems, & utility applications.
6. Does it provide both protection & switching?
Ans: Yes, it combines reliable switching with fuse-based circuit protection.
7. Why use a 4P configuration?
Ans: It ensures complete isolation including the neutral line, enhancing safety in three-phase systems.
Overview
| Rated Operational Current (A) | 800A |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Fuse Type | DIN /Knife-edge |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 10000 |
| Rated Insulation Voltage Ui (V) | 690V |
| Rated Breaking Capacity@AC-23A (A) | 6400 |
| Rated Making Capacity@AC-23A (A) | 8000 |
| Version | Open Execution |
| No. of Poles | 4P |
| Maximum Al termination (sq.mm) | 2 X 625 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shrouds, Phase Barriers, Extended handle with shaft |
| Pollution Degree | 3 |
| Discount Percentage | Between 0-10 % |
