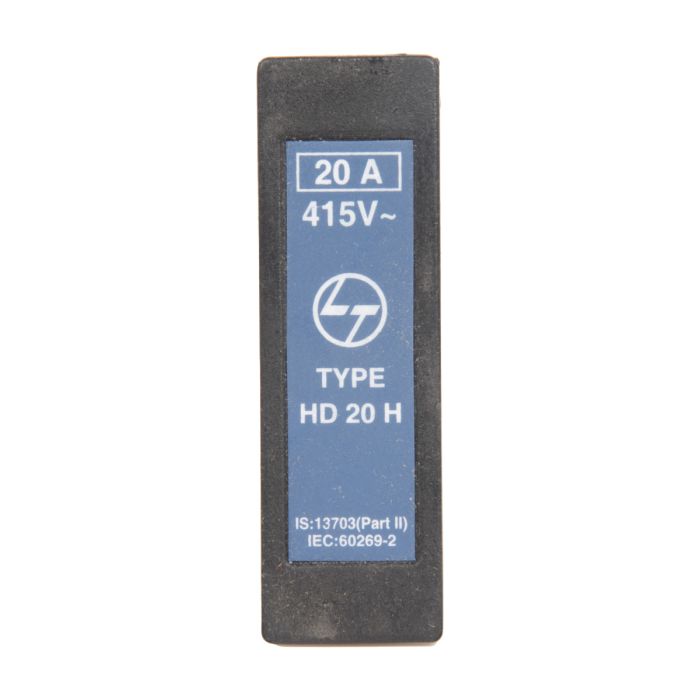

Lauritz Knudsen HRC Fusebase, HD 20H Bolted, 20A, 415V AC | Size F1 | Relay Range 2-20A | Both Side Cable (Front)| Consistent Performance Under High Fault Current Conditions
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen HRC Fusebase, HD 20H Bolted, 20A, 415V AC | Size F1 | Relay Range 2-20A | Both Side Cable (Front)| Consistent Performance Under High Fault Current Conditions
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen HD20H Bolted HRC Fuse Base (20A, 415V AC, Cable Type, Size F1) is a high-quality electrical accessory designed to securely hold & connect bolted HRC fuses in industrial & commercial power systems. With its cable-type connection design, it allows direct cable termination, ensuring stable electrical contact & efficient current flow.
Engineered as per industry standards, this fuse base provides excellent durability, insulation strength, & long service life. It is an essential component in HRC fuse protection systems used in switchgear panels & power distribution networks, ensuring reliable & safe operation.
Purpose & Function
This fuse base is designed to ensure secure & efficient fuse integration:
• Provides firm mounting for bolted HRC fuses
• Enables direct cable connections for reliable conductivity
• Supports efficient operation of circuit protection systems
• Allows easy fuse replacement & maintenance
• Enhances stability & performance of electrical installations
Electrical Configuration
• Product type: Bolted HRC Fuse Base (Cable Type)
• Rated current: 20A
• Rated voltage: 415V AC
• Size: F1
• Compatibility: Bolted HRC fuses
• Function: Fuse mounting & electrical connectivity
Construction & Design
Built for durability & reliable performance:
• High-quality insulating base material for safety
• Cable-type terminals for direct & secure wiring
• Bolted fuse mounting design for strong contact
• Compact Size F1 configuration
• Robust construction for long-term reliability
Safety & Protection
• Ensures secure holding & operation of HRC fuses
• Minimizes risk of loose connections or overheating
• Provides stable electrical contact for safe operation
• Enhances protection of switchgear & panel systems
• Supports dependable & controlled circuit protection
Mounting & Installation
• Easy installation in panel & switchgear systems
• Designed for cable termination connections
• Compatible with Size F1 bolted HRC fuses
• Quick fuse insertion & removal
• Simplifies maintenance & wiring operations
Application Domains
• Industrial electrical panels
• Power distribution systems
• Switchgear & control panels
• Commercial electrical installations
• Machinery & equipment protection
• Infrastructure & utility systems
Key Features
• Rated 20A, 415V AC
• Cable-type bolted HRC fuse base (Size F1)
• Secure fuse mounting with direct cable connection
• Durable & insulation-safe construction
• Easy installation & maintenance
Applications
• Mounting of bolted HRC fuses with cable termination
• Electrical circuit protection systems
• Industrial & commercial switchgear
• Power distribution panels
• Machinery & equipment safety systems
FAQs
1. What is a bolted HRC fuse base used for?
Ans: It is used to securely mount & connect bolted HRC fuses in electrical panels.
2. What is a cable-type fuse base?
Ans: It allows direct cable connections instead of busbar mounting.
3. What is the current rating?
Ans: It is rated for 20A applications.
4. What is the voltage rating?
Ans: It supports systems up to 415V AC.
5. What does Size F1 indicate?
Ans: It refers to the standard fuse size & compatibility.
6. Where is this fuse base used?
Ans: It is used in switchgear panels, distribution boards, & industrial installations.
7. Why is a fuse base important?
Ans: It ensures proper mounting & reliable operation of fuses for circuit protection.
Overview
| Rated Operational Current (A) | 20 |
|---|---|
| Fuse Type | Bolted |
| Suitability | F1 2-20A |
| Discount Percentage | Between 0-10 % |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
