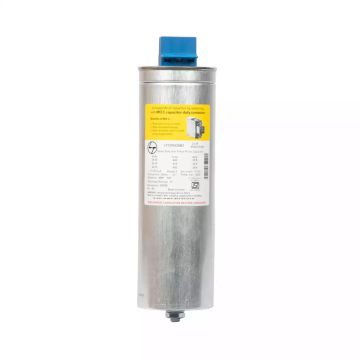

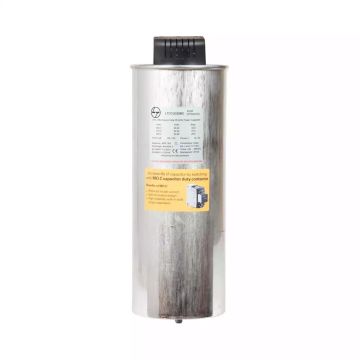

Heavy Duty Cylindrical Capacitor 13.2 kVAr 525 VAC
In stock
SKU
LTCCH313M2
Regular Price
₹6,164.00
Special Price
₹5,091.46
17% Off
( Prices are all inclusive of taxes )Heavy Duty Cylindrical Capacitor 13.2 kVAr 525 VAC
HSN Code - 85321000
HSN Code - 85321000
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
- Heavy Duty Capacitors are Metalized polypropylene capacitors with stacked winding and Non-PCB biodegradable resin impregnation.
- These capacitors are self healing type with safety features such as Over Pressure Disconnection and Finger-proof termination.
- These can be used to provide effective Power Factor correction in Process industries & commericial buildings with considerable harmonic content.
-
Over Voltage Withstand Ability10% (8h/24h), 15% (30m/24h), 20% (5m/24h), 30% (1m/24h)
-
Peak Inrush Current Withstand Ability250 × In
-
Height(mm)310
-
Diameter(mm)75
-
Total Operating Losses0.5 Watts / kVAr
-
Over Current Withstand Ability1.8 × In
-
Switching Operation Cycles Per Year7500
-
Operating Life Under Standard Conditions130000 hours
-
Ambient Temperature Range-40 ˚C to 55 ˚C
-
Discount PercentageBetween 0-10 %
