Description
About the Product

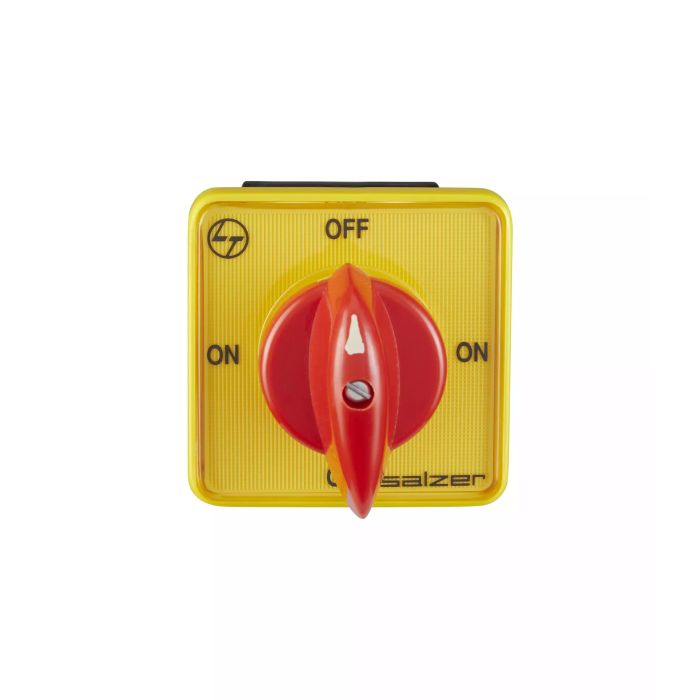

The Lauritz Knudsen Isolator Switch 200A 3 Pole ON/OFF is a high-capacity electrical switching device engineered to provide safe & reliable isolation of power circuits in demanding electrical systems. Designed for use in industrial power distribution networks, control panels, switchboards, & utility installations, it enables complete disconnection of the power supply whenever maintenance, servicing, or operational isolation is required.
Featuring a 200A current rating & 3 Pole configuration, the isolator switch is ideal for three-phase electrical systems where simultaneous isolation of all phase conductors is essential. It enhances safety for maintenance personnel, supports operational control, & provides secure electrical isolation for equipment & critical power circuits.
Manufactured with durable materials & a robust switching mechanism, this isolator switch delivers long-term performance, dependable operation, & reliability in heavy-duty applications.
How the Mechanism Works
The product functions by:
• Providing manual ON/OFF switching of electrical circuits
• Isolating connected loads from the power supply
• Disconnecting all three phase conductors simultaneously
• Supporting safe maintenance & servicing operations
• Preventing accidental energization of equipment
• Enhancing electrical safety in power systems
• Improving operational control of distribution circuits
• Maintaining reliable isolation performance
It serves as a dependable isolation device that enables safe power disconnection & operational control in industrial & commercial electrical installations.
Electrical Configuration
• Product Type: Isolator Switch
• Current Rating: 200A
• Pole Configuration: 3 Pole
• Operation: ON/OFF
• Application: Electrical Isolation & Power Switching
• Installation Type: Distribution Board & Control Panel Installation
• Suitable For: Three-Phase Electrical Systems
• Catalog Number: 61197SNB03TDYR
Construction & Design
Designed for heavy-duty isolation & switching:
• Heavy-duty switching mechanism
• 200A current carrying capacity
• 3-pole isolation configuration
• Durable housing construction
• Smooth ON/OFF operation
• Reliable electrical contacts
• Industrial-grade design
• Long operational lifespan
Safety & Protection
• Safe circuit isolation
• Reliable power disconnection
• Enhanced personnel safety
• Improved maintenance protection
• Dependable switching performance
• Reduced electrical hazards
• Long-term operational reliability
• Consistent electrical performance
Mounting & Durability
• Suitable for electrical distribution boards
• Compatible with industrial control panel installations
• Designed for three-phase applications
• Durable construction for long-term operation
• Reliable mechanical performance
• High-quality manufacturing standards
• Minimal maintenance requirements
• Suitable for demanding industrial environments
Application Domains
• Industrial Facilities
• Manufacturing Plants
• Utility Installations
• Commercial Buildings
• Infrastructure Projects
• Power Distribution Systems
• Electrical Switchboards
• Process Industries
Key Features
• Isolator switch
• 200A current rating
• 3 Pole configuration
• ON/OFF switching operation
• Reliable circuit isolation
• Safe power disconnection
• Heavy-duty industrial construction
• Three-phase compatibility
• Robust switching mechanism
• Long service life
Applications
• Three-phase circuit isolation
• Industrial power distribution
• Electrical maintenance isolation
• Switchboard installations
• Control panel switching
• Utility power control systems
• Process plant electrical networks
• Equipment disconnection applications
FAQs
1. What is the 61197SNB03TDYR Isolator Switch used for?
Ans: It is used for safely isolating & disconnecting electrical circuits during maintenance, servicing, & operational control.
2. What is the current rating of this isolator?
Ans: The isolator switch is rated at 200A.
3. What does 3 Pole mean?
Ans: A 3 Pole isolator simultaneously switches & isolates all three phase conductors in a three-phase electrical system.
4. Is this suitable for three-phase installations?
Ans: Yes, it is specifically designed for three-phase electrical systems.
5. What is the purpose of an isolator switch?
Ans: An isolator switch provides safe disconnection of electrical circuits for maintenance, servicing, emergency isolation, & operational control.
6. Where can this isolator be installed?
Ans: It can be installed in switchboards, control panels, industrial facilities, utility systems, power distribution networks, & commercial electrical installations.
7. Does it provide overload protection?
Ans: No, an isolator switch provides isolation & switching functionality only. Circuit protection should be provided by suitable devices such as MCCBs, MCBs, or fuses.
8. Does it require frequent maintenance?
Ans: No, its durable construction & reliable switching mechanism ensure long-term, low-maintenance operation under normal operating conditions.
Overview
| Conformance to IEC standards | IEC-60947-1/3/5/UL508 |
|---|---|
| Internationals & Environemnt Compliances Conformance | CE & ROHS |
| Type | Isolator Switch |
| No. of Poles | 3 |
| Current Rating | 200A |
| Color | Yellow Front Plate Red Knob |
| IP rating | 65 |
| No of Ways | on off |
| Knob or Handle | Tear Drop |
| Mounting Style | Standard Mounting |
| With OFF or Without OFF | With OFF |
| Rotation | 90 degree complete rotation |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
