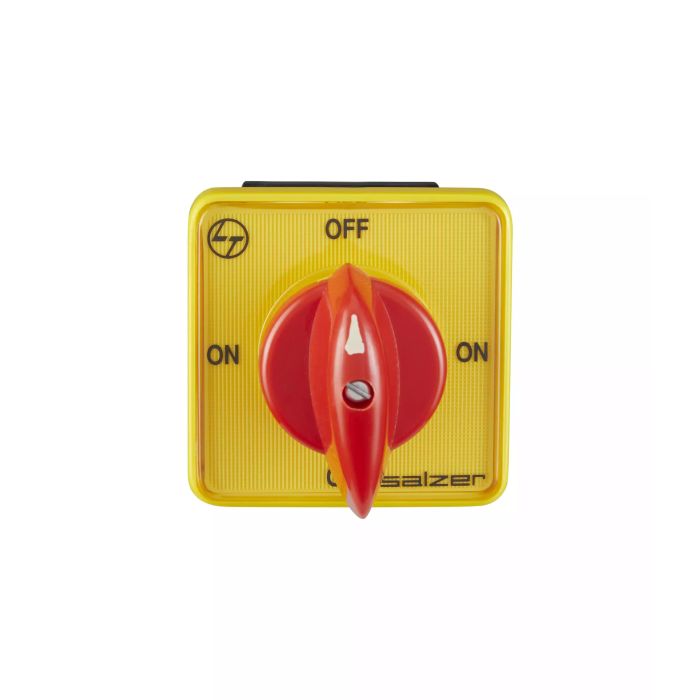

Lauritz Knudsen Isolator Switch, 6A | 2 Pole ON-OFF | 90 Degree Operation Complete Rotation | High‑Voltage DC Isolator
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen Isolator Switch, 6A | 2 Pole ON-OFF | 90 Degree Operation Complete Rotation | High‑Voltage DC Isolator
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen Isolator Switch 6A 2 Pole ON/OFF is a high-quality electrical switching device engineered to provide safe & reliable isolation of electrical circuits. Designed for low-current applications, control systems, & electrical installations, it enables complete disconnection of the power supply whenever maintenance, servicing, or operational isolation is required.
Featuring a 6A current rating & 2 Pole configuration, the isolator switch is suitable for switching & isolating both conductors in low-voltage electrical circuits. It enhances safety during maintenance activities while ensuring dependable operational control & circuit management.
Built with durable materials & a reliable switching mechanism, this isolator switch offers smooth operation, dependable performance, & long service life across residential, commercial, & industrial environments.
How the Mechanism Works
The product functions by:
• Providing manual ON/OFF switching of electrical circuits
• Isolating electrical loads from the power supply
• Disconnecting both conductors simultaneously
• Supporting safe maintenance & servicing operations
• Preventing accidental energization of equipment
• Enhancing electrical system safety
• Improving operational control of circuits
• Maintaining reliable circuit isolation performance
It serves as a dependable isolation device that enables safe power disconnection & operational control within electrical installations.
Electrical Configuration
• Product Type: Isolator Switch
• Current Rating: 6A
• Pole Configuration: 2 Pole
• Operation: ON/OFF
• Application: Electrical Isolation & Power Switching
• Installation Type: Control Panel & Electrical Installation
• Suitable For: Low-Current Electrical Circuits
• Catalog Number: 61198SAB13TDYR
Construction & Design
Designed for reliable isolation & switching:
• Compact switching mechanism
• 6A current carrying capacity
• 2-pole isolation configuration
• Durable housing construction
• Smooth ON/OFF operation
• Reliable electrical contacts
• Space-efficient installation design
• Long operational lifespan
Safety & Protection
• Safe circuit isolation
• Reliable power disconnection
• Simultaneous conductor isolation
• Enhanced personnel safety
• Improved maintenance protection
• Dependable switching performance
• Reduced electrical hazards
• Long-term operational reliability
Mounting & Durability
• Suitable for electrical panels & control systems
• Compatible with low-current electrical applications
• Compact & space-saving design
• Durable construction for long-term use
• Reliable mechanical operation
• High-quality manufacturing standards
• Minimal maintenance requirements
• Suitable for residential & commercial environments
Application Domains
• Residential Buildings
• Commercial Buildings
• Offices
• Control Panels
• Instrumentation Systems
• Automation Systems
• Educational Institutions
• Light Industrial Facilities
Key Features
• Isolator switch
• 6A current rating
• 2 Pole configuration
• ON/OFF switching operation
• Reliable circuit isolation
• Safe power disconnection
• Compact construction
• Durable contact system
• Easy installation
• Long service life
Applications
• Control circuit isolation
• Instrumentation system switching
• Signaling circuit isolation
• Automation control systems
• Electrical maintenance isolation
• Commercial electrical systems
• Industrial control panels
• Low-current electrical installations
FAQs
1. What is the 61198SAB13TDYR Isolator Switch used for?
Ans: It is used for safely isolating & disconnecting electrical circuits during maintenance, servicing, & operational control.
2. What is the current rating of this isolator?
Ans: The isolator switch is rated at 6A.
3. What does 2 Pole mean?
Ans: A 2 Pole isolator simultaneously switches & isolates two conductors within an electrical circuit.
4. Where can this isolator be installed?
Ans: It can be installed in control panels, instrumentation systems, automation equipment, commercial installations, & low-current electrical circuits.
5. Is it suitable for single-phase circuits?
Ans: Yes, the 2 Pole configuration makes it suitable for single-phase circuits requiring simultaneous conductor isolation.
6. What is the purpose of an isolator switch?
Ans: An isolator switch provides safe disconnection of electrical circuits for maintenance, servicing, emergency isolation, & operational control.
7. Does it provide overload protection?
Ans: No, an isolator switch provides circuit isolation & switching functionality. Circuit protection should be provided by suitable protective devices such as fuses or circuit breakers.
8. Does it require frequent maintenance?
Ans: No, its durable construction & reliable switching mechanism ensure long-term, low-maintenance operation under normal operating conditions.
Overview
| Conformance to IEC standards | IEC-60947-1/3/5/UL508 |
|---|---|
| Internationals & Environemnt Compliances Conformance | CE & ROHS |
| Type | Isolator Switch |
| No. of Poles | 2 |
| Current Rating | 6A |
| Color | Yellow Front Plate Red Knob |
| IP rating | 65 |
| No of Ways | on off |
| Knob or Handle | Tear Drop |
| Mounting Style | Standard Mounting |
| With OFF or Without OFF | With OFF |
| Rotation | 90 degree Complete Rotation |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
