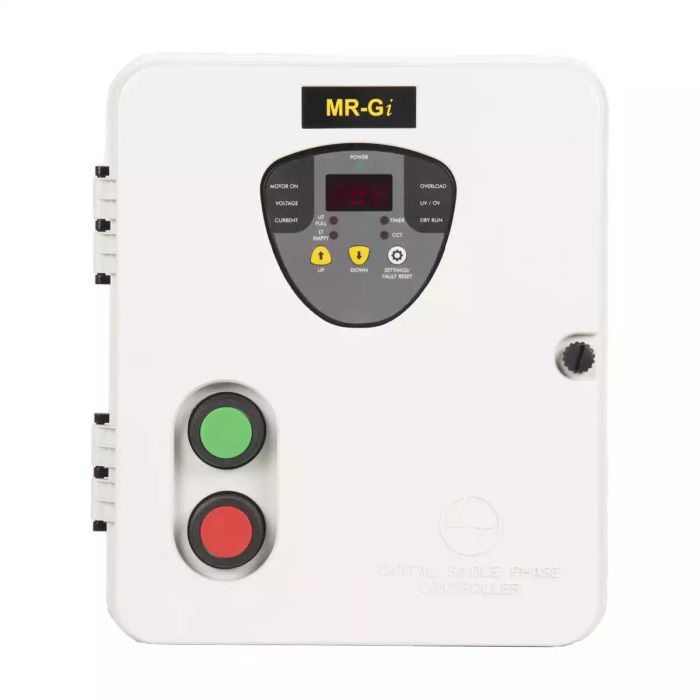

Lauritz Knudsen MR-Gi Digital Single Phase Controller - for Submersible Pump of 1.5 HP, Start Capacitor of 150/200, Run Capacitor of 2X36 MFD | with Off Timer| Manual Version
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen CS91323NDOF from the ITLK Digital Controller Series is a high-performance single-phase submersible pump controller designed for reliable control, starting, & protection of 1.5 HP submersible pump motors. Engineered for residential, commercial, agricultural, & small industrial water pumping applications, this controller ensures dependable pump operation while helping improve motor efficiency & operational reliability.
Designed with a manual start configuration, the controller allows operators to initiate pump operation whenever required. Its advanced digital control system delivers stable pump performance while minimizing operational interruptions & helping maintain efficient water delivery in demanding environments.
The CS91323NDOF features a 150–200 run winding configuration & a dual capacitor arrangement of 2 × 36 µF, providing enhanced starting torque, smoother motor operation, & improved performance under varying voltage & load conditions. This optimized electrical configuration supports efficient starting & dependable operation of single-phase submersible motors.
The controller is designed to protect connected pump motors from common electrical disturbances, helping reduce maintenance requirements & extend equipment life. Its compact & durable enclosure allows easy installation & secure integration into control panels, wall-mounted systems, & pump control installations.
Built for long service life & dependable operation, the CS91323NDOF is widely used in borewell pumps, domestic water supply systems, irrigation applications, & commercial pumping installations where reliable motor control & protection are critical.
How the Mechanism Works
• Controls starting & operation of single-phase submersible pumps
• Provides manual start functionality for operator-controlled operation
• Utilizes digital control technology for stable pump performance
• Supports efficient motor starting through dual capacitor configuration
• Enhances motor starting torque & running efficiency
• Helps maintain consistent pump operation under varying load conditions
• Supports reliable water delivery in pumping applications
• Protects pump motors from common electrical disturbances
• Reduces stress on motor windings during startup
• Improves operational reliability & system stability
• Assists in extending motor service life
• Supports energy-efficient operation of pumping systems
• Helps reduce downtime & maintenance requirements
• Improves overall pump system performance
• Enables dependable operation in residential & commercial installations
By providing motor control, starting support, & protection functions, the controller ensures reliable & efficient operation of submersible pump systems.
Electrical Configuration
• Product Type: Digital Submersible Pump Controller
• Series: ITLK Digital Controller Series
• Model: CS91323NDOF
• Pump Capacity: 1.5 HP
• Pump Type Compatibility: Single Phase Submersible Pump
• Start Type: Manual Start
• Run Winding Configuration: 150–200
• Capacitor Configuration: 2 × 36 µF
• Control Technology: Digital Controller
• Mounting Type: Panel / Wall Mounted
• Application: Pump Control & Protection
• Installation Environment: Residential, Commercial, Agricultural, & Industrial Applications
Construction & Design
Built for reliable pump control applications:
• Compact & durable controller enclosure
• Digital control circuitry for stable operation
• Engineered for single-phase submersible pump applications
• Manual start operating configuration
• Optimized run winding compatibility
• Dual capacitor motor starting configuration
• Robust internal component design
• Reliable electrical performance under varying conditions
• Easy installation & integration into pump systems
• Designed for long operational service life
• Suitable for continuous pump operation applications
• Industrial-grade construction quality
• Low-maintenance operational design
Safety & Protection
• Reliable pump motor control
• Stable motor starting performance
• Improved operational reliability
• Enhanced motor protection capability
• Reduced risk of electrical disturbances affecting pump operation
• Improved motor efficiency & performance
• Long-term equipment reliability
• Reduced maintenance requirements
• Enhanced operational stability
• Smooth motor startup & operation
• Reliable water pumping system performance
• Extended motor service life
• Consistent performance under varying load conditions
Mounting & Durability
• Compact footprint for installation flexibility
• Suitable for panel-mounted applications
• Wall-mount installation compatibility
• Durable enclosure construction
• Designed for long-term field operation
• Reliable performance in demanding environments
• Easy integration into existing pump systems
• Secure installation arrangement
• Minimal maintenance requirements
• Suitable for continuous-duty applications
• Built for dependable long-term operation
Application Domains
• Borewell Submersible Pump Systems
• Residential Water Supply Systems
• Commercial Water Pumping Installations
• Agricultural Irrigation Applications
• Small Industrial Pump Systems
• Water Distribution Systems
• Groundwater Extraction Applications
• Building Water Supply Networks
• Farm Water Pump Installations
• Utility Water Pumping Systems
• Rural Water Supply Projects
• Continuous-Duty Pumping Applications
Key Features
• Supports 1.5 HP single-phase submersible pumps
• Digital controller technology
• Manual start operation
• 150–200 run winding configuration
• Dual capacitor arrangement (2 × 36 µF)
• Reliable motor control & protection
• Enhanced starting performance
• Stable pump operation
• Compact & durable construction
• Easy installation & system integration
• Long service life & dependable operation
Applications
• Borewell submersible pump systems
• Residential water supply systems
• Commercial water pumping applications
• Agricultural irrigation systems
• Small industrial pumping installations
• Water distribution projects
• Groundwater extraction applications
• Rural & community water systems
• Building utility pump systems
• General-purpose water pumping applications
FAQs
1. What is the CS91323NDOF controller used for?
Ans: It is used to control & protect single-phase submersible pumps, ensuring reliable operation & improved motor performance in water pumping applications.
2. What motor capacity does this controller support?
Ans: The controller is designed for 1.5 HP single-phase submersible pump motors.
3. Does it have automatic or manual start?
Ans: The CS91323NDOF features a manual start configuration, allowing operators to start the pump when required.
4. What is the run winding configuration?
Ans: The controller is designed for motors with a 150–200 run winding configuration.
5. What is the capacitor configuration?
Ans: It utilizes a dual capacitor arrangement consisting of 2 × 36 µF capacitors for efficient motor starting & operation.
6. What type of pump systems is it suitable for?
Ans: It is suitable for borewell pumps, submersible pumps, residential water supply systems, irrigation setups, & commercial pumping applications.
7. Can it be used in industrial environments?
Ans: Yes. The controller is suitable for residential, commercial, agricultural, & small industrial pumping applications.
8. What are the benefits of the digital control system?
Ans: The digital control system provides reliable motor operation, improved system stability, enhanced protection, & consistent pump performance while helping extend equipment life.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Terminal Capacity | 2 x 6 sq.mm (solid conductor) 1 x 6 sq.mm (stranded) Lug with max. width of 8.5 mm |
| Main contactor | Electronic |
| Mechanical Life | 0.5 million |
| Service temperature | -5 ˚C to +55 ˚C |
| Type co-ordination | Type 2 |
| Electrical life (Operating Cylces) | 0.1 million |
| Enclosure | Plastic |
| Rated operational current (Ie) (AC-3) | 17 A |
| Rated operational current (Ie) (AC-1) | 30 A |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated Insulation Voltage Ui (V) | 690 V |
| Rated operational voltage (Ue) | 240 V |
| Auto/Manual | Manual |
| With/ Without WLC | Without WLC |
| Run Capacitor | 2X36 |
| Start Capacitor | 150/200 |
| HP | 1.5HP |
| Length(mm) | 250 |
| Breadth(mm) | 87 |
| Height(mm) | 287 |
