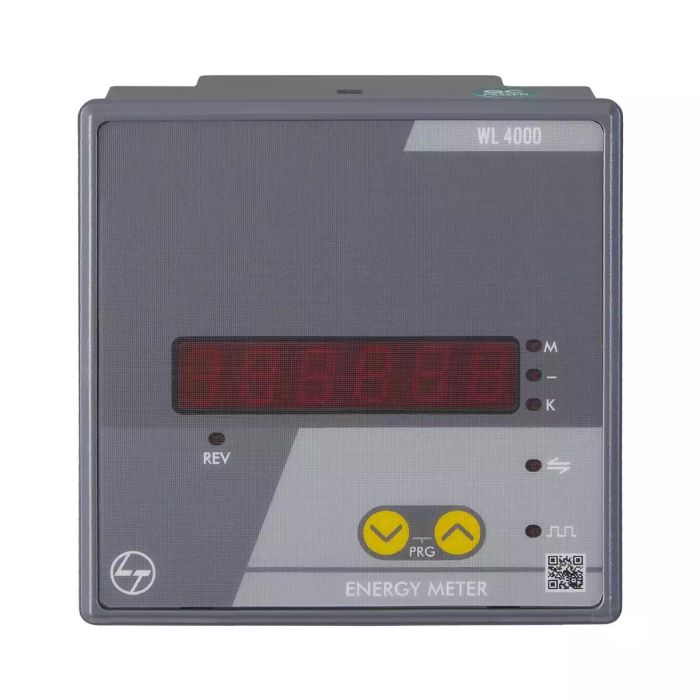

Lauritz Knudsen Digital kWh Meter LED Cl 1 with RS485 - Energy Meter
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- True RMS measurement
- Auto-scaling of Kilo, Mega, Giga values
- Auto scrolling
- Simultaneous sampling of Volts & Amps
- Accuracy Class 1 as per IEC 62053-21 and Class 0.5 as per IEC 62053-22
- Positive energy accumulation even with CT polarity reversal, reverse lock programmable
- Low PT, CT burden
- Programmable PT, CT ratio
- User programmable password protection
- Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 phase
- Old register to store the previously cleared energy value
- Wide operating range of 80 to 300 V AC/DC auxiliary supply
- Site selectable 1A/5A CT secondary
- Suitable with EMS, PMS, SCADA Softwares
Lauritz Knudsen Digital Panel Meter Class 1 used for Measurement of Energy.
Salient Propositions and Features:
Packing Inclusions: Meter, Manual, Calibration Report, Panel Fixing & Screws
This Meter can be used at Residential / Industrial PCC / MCC Power Distribution Panel to measure Active Energy.
Overview
| Length(mm) | 58 |
|---|---|
| Height(mm) | 96 |
| Width(mm) | 96 |
| Communication | With RS 485 |
| Type of Measurement | 3 Phase 3 Wire, 3 Phase 4 Wire & 1 Phase |
| Type of Measurement - 2 | Na |
| Display & Resolution | Single Line LED - 4 Digit |
| Weight (in grams) | 300 |
| Phase | 1 & 3 Ph |
| Size | 96x96x58 mm |
| Accuracy Class | CL 1 |
| Warranty | 1 Year |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
