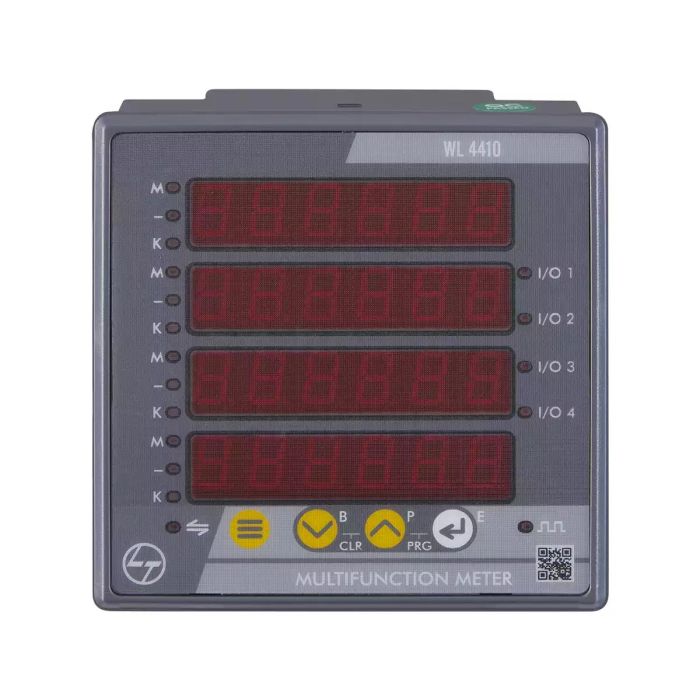

Digital LED Multifunction Meter Cl 1 with RS485
LED meter Cl 1 with RS485
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
- Accuracy Class 1 as per IEC 62053-21 and Class 0.5, 0.5S, 0.2, 0.2S as per IEC 62053-22
- True RMS measurement
- Expert in Load monitoring
- THD for Voltage and Current
- Password protection provision for security
- Maximum Demand measurement with Real Time Clock
- Auto scrolling and freeze mode for constant single page viewing available
- Terminals with sealing provision (optional)
- My Favourite screen option for user selectable parameters in LCD series
- Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 Phase
- Direct access key for Basic parameters, Power and Energy parameters
- Suitable with EMS, PMS, SCADA Softwares
This Multifunction Meter having a feature of Measuring the Voltage, Current, Frequency, Power, Energy, Rotation per Minute, No. of inturreption, % Voltage & Current THD and Min & Max values of all Basic Parameters.
Salient Propositions and Features:
Packing Inclusions: Meter, Manual, Calibration Report, Panel Fixing & Screws
-
Length(mm)58
-
Height(mm)96
-
Width(mm)96
-
CommunicationWith RS 485
-
Type of Measurement3 Phase 3 Wire, 3 Phase 4 Wire & 1 Phase
-
Type of Measurement - 2True Root Mean Square Values with 128 Samples per Cycle
-
Display & Resolution4 Line LED - 4 Digit for Instantaneous & 6 Digit Cumulative
-
Weight (in grams)300
-
Phase1 & 3 Ph
-
Size96x96x58 mm
-
Accuracy ClassCL 1
-
Warranty1 Year
