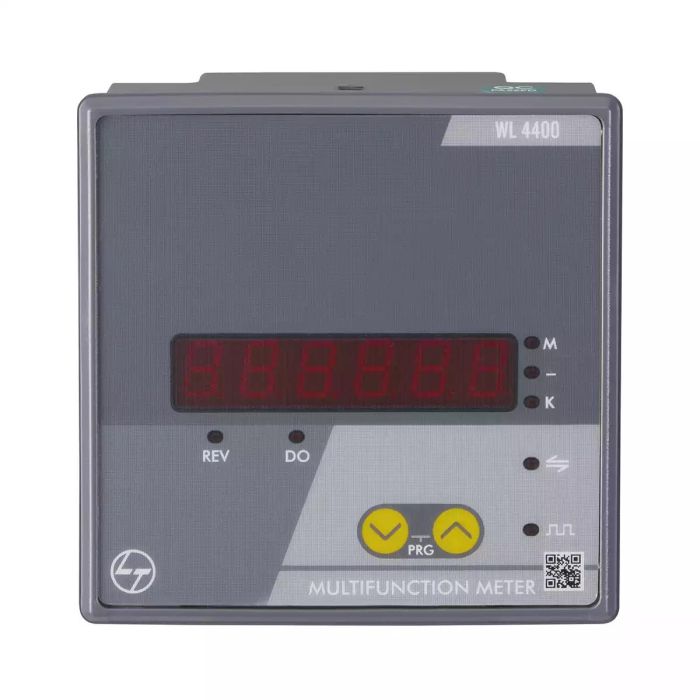

Lauritz Knudsen Digital LED Basic Multifunction Meter Cl 1 without RS485

WL440010OOOO
5 (1 reviews)

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

    This is a basic Multifinction Meter which is used to Measure the Voltage, Current, Frequency, Power, Energy & Power Factor with Class 1 Accuracy.

    Salient Propositions and Features:

  • Accuracy Class 1 as per IEC 62053-21 and Class 0.5, 0.5S, 0.2, 0.2S as per IEC 62053-22
  • True RMS measurement
  • Expert in Load monitoring
  • Password protection provision for security
  • Auto scrolling and freeze mode for constant single page viewing available
  • Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 Phase
  • Direct access key for Basic parameters, Power and Energy parameters

    • Packet Inclusions: Meter, Manual, Calibration Report, Panel Fixing & Screws

Product Details

Length(mm) 58
Height(mm) 96
Width(mm) 96
Communication Without RS 485
Type of Measurement 3 Phase 3 Wire, 3 Phase 4 Wire & 1 Phase
Type of Measurement - 2 True Root Mean Square Values with 128 Samples per Cycle
Display & Resolution 4 Line LED - 4 Digit for Instantaneous & 6 Digit Cumulative
Weight (in grams) 300
Phase 1 & 3 Ph
Size 96x96x58 mm
Accuracy Class CL 1
Warranty 1 Year
