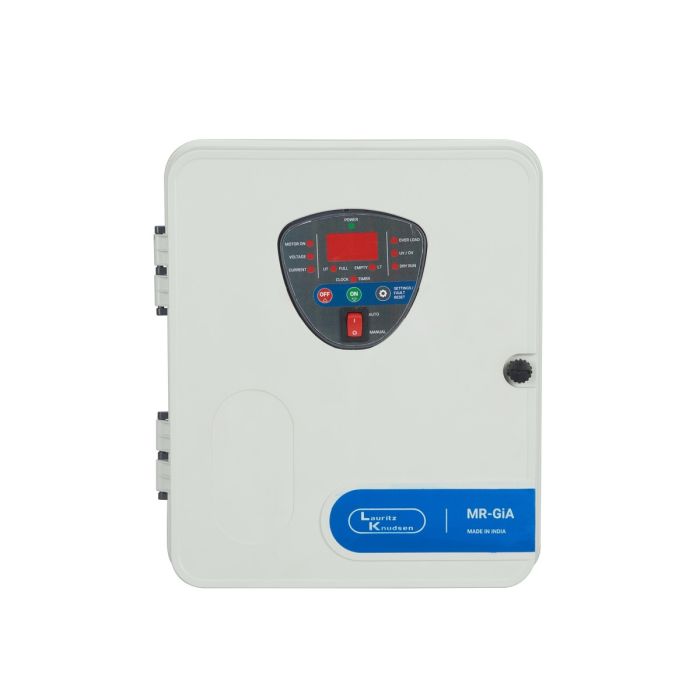

Lauritz Knudsen MR-GiA Digital Single Phase Controller - for Submersible Pump of 1.5 HP, Start Capacitor of 120/150, Run Capacitor of 1X50 MFD | with Auto & Manual mode| Auto + Water Level Controller (WLC)
SKU :
CS91333NCOG
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CS91333NCOG
Lauritz Knudsen MR-GiA Digital Single Phase Controller - for Submersible Pump of 1.5 HP, Start Capacitor of 120/150, Run Capacitor of 1X50 MFD | with Auto & Manual mode| Auto + Water Level Controller (WLC)
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹6,620.00
₹5,319.44
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping:
Out of stock
Lauritz Knudsen MR-GiA Digital Single Phase Controller - for Submersible Pump of 1.5 HP, Start Capacitor of 120/150, Run Capacitor of 1X50 MFD | with Auto & Manual mode| Auto + Water Level Controller (WLC)
₹6,620.00
₹5,319.44
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
Features: 1.Hassle free current setting ensures convenience
2.Real time-based timer ensures automatic pump ON/OFF as per time settings.
3. Cyclic timer ensures pump ON/OFF periodically.
4. Provides flexibility to operate pump by making up for lost time due to power supply failure with timer compensation feature.
5. Automatic ON/OFF to fill up one tank/ two tank system with in-built WLC.
6. WLC Bypass feature is available.
7. Provides tank full / tank empty indication for WLC operation
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Terminal Capacity | 2 x 6 sq.mm (solid conductor) 1 x 6 sq.mm (stranded) Lug with max. width of 8.5 mm |
| Main contactor | Electronic |
| Mechanical Life | 0.5 million |
| Service temperature | -5 ˚C to +55 ˚C |
| Type co-ordination | Type 2 |
| Electrical life (Operating Cylces) | 0.1 million |
| Enclosure | Plastic |
| Rated operational current (Ie) (AC-3) | 17 A |
| Rated operational current (Ie) (AC-1) | 30 A |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated Insulation Voltage Ui (V) | 690 V |
| Rated operational voltage (Ue) | 240 V |
| Auto/Manual | Auto |
| With/ Without WLC | With WLC |
| Run Capacitor | 1X50 |
| Start Capacitor | 120/150 |
| HP | 1.5HP |
| Length(mm) | 250 |
| Breadth(mm) | 87 |
| Height(mm) | 287 |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
