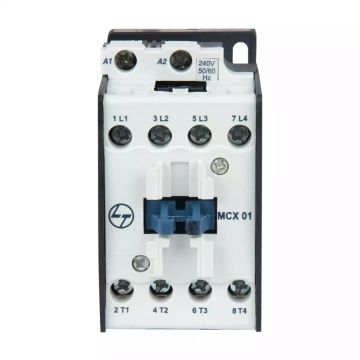

MCX Contactor 16A 4P 415V AC AC-1 240V AC Coil 50/60 Hz
CS97009BOOO
₹1,270.00
₹824.23
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
CS97009BOOO
MCX Contactor 16A 4P 415V AC AC-1 240V AC Coil 50/60 Hz
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
MCX Contactor 16A 4P 415V AC AC-1 240V AC Coil 50/60 Hz
₹1,270.00
₹824.23
Description
- MCX range of 4 pole contactors is available from 16A to 800A AC-1.
- The contactors are widely used in conjunction with auto source transfer controller for transfer of power from mains to backup supply.
Product Details
| Ambient temperature | -20 to 60 degree C |
|---|---|
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 16A (AC1) |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 4P |
| Height(mm) | 83 |
| Width(mm) | 45 |
| Depth(mm) | 83.7 |
| Coil Operating band %Uc (Pick up) | 55 - 120 % |
| Coil Operating band %Uc (Drop off) | 30 - 50 % |
| Pick up VA consumption | 68VA |
| Hold on VA consumption | 11VA |
