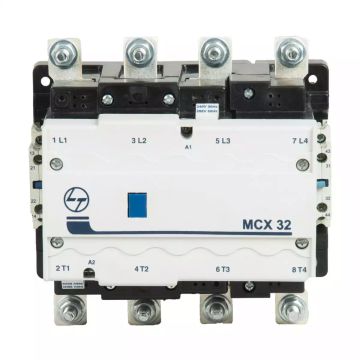

MCX Contactor 200A 4P 415V AC In Built 2NO+2NC AC-1 110V AC Coil 50/60 Hz (CS97020AOOO)

CS97020AOOO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • MCX range of 4 pole contactors is available from 16A to 800A AC-1.
  • The contactors are widely used in conjunction with auto source transfer controller for transfer of power from mains to backup supply.

Product Details

Ambient temperature -20 to 60 degree C
Rated impulse withstand voltage (Uimp) 8kV
Rated Insulation Voltage Ui (V) 1000V
Conformance to Standards IS/IEC 6094741, IEC 6094741
Coil Voltage 110 V AC
Rated operational current at 415V 160A (AC1)
Discount Percentage Between 0-10 %
No. of Poles 4P
Height(mm) 175
Width(mm) 183.5
Depth(mm) 152
Coil Operating band %Uc (Pick up) 80 - 110 %
Coil Operating band %Uc (Drop off) 35 - 65 %
Pick up VA consumption 550VA
Hold on VA consumption 36VA
