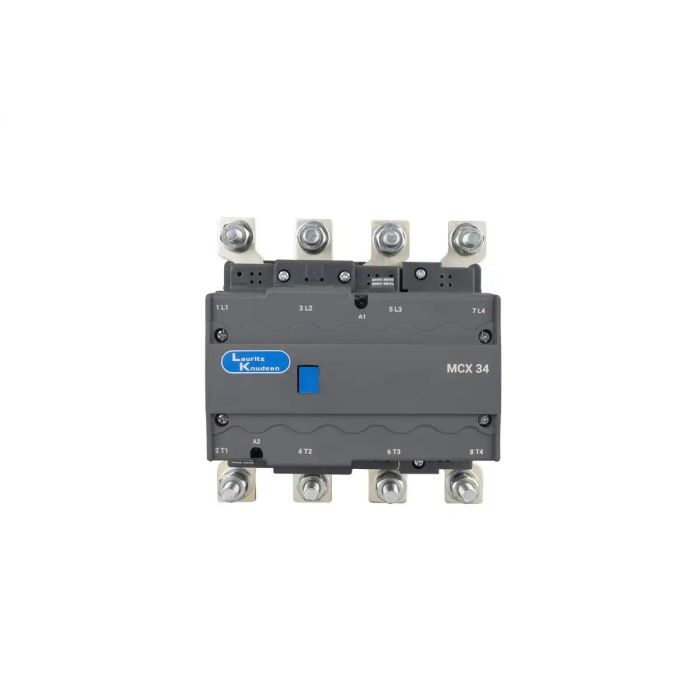

Lauritz Knudsen MCX Power Contactor 255A, 4 Pole, 415V AC | AC1 Rating - 240A | with 2 Inbuilt + 2 in auxilary contacts | 50/60 Hz | Electrical Coil
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen MCX Power Contactor 255A, 4 Pole, 415V AC | AC1 Rating - 240A | with 2 Inbuilt + 2 in auxilary contacts | 50/60 Hz | Electrical Coil
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

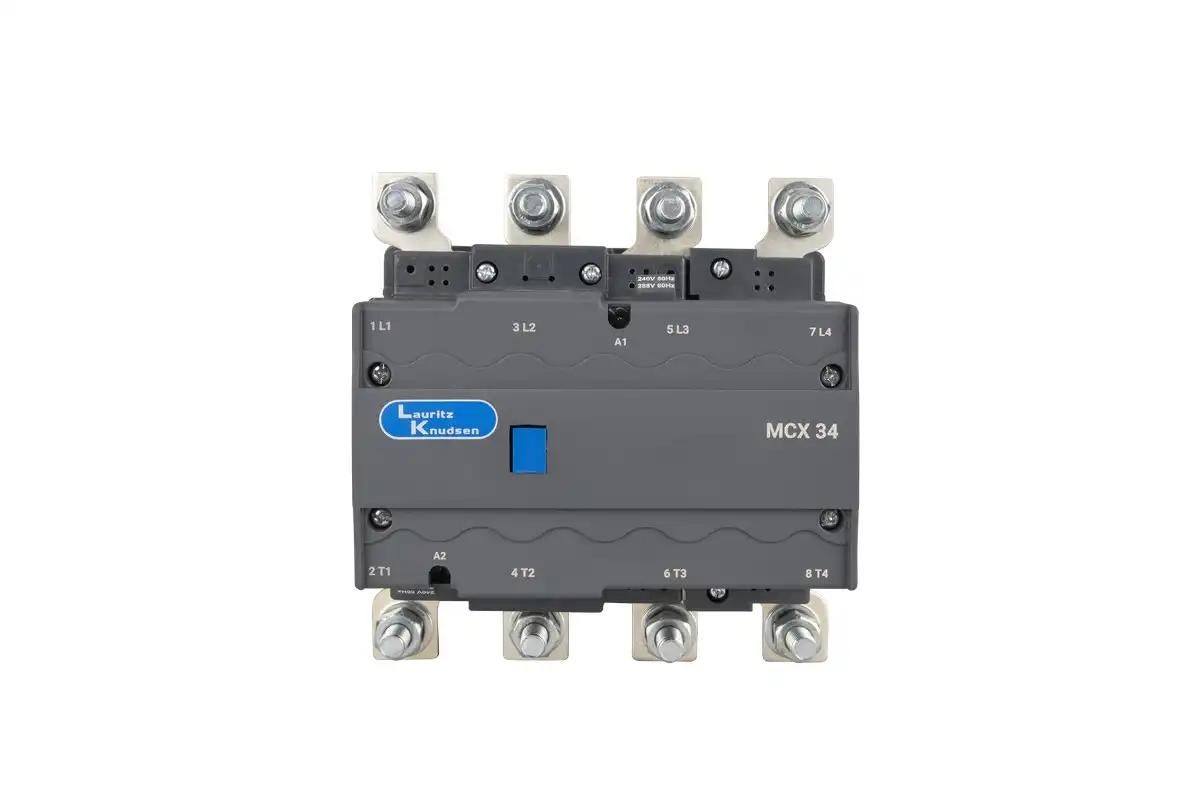

The Lauritz Knudsen MCX Contactor 255A 4P 415V AC (AC 1) with In-Built 2NO + 2NC & 240V AC Coil (50–60 Hz) is an ultra high-capacity switching device engineered to deliver reliable control of large electrical loads in demanding industrial & commercial environments. With a 255A current rating & a 4 pole configuration, it is ideal for high-power multi-phase systems & mission-critical applications requiring robust performance.
This model features integrated auxiliary contacts (2 normally open + 2 normally closed), eliminating the need for additional auxiliary blocks while providing enhanced functionality for control, interlocking, & signaling. Designed for AC 1 duty applications, it is suitable for switching resistive & non-inductive loads, such as heating systems, power distribution networks, & heavy-duty electrical circuits.
The 240V AC coil ensures compatibility with commonly used control voltage systems, enabling stable, efficient, & consistent operation. Built using high-quality materials & precision engineering, it offers extended service life, dependable switching performance, & superior durability even in harsh industrial environments.
Purpose & Function
This contactor is designed for ultra high-capacity switching & advanced control:
• Enables safe switching of very high-capacity electrical circuits
• Controls resistive loads under AC 1 utilization category
• Provides built-in auxiliary contacts for signaling & interlocking
• Enhances automation system monitoring & feedback
• Improves system efficiency, safety, & operational reliability
Electrical Configuration
• Product type: Contactor
• Model: MCX
• Rated current: 255A
• Number of poles: 4P
• Voltage rating: 415V AC
• Utilization category: AC 1 (resistive loads)
• Auxiliary contacts: In-built 2NO + 2NC
• Coil voltage: 240V AC
• Frequency: 50–60 Hz
• Function: Electrical switching, signaling, & load control
Construction & Design
Engineered for extreme industrial applications:
• High-quality contacts for superior conductivity & performance
• Integrated auxiliary contacts reduce need for additional components
• Heavy-duty construction ensures long operational life
• Compact & modular design for efficient panel integration
• Precision-engineered mechanism for reliable & consistent switching
Safety & Protection
• Ensures safe operation under extreme load conditions
• Reduces risk of electrical faults & equipment damage
• Provides accurate operational feedback through auxiliary contacts
• Enhances safety in control, interlocking, & monitoring systems
• Improves overall system reliability & stability
Mounting & Installation
• Designed for panel mounting in industrial applications
• Compact design optimizes control panel space utilization
• Simplified wiring with built-in auxiliary contacts
• Quick & secure installation process
• Ensures stable & reliable electrical connections
Application Domains
• Heavy industrial control panels
• Automation & PLC systems
• Power distribution networks
• Ultra high-capacity resistive load switching
• Infrastructure & large commercial installations
• Electrical control & protection systems
Key Features
• 255A rated MCX contactor
• 4-pole configuration for ultra high-load applications
• In-built 2NO + 2NC auxiliary contacts
• 240V AC coil (50–60 Hz)
• Ultra heavy-duty & reliable industrial design
Applications
• Ultra high-capacity load switching
• Industrial automation & process control
• Large power distribution systems
• Interlocking & signaling circuits
• Heating & heavy electrical load management
FAQs
1. What is a contactor?
Ans: A contactor is an electrical switch used to control high-power circuits safely & efficiently.
2. What does 2NO + 2NC mean?
Ans: It refers to two normally open & two normally closed auxiliary contacts used for control, signaling, & interlocking.
3. What is AC 1 duty?
Ans: AC 1 refers to switching resistive or non-inductive loads such as heating systems & power distribution circuits.
4. What is the coil voltage?
Ans: This model operates with a 240V AC control coil.
5. Where is this contactor used?
Ans: It is used in heavy industrial applications, automation systems, & large power distribution panels.
6. What is the benefit of built-in auxiliary contacts?
Ans: They reduce installation complexity & improve control, feedback, & monitoring capabilities.
7. Is installation easy?
Ans: Yes, it is designed for quick & secure installation in industrial control panels.
Overview
| Ambient temperature | -20 to 60 degree C |
|---|---|
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 255A (AC1) |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 4P |
| Height(mm) | 175 |
| Width(mm) | 183.5 |
| Depth(mm) | 152 |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 550VA |
| Hold on VA consumption | 36VA |
