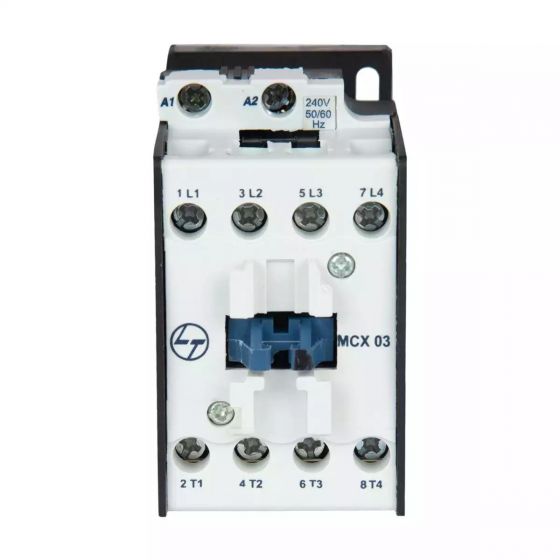

Lauritz Knudsen MCX Power Contactor 32A, 4 Pole, 415V AC | AC1 Rating - 240A | 50/60 Hz | Electrical Coil
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen MCX Contactor 32A 4P 415V AC (AC 1) with 240V AC Coil (50–60 Hz) is a high-capacity & reliable switching device engineered for controlling electrical loads in industrial & commercial systems. With a 32A current rating & 4 pole configuration, it is ideal for handling higher load applications in multi-phase environments.
Designed for AC 1 duty, this contactor is suitable for switching resistive & non-inductive loads, such as heaters & power distribution circuits. The 240V AC coil ensures compatibility with widely used control circuit voltages, offering stable & efficient operation. Built with premium materials & precision engineering, it ensures long-lasting durability, consistent performance, & dependable operation in demanding conditions.
Purpose & Function
This contactor is designed for efficient electrical switching & control:
• Enables safe switching of electrical circuits & loads
• Controls resistive loads under AC 1 utilization category
• Ensures reliable operation in automation systems
• Supports efficient power distribution management
• Enhances overall system safety & efficiency
Electrical Configuration
• Product type: Contactor
• Model: MCX
• Rated current: 32A
• Number of poles: 4P
• Voltage rating: 415V AC
• Utilization category: AC 1 (resistive loads)
• Coil voltage: 240V AC
• Frequency: 50–60 Hz
• Function: Electrical switching & load control
Construction & Design
Engineered for durability & high-performance operation:
• High-quality contacts for superior electrical conductivity
• Compact & modular design for efficient panel integration
• Robust construction ensures long service life
• Precision-engineered switching mechanism for reliability
• Suitable for demanding industrial applications
Safety & Protection
• Ensures safe switching under rated load conditions
• Reduces risk of electrical faults & system failures
• Provides stable & consistent performance
• Enhances safety of control circuits
• Improves overall system reliability
Mounting & Installation
• Suitable for panel or DIN rail mounting
• Compact design optimizes control panel space
• Quick & easy installation process
• Ensures secure & stable connections
• Compatible with standard industrial systems
Application Domains
• Industrial control panels
• Automation & PLC systems
• Power distribution systems
• Resistive load switching applications
• Commercial & infrastructure installations
• Electrical control & switching systems
Key Features
• 32A rated MCX contactor
• 4-pole configuration for multi-circuit control
• 415V AC operational voltage
• 240V AC coil (50–60 Hz)
• Reliable & durable industrial design
Applications
• Switching of resistive loads
• Industrial automation systems
• Control panels & switchgear assemblies
• Power distribution control
• Heating & electrical load systems
FAQs
1. What is a contactor?
Ans: A contactor is an electrical device used to switch & control power circuits safely.
2. What does 4P mean?
Ans: It indicates a four-pole contactor capable of controlling four separate circuits.
3. What is AC 1 duty?
Ans: AC 1 refers to switching resistive or non-inductive loads such as heating systems.
4. What is the coil voltage?
Ans: This contactor operates with a 240V AC control coil.
5. Where is this contactor used?
Ans: It is used in industrial control panels, automation systems, & power distribution circuits.
6. Is it suitable for motor loads?
Ans: It is mainly intended for resistive loads; motor loads typically require AC 3 rated contactors.
7. Is installation easy?
Ans: Yes, it is designed for quick & secure installation in standard control panels.
Overview
| Ambient temperature | -20 to 60 degree C |
|---|---|
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 32A (AC1) |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 4P |
| Height(mm) | 83 |
| Width(mm) | 45 |
| Depth(mm) | 83.7 |
| Coil Operating band %Uc (Pick up) | 55 - 120 % |
| Coil Operating band %Uc (Drop off) | 30 - 50 % |
| Pick up VA consumption | 68VA |
| Hold on VA consumption | 11VA |
