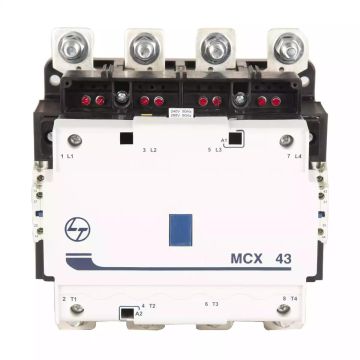

MCX Contactor 400A 4P 415V AC In Built 2NO+2NC AC-1 220V AC Coil 50/60 Hz

In stock
SKU
CS97025KOOO
Regular Price ₹65,000.00 Special Price ₹53,690.00
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
MCX Contactor 400A 4P 415V AC In Built 2NO+2NC AC-1 220V AC Coil 50/60 Hz

HSN Code - 85369090

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • MCX range of 4 pole contactors is available from 16A to 800A AC-1.
  • The contactors are widely used in conjunction with auto source transfer controller for transfer of power from mains to backup supply.
Technical Specifications
  • Ambient temperature
    -20 to 60 degree C
  • Rated impulse withstand voltage (Uimp)
    8kV
  • Rated Insulation Voltage Ui (V)
    1000V
  • Conformance to Standards
    IS/IEC 6094741, IEC 6094741
  • Coil Voltage
    220 V AC
  • Rated operational current at 415V
    400A (AC1)
  • Discount Percentage
    Between 0-10 %
  • No. of Poles
    4P
  • Height(mm)
    275
  • Width(mm)
    248
  • Depth(mm)
    221
  • Coil Operating band %Uc (Pick up)
    80 - 110 %
  • Coil Operating band %Uc (Drop off)
    35 - 65 %
  • Pick up VA consumption
    2100VA
  • Hold on VA consumption
    95VA
