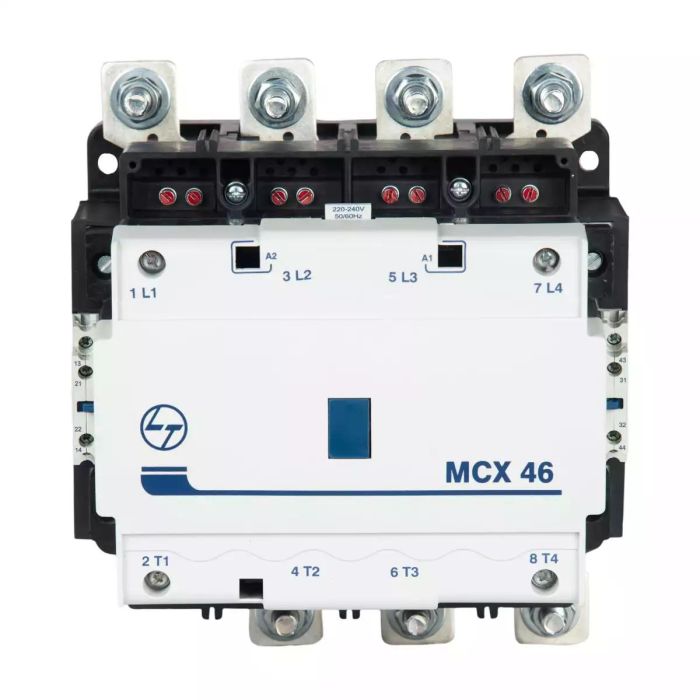

MCX Contactor 700A 4P 415V AC In Built 2NO+2NC AC-1 415V AC Coil 50/60 Hz

CS97028DOOO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • MCX range of 4 pole contactors is available from 16A to 800A AC-1.
  • The contactors are widely used in conjunction with auto source transfer controller for transfer of power from mains to backup supply.

Product Details

Ambient temperature -20 to 60 degree C
Rated impulse withstand voltage (Uimp) 8kV
Rated Insulation Voltage Ui (V) 1000V
Conformance to Standards IS/IEC 6094741, IEC 6094741
Coil Voltage 415 V AC
Rated operational current at 415V 700A (AC1)
Discount Percentage Between 0-10 %
No. of Poles 4P
Height(mm) 275
Width(mm) 248
Depth(mm) 221
Coil Operating band %Uc (Pick up) 80 - 110 %
Coil Operating band %Uc (Drop off) 35 - 65 %
Pick up VA consumption 1000VA
Hold on VA consumption 25VA
