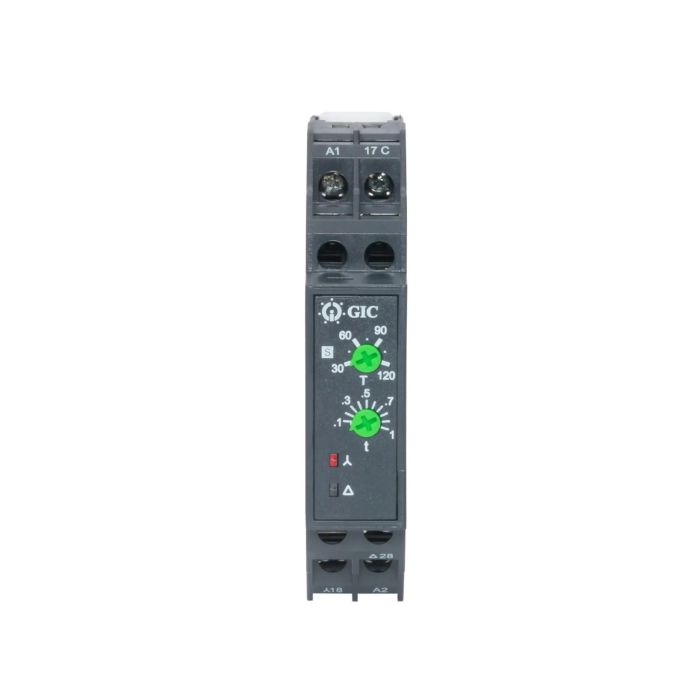

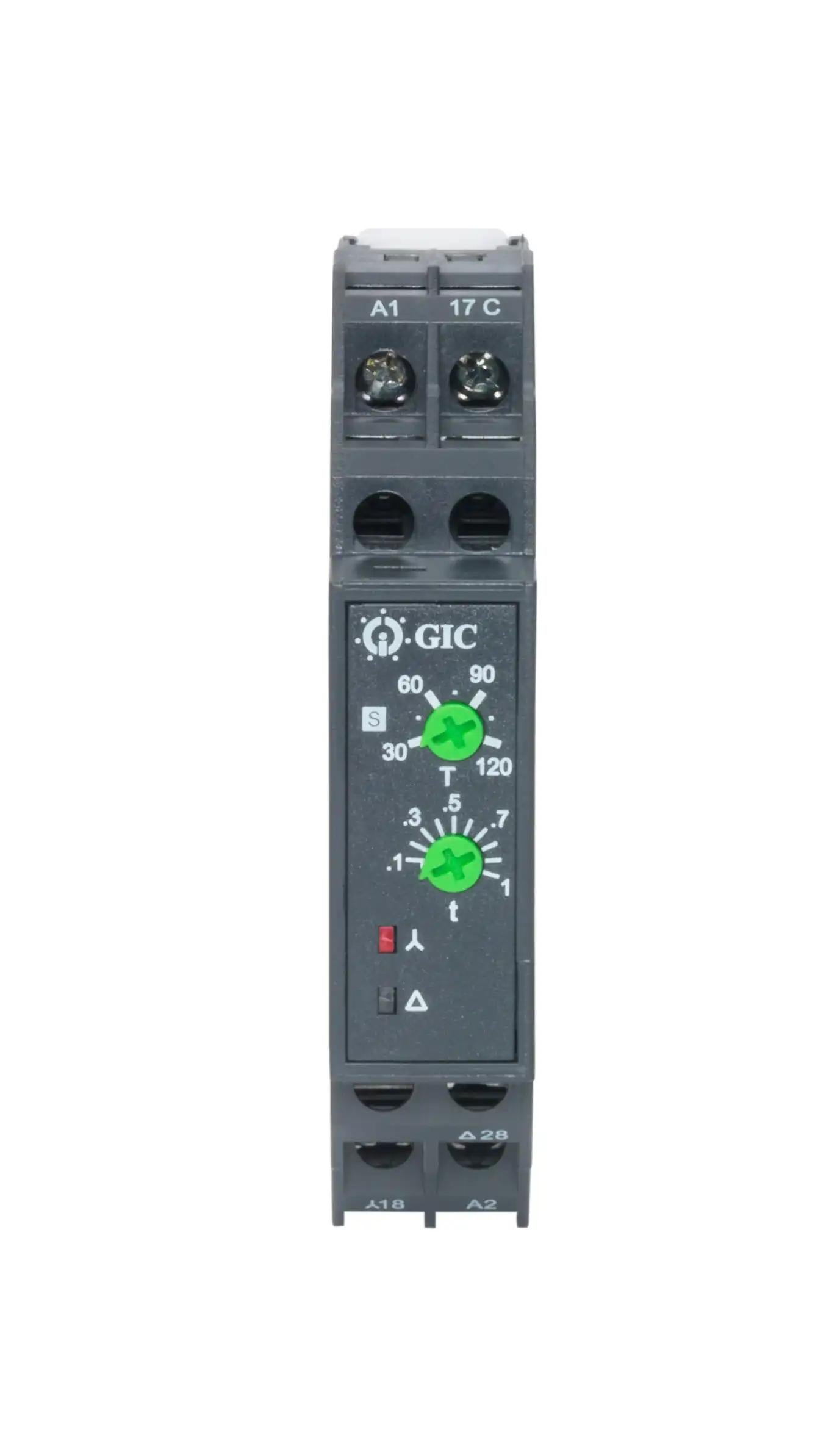

Micon 175 SD Timer 240-415VAC, 60ms paus
Share
In stock
SKU
14SDT1S
Regular Price
₹1,360.00
Price
₹1,360.00
21% Off
( Prices are all inclusive of taxes )Micon 175 SD Timer 240-415VAC, 60ms paus
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
Timers are used to control the start and end of a specific event which can be set as per required time Delay which is defined as the controlled period between the functioning of two events. Features 17.5mm Din Mount Housing
Voltage range of 12 VAC/DC to 240VAC/DC and 240-415 VAC.
Time range of 0.1 s to 999 days
ON Delay, Star delta, Cyclic ON/OFF, OFF delay functions
1CO/2CO arrangements Applicatioon Motor Starter Panels/Process control Panels
-
Rated operational voltage (Ue)240 - 415 VAC
-
Conformance to IEC standardsIEC-60947-5-1
-
Internationals & Environemnt Compliances ConformanceCE, & RoHS
-
Width(mm)17.5mm
-
IP rating65
-
time range3 sec - 30 sec
-
no of contacts1 C/O (Star)+1 C/O (Delta)
-
Type Of MountingDin Mounting
-
TypeStar Delta Timer
-
Categoryanalog
