Electromagnetic relays are vital circuit elements in electrical and electronic applications. They play very vital roles in these systems. These devices operate via a coil that handles high-power circuits, and these are controlled through low-power signals via the contacts.

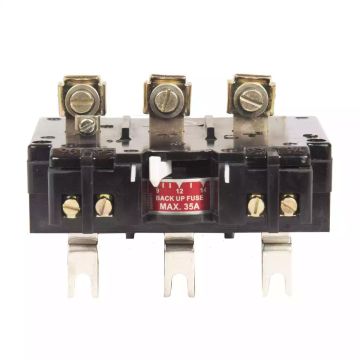

Lauritz Knudsen ML 2/3, Thermal Overload Relay, Class 10, 415V AC| Relay Range: 13-21A | Directly Operated | Durable Overload Relay for Industrial Environments
SKU :
SS91859OOCO
Lauritz Knudsen ML 2/3, Thermal Overload Relay, Class 10, 415V AC| Relay Range: 13-21A | Directly Operated | Durable Overload Relay for Industrial Environments
Cat. No./SKU:
SS91859OOCO
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
SS91859OOCO
Lauritz Knudsen ML 2/3, Thermal Overload Relay, Class 10, 415V AC| Relay Range: 13-21A | Directly Operated | Durable Overload Relay for Industrial Environments
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
M.R.P.:
Incl. Tax
Free shipping on orders above ₹1000
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Minimum quantity allowed :
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
M.R.P.:
₹9,930.00
₹7,684.16
M.R.P.:
Incl. Tax
To View the best prices please Log In / Register
Available
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Minimum quantity allowed :
Lauritz Knudsen ML 2/3, Thermal Overload Relay, Class 10, 415V AC| Relay Range: 13-21A | Directly Operated | Durable Overload Relay for Industrial Environments
M.R.P.:
₹9,930.00
₹7,684.16
M.R.P.:
- Description
- Specifications
- Documents
- Reviews
Description
About the Product
Lauritz Knudsen compatible ML 2/3 Thermal Overload Relay 13–21A 415V AC Class 10 is a motor protection device engineered to safeguard electrical motors from overload conditions. It is widely used in motor starter systems to ensure consistent & safe operation in industrial environments.
How the Mechanism Works
The relay operates using a thermal sensing mechanism that continuously monitors current flowing through the motor circuit. When the current exceeds the adjustable range (13–21A) for a defined duration, the internal thermal element heats up & trips, disconnecting the circuit to prevent motor overheating & damage.
Electrical Configuration
Rated for an adjustable current range of 13–21A & 415V AC supply, the relay incorporates Class 10 tripping characteristics. This ensures reliable & timely disconnection during overload conditions. It is typically used in combination with contactors in motor control panels.
• Safety / protection aspects
• The relay provides effective protection against sustained overload, helping prevent motor winding damage, excessive heat buildup, & potential system failures. It enhances operational safety & improves system reliability.
Construction & Design
A compact control module combines sensing or coil elements, switching contacts, adjustment or indication features, & accessible terminals.
Safety & Protection
Use within the stated ratings & coordinate the control circuit with suitable isolation & overcurrent protection before installation or service.
Mounting & Durability
Designed for seamless integration with compatible contactors, it supports standard panel mounting. The robust construction ensures durability & consistent performance in demanding industrial applications.
Application Domains
Suitable for medium to high-load motor applications such as pumps, compressors, conveyors, & industrial machinery requiring dependable overload protection.
Key Features
• Adjustable current range: 13–21A
• Rated for 415V AC operation
• Class 10 tripping characteristic for reliable protection
• Thermal overload sensing mechanism
• Compatible with motor starters & contactors
• Durable construction for industrial applications
Applications
• Motor starter panels
• Pumps & compressors
• Conveyor systems
• Industrial automation equipment
• HVAC & machinery protection
FAQs
1. What is a thermal overload relay used for?
Ans: It is used to protect motors by disconnecting the circuit when excessive current is detected.
2. What does Class 10 mean?
Ans: Class 10 defines the tripping time, ensuring disconnection within a standard time under overload conditions.
3. What is the current range of this relay?
Ans: It operates within an adjustable range of 13–21A.
4. Is this compatible with contactors?
Ans: Yes, it is designed for use with contactors in motor starter circuits.
5. What voltage does it support?
Ans: It is rated for 415V AC systems.
6. Where can it be used?
Ans: It is suitable for industrial & commercial motor protection applications.
Overview
| Ambient temperature | -5 to 55 Degree C |
|---|---|
| Mounting | Direct |
| Rated operational current at 415V | 2A |
| Rated Insulation Voltage Ui (V) | 500V |
| Built-in contacts | 1NO |
| Start/Off/Reset | 1 Start & 1 OFF/Reset |
| Trip Class | 10A |
| Rated impulse withstand voltage (Uimp) | 6kV |
| Conformance to Standards | IS/IEC 60947-4-1, IEC 60947-4-1 |
| Mechanical Life (No. of operating cycles) | 30 Operations/Hr |
| Discount Percentage | Between 0-10 % |
