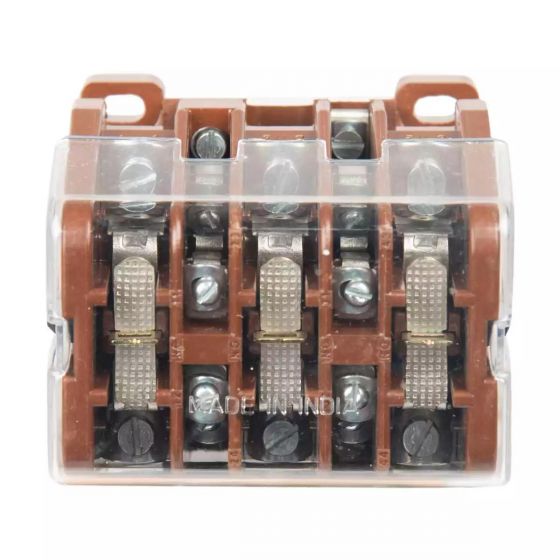

Lauritz Knudsen ML Power Contactor 25A, 3 Pole, 24V AC | Type - ML 1.5 | AC1 Rating - 25A | AC3 Rating - 25A | with 2 Inbuilt + 2 in auxilary contacts
SKU :
SS91851GOOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
SS91851GOOO
Lauritz Knudsen ML Power Contactor 25A, 3 Pole, 24V AC | Type - ML 1.5 | AC1 Rating - 25A | AC3 Rating - 25A | with 2 Inbuilt + 2 in auxilary contacts
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹5,430.00
₹5,125.92
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Lauritz Knudsen ML Power Contactor 25A, 3 Pole, 24V AC | Type - ML 1.5 | AC1 Rating - 25A | AC3 Rating - 25A | with 2 Inbuilt + 2 in auxilary contacts
₹5,430.00
₹5,125.92
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen ML Power Contactors are suitable for applications involving harsh environments.
- They are used in motor feeder applications in steel industries, material handling plants etc.
- The series includes a wide range from 25A to 300A (AC-3) and are complemented by ML Thermal Overload Relays
Overview
| Ambient temperature | -20 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 3000 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 500V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 24 V AC |
| Rated operational current at 415V | 25A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 66 |
| Width(mm) | 73 |
| Depth(mm) | 85.5 |
| Rated kW | 11kW |
| Rated making capacity | 252A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 210A |
| Mechanical Life | 15 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 60VA |
| Hold on VA consumption | 15VA |
