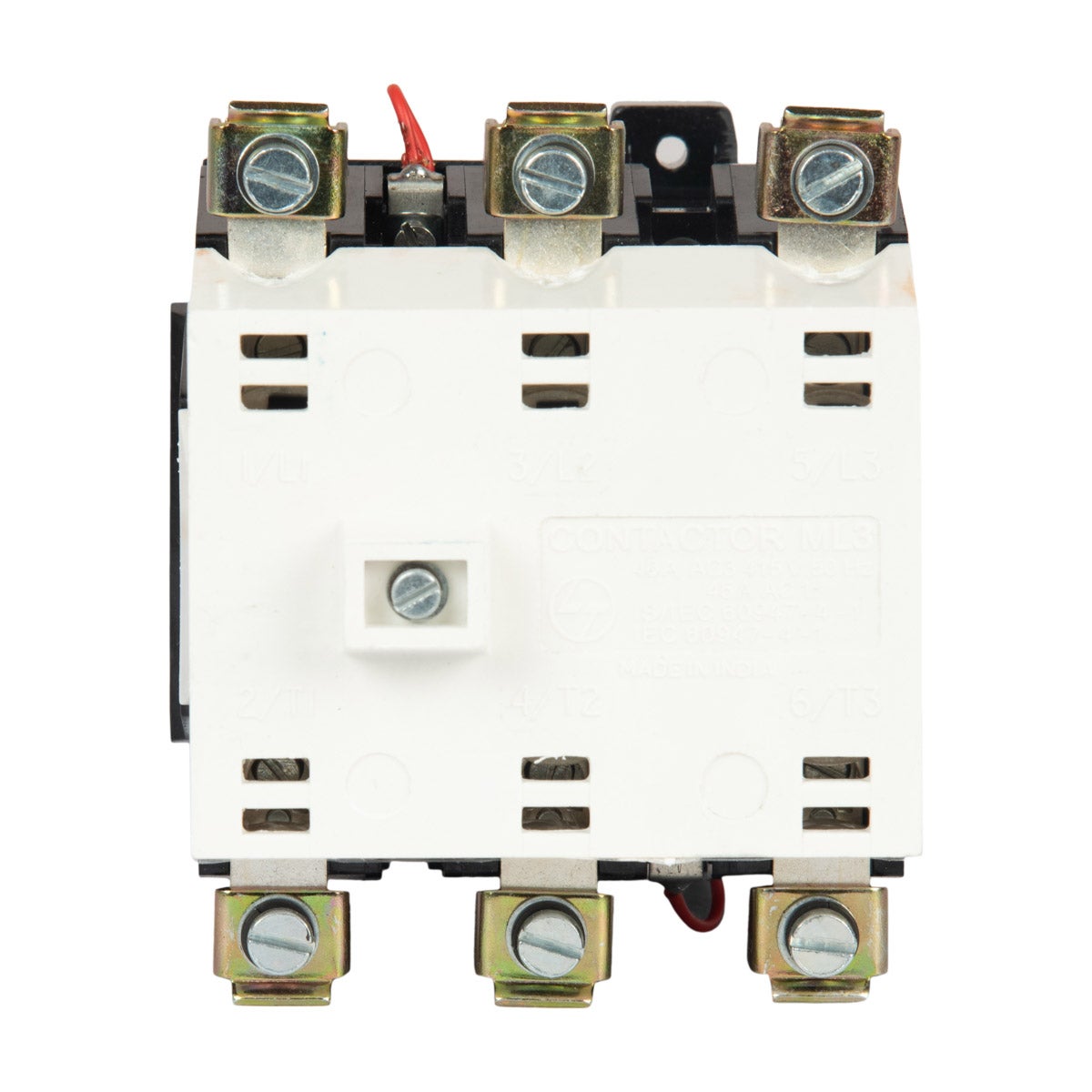

ML Contactor 40A 3P 415V AC In Built 2NO+2NC AC-3 525V AC Coil 50 Hz
In stock
SKU
SS90721MOOO
Regular Price
Price:
₹12,300.00
Special Price
Price:
₹8,797.50
28% Off
( Prices are all inclusive of taxes )
ML Contactor 40A 3P 415V AC In Built 2NO+2NC AC-3 525V AC Coil 50 Hz
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T SWITCHGEAR until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
No sellers found for this product.
ML Power Contactors are suitable for applications involving harsh environments. They are used in motor feeder applications in steel industries, material handling plants etc. The series includes a wide range from 25A to 300A (AC-3) and are complemented by ML Thermal Overload Relays
| Ambient temperature | -20 to 55 degree C |
| Mechanical Life (No. of operating cycles) | 2000 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 500V |
| Conformance to Standards | IS/IEC 60947-4-1, IEC 60947-4-1 |
| Coil Voltage | 525V AC Coil |
| Rated operational current at 415V | 40A |
| No. of Poles | 3P |
| Dimension 1 | 110 |
| Dimension 2 | 94 |
| Dimension 3 | 115 |
| Rated kW | 22kW |
| Rated making capacity | 480A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 400A |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 120VA |
| Hold on VA consumption | 20VA |
