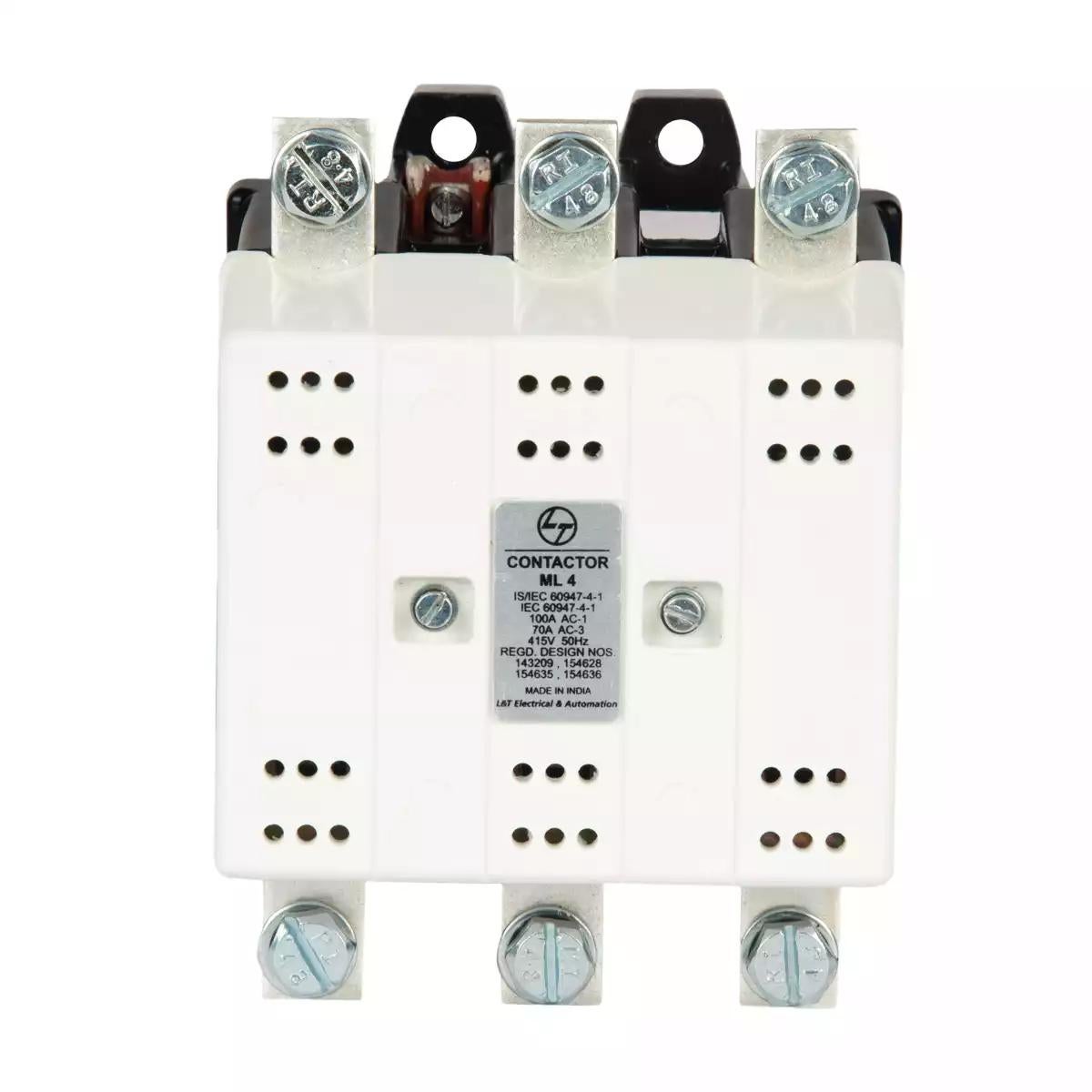

Lauritz Knudsen ML Contactor 70A 3P 415V AC In Built 2NO+2NC AC-3 110V AC Coil 50 Hz
SS90910AOOO
₹22,110.00
₹16,175.68
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
SS90910AOOO
Lauritz Knudsen ML Contactor 70A 3P 415V AC In Built 2NO+2NC AC-3 110V AC Coil 50 Hz
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Lauritz Knudsen ML Contactor 70A 3P 415V AC In Built 2NO+2NC AC-3 110V AC Coil 50 Hz
₹22,110.00
₹16,175.68
Description
- ML Power Contactors are suitable for applications involving harsh environments.
- They are used in motor feeder applications in steel industries, material handling plants etc.
- The series includes a wide range from 25A to 300A (AC-3) and are complemented by ML Thermal Overload Relays
Product Details
| Ambient temperature | -20 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 1200 Operations/Hr |
| Rated Insulation Voltage Ui (V) | 660V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 110 V AC |
| Rated operational current at 415V | 70A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 142 |
| Width(mm) | 110 |
| Depth(mm) | 136 |
| Rated kW | 37kW |
| Rated making capacity | 840A |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Rated breaking capacity | 700A |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 15 - 65 % |
| Pick up VA consumption | 450VA |
| Hold on VA consumption | 50VA |
