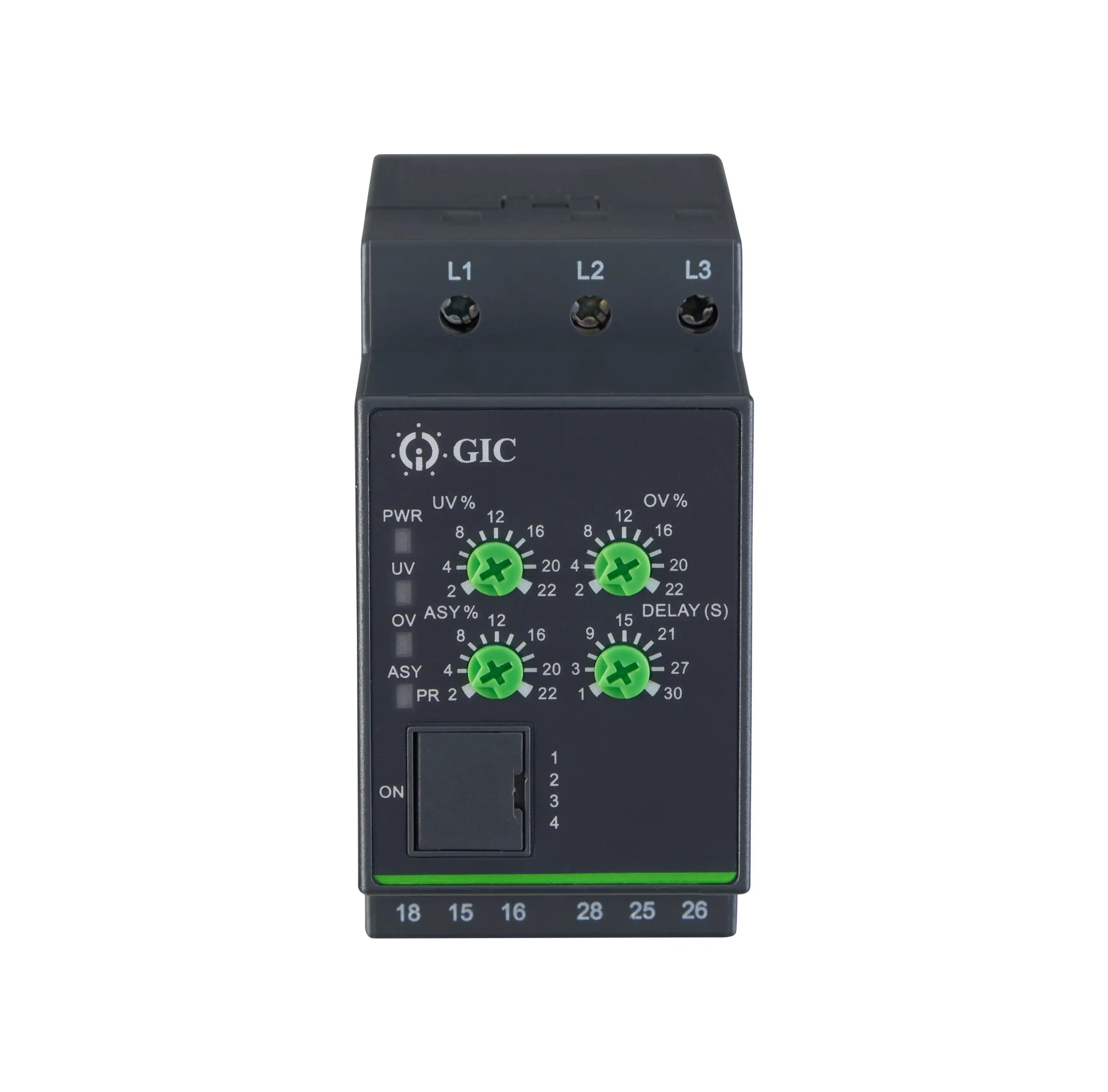

MMR Relay500-1000VAC (Line Voltage),2C/O

SMB110
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

Monitoring Relay is a protective control device which is used to receive input voltage signals. It monitors the voltage signals and raises an output in case threshold is reached. Features Protects against Phase Loss, Phase Sequence & phase to phase unbalance and neutral loss Can be configured for 3 phase 3 wire Adjustable ON delay and Trip time delay LED Indications for Power ON, UV, OV and phase faults 2 C/O Configuration Wide range of supply Voltage: 500VAC -1000VAC Application: MCC Panels/Process automation panels

Product Details

Rated operational voltage (Ue) 500V -1000V AC
Conformance to IEC standards IEC-60947-5-1
Internationals & Environemnt Compliances Conformance CE, & RoHS
IP rating 65
time range Power ON delay ( 5s Fixed),ON delay (1-30 sec or Fixed), OFF delay (0.1 - 30 sec or Fixed)
no of contacts 2
Phase Symmetry Voltage +_ 1% of set value
Type of Sysytem (phases) 3Ph, 3W
Type Of Mounting Din Mounting
Type Phase loss+ Phase Sequence +Phase Asysmetery + UV + OV+3 phase interruption
