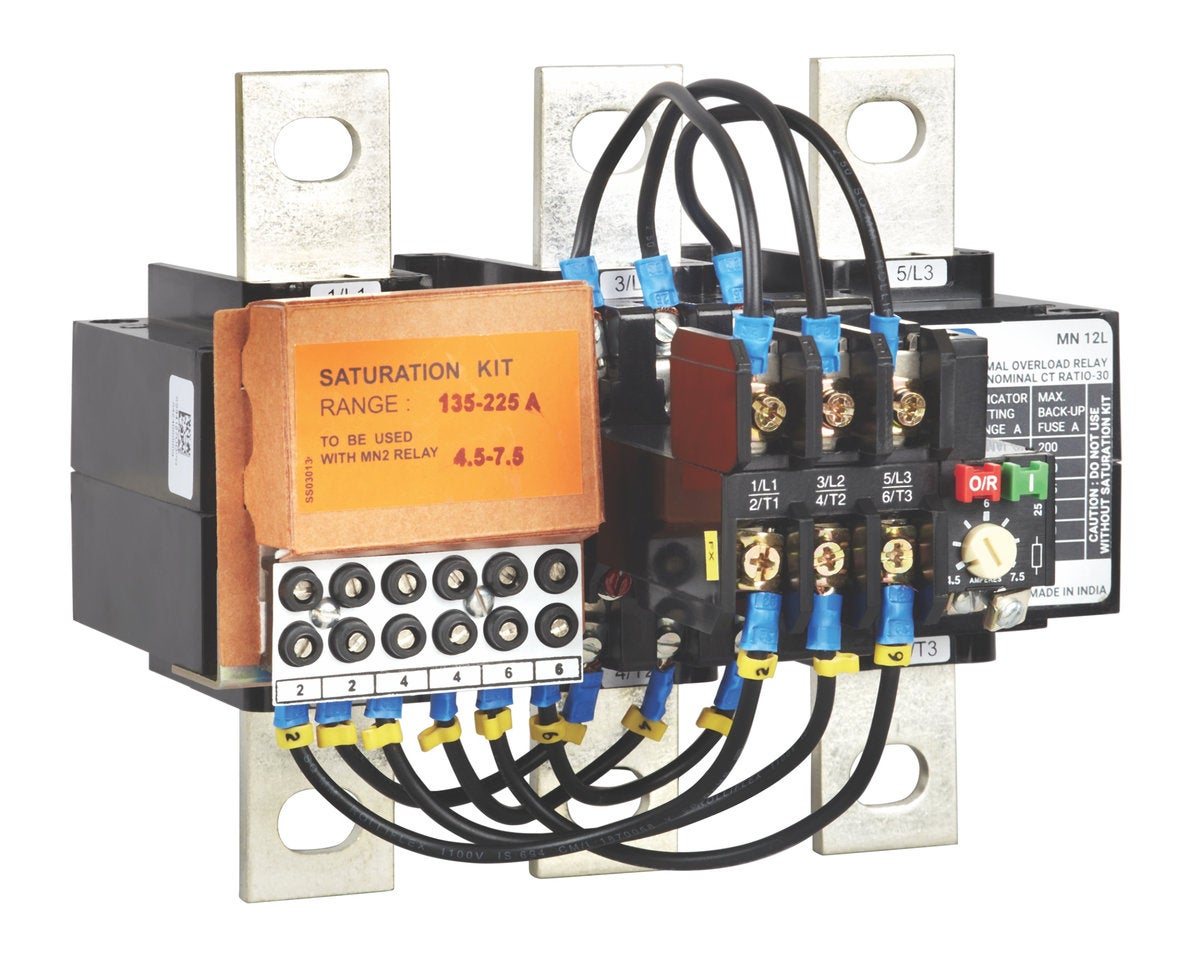

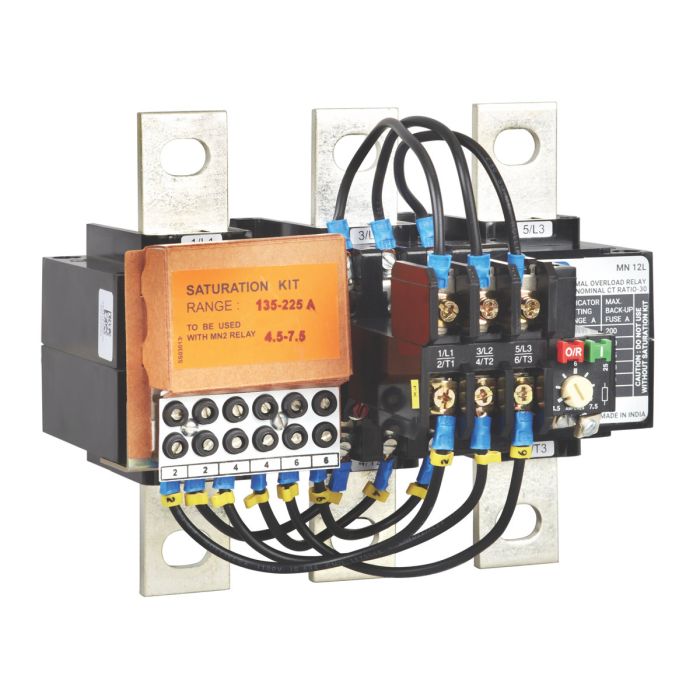

MN 12L Thermal Overload Relay 340-570A 415V AC Class 10A

SS94127OOSO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • MN Thermal Overload Relays, available from 0.2A to 570A complement the MNX range of power contactors.
  • The relays are ambient temperature compensated, and the unique double slide mechanism provides reliable protection against single phasing.
  • MN12L relays with trip class 20 are specially designed for long starting time applications.

Product Details

Ambient temperature -5 to 55 Degree C
Mounting Separate
Rated operational current at 415V 2A
Rated Insulation Voltage Ui (V) 690V
Built-in contacts 2NO + 1NC
Start/Off/Reset 1 Start & 1 OFF/Reset
Trip Class 30A
Rated impulse withstand voltage (Uimp) 6kV
Conformance to Standards IS/IEC 60947-4-1, IEC 60947-4-1
Mechanical Life (No. of operating cycles) 30 Operations/Hr
Discount Percentage Between 0-10 %
