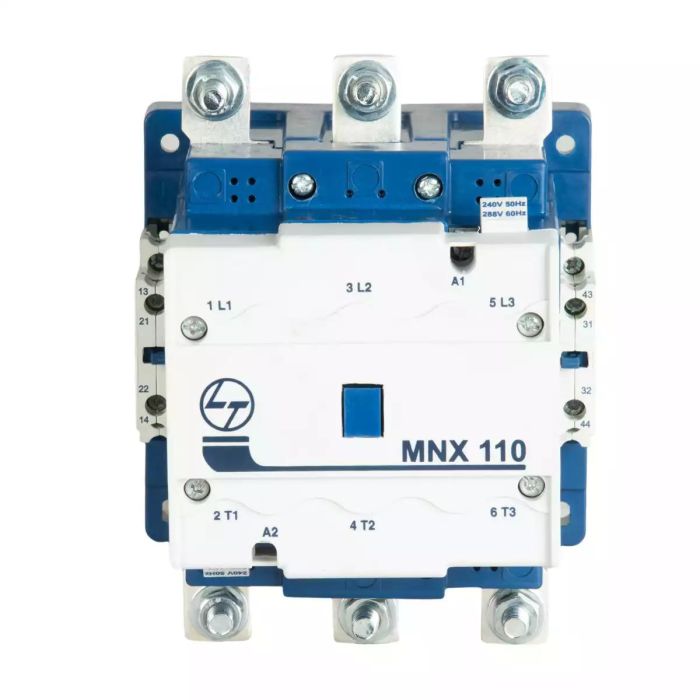

Lauritz Knudsen MNX Power Contactor 110A, 3 Pole, 110V AC | AC1 Rating - 160A | AC3 Rating - 110A | with 2 Inbuilt + 2 in auxilary contacts | Electrical Coil | Click fit type construction up to 40A
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen MNX Power Contactor 110A, 3 Pole, 110V AC | AC1 Rating - 160A | AC3 Rating - 110A | with 2 Inbuilt + 2 in auxilary contacts | Electrical Coil | Click fit type construction up to 40A
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen MNX Contactor 110A 3P 415V AC (AC 3) with 110V AC Coil (50–60 Hz) is a high-capacity electrical switching device designed for efficient & reliable control of large electric motors & inductive loads in industrial & commercial environments. With a 110A current rating & a 3 pole configuration, it is ideally suited for heavy-duty three-phase motor control applications.
Designed for AC 3 duty operations, this contactor is specifically engineered to handle inductive loads such as motors, compressors, pumps, & conveyors, including high inrush current during motor startup & stable switching during operation. The MNX series is known for its compact design, robust performance, & long service life, making it suitable for demanding automation & control systems.
The 110V AC coil (50–60 Hz) ensures compatibility with standard industrial control circuits, enabling stable & efficient operation across a range of automation applications. Built using high-quality materials & advanced engineering, this contactor delivers consistent switching performance, durability, & reliability under heavy-duty operating conditions.
Purpose & Function
This contactor is engineered for efficient motor control & industrial switching:
• Controls large three-phase motors & inductive loads
• Handles high inrush current during motor startup
• Provides reliable switching & operational stability
• Supports efficient automation & control systems
• Enhances industrial process efficiency & performance
Electrical Configuration
• Product type: Contactor
• Model: MNX
• Rated current: 110A
• Number of poles: 3P
• Voltage rating: 415V AC
• Utilization category: AC 3 (motor loads)
• Coil voltage: 110V AC
• Frequency: 50–60 Hz
• Function: Motor switching, control, & protection
Construction & Design
Engineered for robust industrial applications:
• High-quality contacts for efficient electrical conduction
• Compact & space-saving design for panel installation
• Durable construction ensures long operational life
• Optimized switching mechanism for reliable performance
• Developed for high mechanical & electrical endurance
Safety & Protection
• Ensures safe motor starting & stopping
• Reduces risk of electrical faults & equipment damage
• Provides stable performance under inductive loads
• Enhances protection of industrial control systems
• Improves overall system reliability & safety
Mounting & Installation
• Suitable for panel mounting
• Compact design for efficient space utilization
• Easy & secure installation process
• Simplified wiring & integration
• Ensures stable electrical connections
Application Domains
• Motor control centers (MCC panels)
• Industrial automation systems
• Pumps, compressors, & conveyors
• HVAC systems & machinery control
• Manufacturing & processing industries
• Electrical control & protection systems
Key Features
• 110A rated MNX contactor
• 3-pole configuration for motor control
• AC 3 duty for inductive applications
• 110V AC coil (50–60 Hz)
• Compact, durable, & industrial-grade design
Applications
• Large motor switching & control
• Industrial automation & process systems
• Pump & compressor applications
• Conveyor & machinery operations
• Heavy-duty electrical systems
FAQs
1. What is an AC 3 contactor?
Ans: An AC 3 contactor is designed for switching inductive loads such as motors, handling high starting currents safely.
2. What does 3P mean?
Ans: It indicates a three-pole contactor for controlling three-phase circuits.
3. What is the coil voltage?
Ans: This model operates with a 110V AC coil (50–60 Hz).
4. Where is this contactor used?
Ans: It is used in motor control panels, industrial automation systems, & machinery applications.
5. Is it suitable for heavy-duty motors?
Ans: Yes, it is designed for high-capacity motor control & inductive loads.
6. What is MNX series known for?
Ans: The MNX series is known for compact design, durability, & reliable industrial performance.
7. Is installation easy?
Ans: Yes, it is designed for quick, secure, & efficient installation in electrical panels.
Overview
| Ambient temperature | -20 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 3600 Cy/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 110 V AC |
| Rated operational current at 415V | 110A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 175 |
| Width(mm) | 137 |
| Depth(mm) | 152 |
| Rated kW | 55kW |
| Rated making capacity | 1680VA |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Rated breaking capacity | 1400VA |
| Mechanical Life | 10 Million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 550VA |
| Hold on VA consumption | 36VA |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
