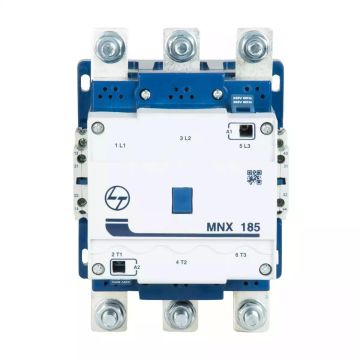

MNX Contactor 185A 3P 415V AC AC-3 110V AC Coil 50/60 Hz
In stock
SKU
CS94139AOOO
Regular Price
₹35,700.00
Special Price
₹29,488.20
17% Off
( Prices are all inclusive of taxes )MNX Contactor 185A 3P 415V AC AC-3 110V AC Coil 50/60 Hz
HSN Code - 85369090
HSN Code - 85369090
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
- MNX power contactor are mainly used in motor feeder ad control system applications.
- The range is availabe from 9A to 650A (AC-3) and provides a relaible performance across diverse condition like high ambient temperature, humidity etc.
- Standardized accessories and spares are available for the entire range
-
Ambient temperature-20 to 55 degree C
-
Mechanical Life (No. of operating cycles)3600 Cy/Hr
-
Rated impulse withstand voltage (Uimp)8kV
-
Rated Insulation Voltage Ui (V)1000V
-
Conformance to StandardsIS/IEC 6094741, IEC 6094741
-
Coil Voltage110 V AC
-
Rated operational current at 415V185A
-
Discount PercentageBetween 0-10 %
-
No. of Poles3P
-
Height(mm)208.2
-
Width(mm)147
-
Depth(mm)181
-
Rated kW90kW
-
Rated making capacity2220A
-
Coil Operating band %Uc (Pick up)80 - 110 %
-
Rated breaking capacity1850A
-
Mechanical Life10 Million
-
Coil Operating band %Uc (Drop off)35 - 65 %
-
Pick up VA consumption960VA
-
Hold on VA consumption56VA
