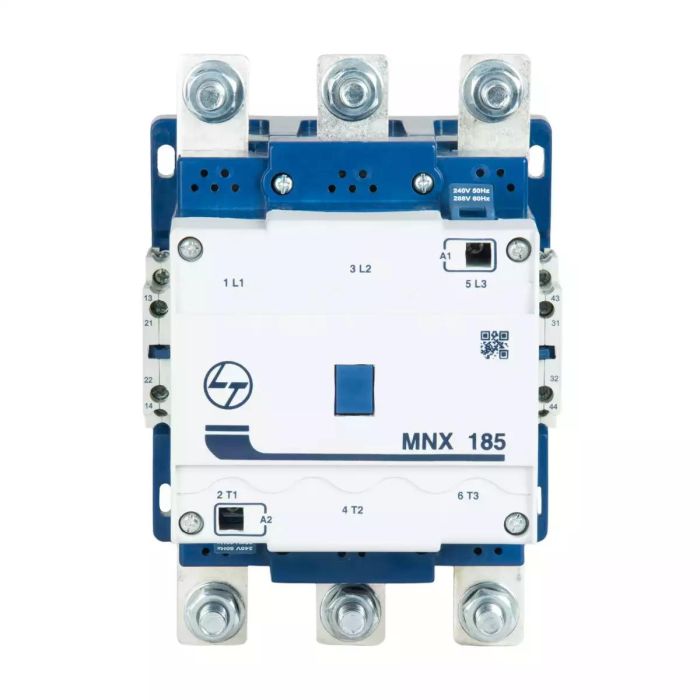

Lauritz Knudsen MNX Contactor 185A 3P 415V AC AC-3 415V AC Coil 50/60 Hz
CS94139DOOO
₹39,360.00
₹21,906.70
Incl. Tax
To View the best prices please Log In/register
Loading...
All Sellers
CS94139DOOO
Lauritz Knudsen MNX Contactor 185A 3P 415V AC AC-3 415V AC Coil 50/60 Hz
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Lauritz Knudsen MNX Contactor 185A 3P 415V AC AC-3 415V AC Coil 50/60 Hz
₹39,360.00
₹21,906.70
Description
- Lauritz Knudsen MNX power contactor are mainly used in motor feeder ad control system applications.
- The range is availabe from 9A to 650A (AC-3) and provides a relaible performance across diverse condition like high ambient temperature, humidity etc.
- Standardized accessories and spares are available for the entire range
Product Details
| Ambient temperature | -20 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 3600 Cy/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 415 V AC |
| Rated operational current at 415V | 185A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 208.2 |
| Width(mm) | 147 |
| Depth(mm) | 181 |
| Rated kW | 90kW |
| Rated making capacity | 2220A |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Rated breaking capacity | 1850A |
| Mechanical Life | 10 Million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 960VA |
| Hold on VA consumption | 56VA |
