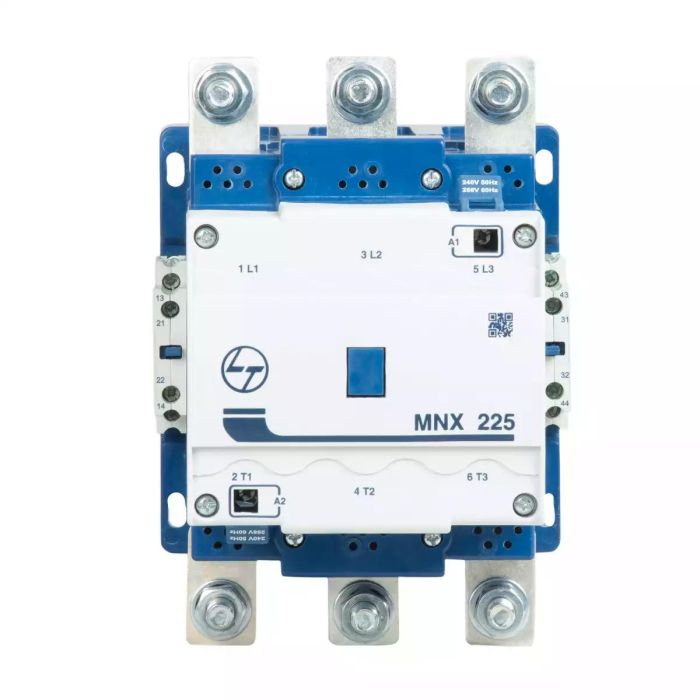

Lauritz Knudsen MNX Power Contactor 225A, 3 Pole, 110V AC | AC1 Rating - 300A | AC3 Rating - 225A | with 2 Inbuilt + 2 in auxilary contacts | Electrical Coil | Click fit type construction up to 40A
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen MNX Power Contactor 225A, 3 Pole, 110V AC | AC1 Rating - 300A | AC3 Rating - 225A | with 2 Inbuilt + 2 in auxilary contacts | Electrical Coil | Click fit type construction up to 40A
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen MNX Contactor 225A 3P 415V AC (AC 3) with 110V AC Coil (50–60 Hz) is a premium high-capacity industrial switching device engineered for efficient & reliable control of very large electric motors & heavy inductive loads in demanding industrial environments. With a 225A current rating & a 3 pole configuration, it is ideally suited for ultra heavy-duty three-phase motor control applications in large-scale automation systems.
Designed for AC 3 duty operations, this contactor is specifically built to handle inductive loads such as motors, compressors, pumps, conveyors, & heavy machinery, including extremely high inrush currents during motor startup & consistent switching during continuous operation. The MNX series is well known for its compact yet rugged design, high durability, & extended service life, making it a reliable choice for critical industrial control applications.
The 110V AC coil (50–60 Hz) provides compatibility with standard control circuits, ensuring stable & efficient operation in industrial panels. Built using high-quality materials & advanced engineering, this contactor delivers consistent switching performance, excellent electrical endurance, & dependable operation even under extreme load conditions.
Purpose & Function
This contactor is engineered for ultra heavy-duty motor control & industrial automation:
• Controls very large three-phase motors & inductive loads
• Handles extremely high inrush current during startup
• Provides reliable switching & operational stability
• Supports large-scale automation & control systems
• Enhances efficiency & performance of industrial processes
Electrical Configuration
• Product type: Contactor
• Model: MNX
• Rated current: 225A
• Number of poles: 3P
• Voltage rating: 415V AC
• Utilization category: AC 3 (motor loads)
• Coil voltage: 110V AC
• Frequency: 50–60 Hz
• Function: Motor switching, control, & protection
Construction & Design
Engineered for extreme industrial performance:
• High-quality contacts for superior electrical conductivity
• Heavy-duty construction for long operational life
• Compact & efficient panel design
• Precision switching mechanism for smooth operation
• High mechanical & electrical endurance
Safety & Protection
• Ensures safe motor starting & stopping
• Minimizes risk of electrical faults & equipment damage
• Provides stable switching under heavy inductive loads
• Enhances safety of industrial control systems
• Improves overall system reliability & protection
Mounting & Installation
• Suitable for panel mounting
• Compact structure for efficient space utilization
• Easy & secure installation process
• Simplified wiring & integration
• Ensures strong & stable electrical connections
Application Domains
• Motor control centers (MCC panels)
• Heavy & large-scale industrial automation systems
• Pumps, compressors, & conveyor systems
• HVAC systems & large machinery control
• Manufacturing & heavy processing industries
• High-capacity electrical control systems
Key Features
• 225A rated MNX contactor
• 3-pole configuration for ultra heavy-duty motor control
• AC 3 duty for inductive loads
• 110V AC coil (50–60 Hz)
• Rugged, reliable, & industrial-grade construction
Applications
• Very large motor switching & control
• Industrial automation & process systems
• Pumping & compressor installations
• Conveyor & heavy machinery systems
• High-capacity industrial electrical applications
FAQs
1. What is an AC 3 contactor?
Ans: An AC 3 contactor is designed for switching inductive loads like motors & handling high starting currents safely.
2. What does 3P mean?
Ans: It indicates a three-pole contactor used for controlling three-phase electrical circuits.
3. What is the coil voltage?
Ans: This model operates with a 110V AC coil (50–60 Hz).
4. Where is this contactor used?
Ans: It is used in heavy industrial automation systems, motor control panels, & large machinery applications.
5. Is it suitable for ultra heavy-duty motors?
Ans: Yes, it is specifically designed for very large motors & high-capacity industrial loads.
6. What is MNX series known for?
Ans: The MNX series is known for its compact design, durability, & reliable performance in industrial conditions.
7. Is installation easy?
Ans: Yes, it is designed for quick, secure, & efficient installation in electrical control panels.
Overview
| Ambient temperature | -20 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 3600 Cy/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 110 V AC |
| Rated operational current at 415V | 225A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 208.2 |
| Width(mm) | 147 |
| Depth(mm) | 181 |
| Rated kW | 110kW |
| Rated making capacity | 2400A |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Rated breaking capacity | 2000A |
| Mechanical Life | 10 Million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 960VA |
| Hold on VA consumption | 56VA |
