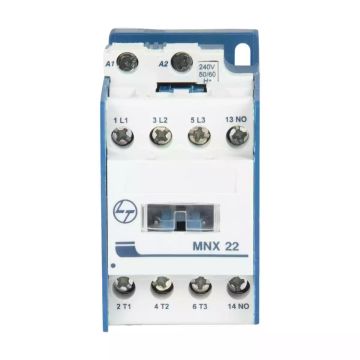

MNX Contactor 22A 3P 415V AC In Built 1NO AC-3 110V AC Coil 50/60 Hz
₹1,640.00
₹1,064.36
Description
- MNX power contactor are mainly used in motor feeder ad control system applications.
- The range is availabe from 9A to 650A (AC-3) and provides a relaible performance across diverse condition like high ambient temperature, humidity etc.
- Standardized accessories and spares are available for the entire range
Product Details
| Ambient temperature | -20 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 7200 Cy/hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 110 V AC |
| Rated operational current at 415V | 22A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 83 |
| Width(mm) | 45 |
| Depth(mm) | 88 |
| Rated kW | 11kW |
| Rated making capacity | 450A |
| Coil Operating band %Uc (Pick up) | 65 - 120 % |
| Rated breaking capacity | 250A |
| Mechanical Life | 15 Million |
| Coil Operating band %Uc (Drop off) | 35 - 50 % |
| Pick up VA consumption | 68VA |
| Hold on VA consumption | 11VA |
