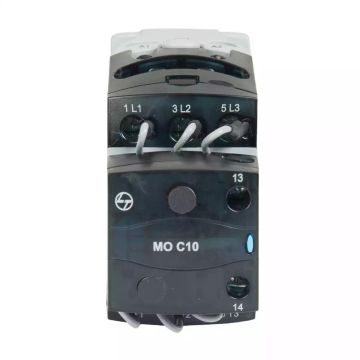

Lauritz Knudsen MO C Capacitor Duty Contactor 10kVAr 3P 440V AC In Built 1NO AC-6b 240V AC Coil 50/60 Hz
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen MO C Capacitor Duty Contactors are specially designed for capacitor switching applications.
- As capacitor switching is associated with high inrush current, the contactors are provided with damping resistors which limit the value of inrush current to a safe value.
- The contactors are used in APFC panels for switching power capacitors depending upon the amount of reactive power compensation required.
- The MO C contactors are 3-pole contactors are of the block type design - Control circuit: AC operated and suitable for 50/60Hz frequency - Accessories: a wide range of accessories is available.
Overview
| Ambient temperature | -5 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 240 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741, EN 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 13.1A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 87 |
| Width(mm) | 45 |
| Depth(mm) | 133.5 |
| Rated kW | 10kVAr |
| Coil Operating band %Uc (Pick up) | 65 - 110 % |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 77VA |
| Hold on VA consumption | 9VA |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for 18* months from the date of purchase.
2. For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
3. Defects due to faulty workmanship will be repaired or replaced free of cost at the manufacturer’s discretion.
4. Warranty does not cover defects caused by fire, accidents, poor maintenance, faulty operation, or intentional/accidental damage.
5. Damage to power electronic components like thyristors & IGBTs (due to overtemperature or over-voltage) is not covered.
6. Manufacturer is not liable for incidental, consequential, social, punitive damages or loss of profits.
7. Manufacturer is not responsible for the performance or failure of any other equipment connected to the product.
View LessReviews
