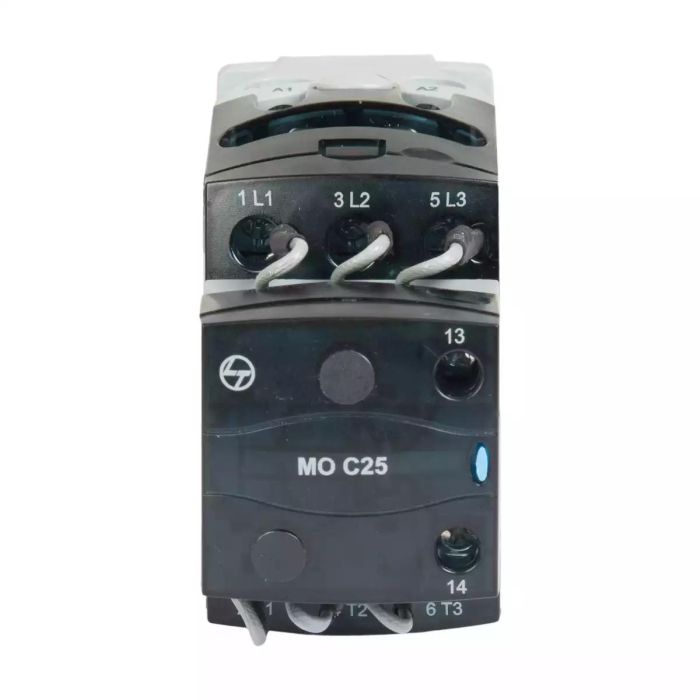

MO C Capacitor Duty Contactor 25kVAr 3P 440V AC In Built 1NO AC-6b 110V AC Coil 50/60 Hz
CS96322AOOO
₹5,180.00
₹3,361.82
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
CS96322AOOO
MO C Capacitor Duty Contactor 25kVAr 3P 440V AC In Built 1NO AC-6b 110V AC Coil 50/60 Hz
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
MO C Capacitor Duty Contactor 25kVAr 3P 440V AC In Built 1NO AC-6b 110V AC Coil 50/60 Hz
₹5,180.00
₹3,361.82
Description
- MO C Capacitor Duty Contactors are specially designed for capacitor switching applications.
- As capacitor switching is associated with high inrush current, the contactors are provided with damping resistors which limit the value of inrush current to a safe value.
- The contactors are used in APFC panels for switching power capacitors depending upon the amount of reactive power compensation required.
- The MO C contactors are 3-pole contactors are of the block type design - Control circuit: AC operated and suitable for 50/60Hz frequency - Accessories: a wide range of accessories is available.
Product Details
| Ambient temperature | -5 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 240 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741, EN 6094741 |
| Coil Voltage | 110 V AC |
| Rated operational current at 415V | 32.8A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 87 |
| Width(mm) | 45 |
| Depth(mm) | 133.5 |
| Rated kW | 25kVAr |
| Coil Operating band %Uc (Pick up) | 65 - 110 % |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 77VA |
| Hold on VA consumption | 9VA |
